Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC628ANJBUZZER PIEZO 42.98MM PNL MNT |
5 |
1+：$50.34400 10+：$39.28560 25+：$37.32704 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC110PBUZZER PIEZO 42.85MM PNL MNT |
4,533 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC110PRBUZZER PIEZO 42.85MM PNL MNT |
2,824 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
ZT120LACTRBUZZER PIEZO 30.74MM PNL MNT |
3,186 | - |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC110NPRBUZZER PIEZO 42.85MM PNL MNT |
1,244 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC250HPRBUZZER PIEZO 42.85MM PNL MNT |
1,005 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 4.5kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 60V, 61cm | 5 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCE028XD2CTBBUZZER PIEZO 42.85MM PNL MNT |
3,799 | - |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone | - | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|

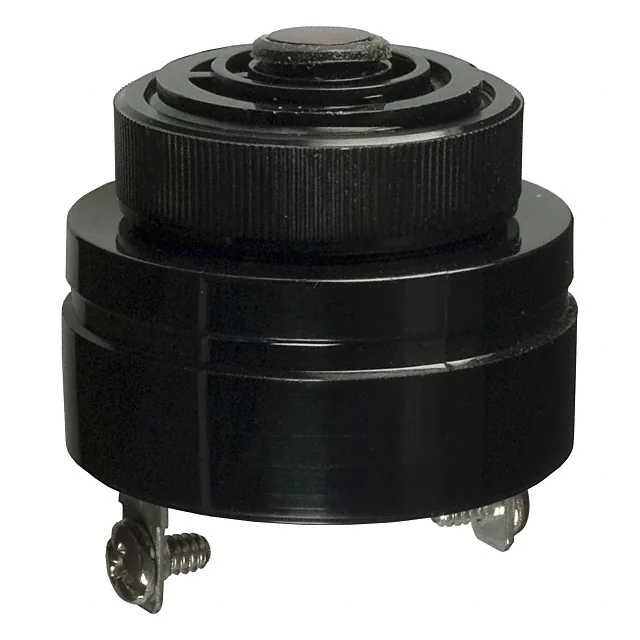

LSC616NBUZZER PIEZO 42.85MM PNL MNT |
1,666 | - |
|
Datasheet | LSC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 80dB @ 6V, 61cm | 40 ~ 60mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCE028LD3DT7BBUZZER PIEZO 42.98MM PNL MNT |
3 |
1+：$54.80800 10+：$42.79440 25+：$38.93504 50+：$36.30032 100+：$35.41160 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Warble, Fast | 7 WPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SC110NJBUZZER PIEZO 42.85MM PNL MNT |
4,447 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
