Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZA028MDCTBUZZER PIEZO 30.74MM PNL MNT |
4,055 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028LDSU2BUZZER PIEZO 30.74MM PNL MNT |
4,060 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Speed Up, Fast | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SCE028LD3VC1SBUZZER PIEZO 42.85MM PNL MNT |
3,135 | - |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE016XD3DB3SBUZZER PIEZO 42.85MM PNL MNT |
2,497 | - |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
ZT028LDIC3GBUZZER PIEZO 24V 30.74MM PNL MNT |
4,311 | - |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Green | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZT120LACTBBUZZER PIEZO 30.74MM PNL MNT |
1,711 | - |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SCE028XD2DB1SBUZZER PIEZO 42.85MM PNL MNT |
2,082 | - |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

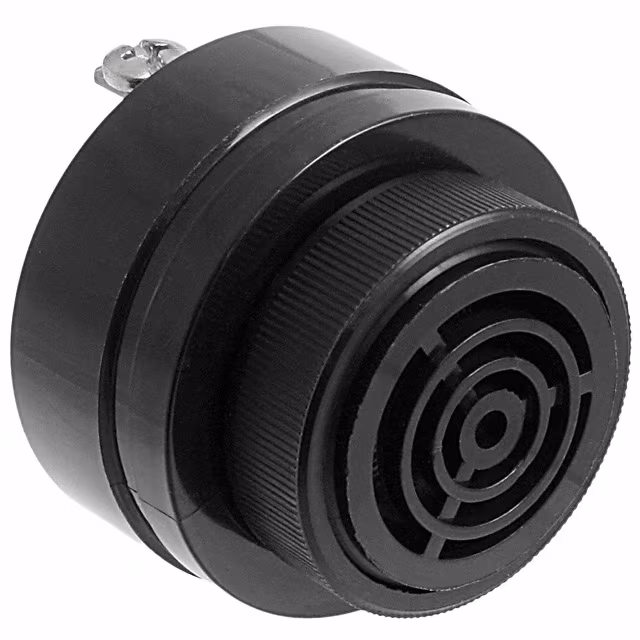

SC628KRBUZZER PIEZO 42.98MM PNL MNT |
1,916 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Short | 0.5 ~ 1.2 PPS | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
ZT028LDFP1RBUZZER PIEZO 30.74MM PNL MNT |
2,337 | - |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Pulse, Fast, Visual Indicator | 10 PPS | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120LAFP1BUZZER PIEZO 30.74MM PNL MNT |
2,897 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
