Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS5GLCSPBUZZER MAGN 5V 23X23MM TH |
2,161 | - |
|
Datasheet | MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 20 ~ 225mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
SCE028LD2CT1BBUZZER PIEZO 42.98MM PNL MNT |
3,253 | - |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
ZA016LDFP1BUZZER PIEZO 30.74MM PNL MNT |
4,782 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZA028SDMP1BUZZER PIEZO 30.74MM PNL MNT |
1,152 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016MDSP1BUZZER PIEZO 30.74MM PNL MNT |
2,413 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016SDMP1BUZZER PIEZO 30.74MM PNL MNT |
3,611 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 65dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028LDSP1BUZZER PIEZO 30.74MM PNL MNT |
1,817 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016LDSP1BUZZER PIEZO 30.74MM PNL MNT |
1,252 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016MDFP1BUZZER PIEZO 30.74MM PNL MNT |
3,808 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016MDMP1BUZZER PIEZO 30.74MM PNL MNT |
2,285 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028SDSP1BUZZER PIEZO 30.74MM PNL MNT |
3,004 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028MDFP1BUZZER PIEZO 30.74MM PNL MNT |
3,163 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028MDMP1BUZZER PIEZO 30.74MM PNL MNT |
1,803 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016SDFP1BUZZER PIEZO 30.74MM PNL MNT |
2,526 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 65dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028MDSP1BUZZER PIEZO 30.74MM PNL MNT |
2,221 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016SDSP1BUZZER PIEZO 30.74MM PNL MNT |
2,528 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Slow | 1 PPS | 65dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028SDFP1BUZZER PIEZO 30.74MM PNL MNT |
4,978 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Fast | 10 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|

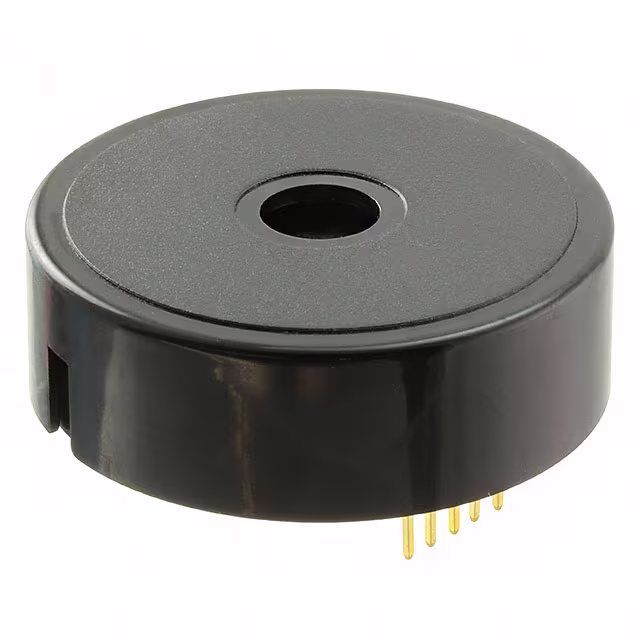

SBT12MMCPCBUZZER PIEZO 44.5MM TH |
4,307 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|

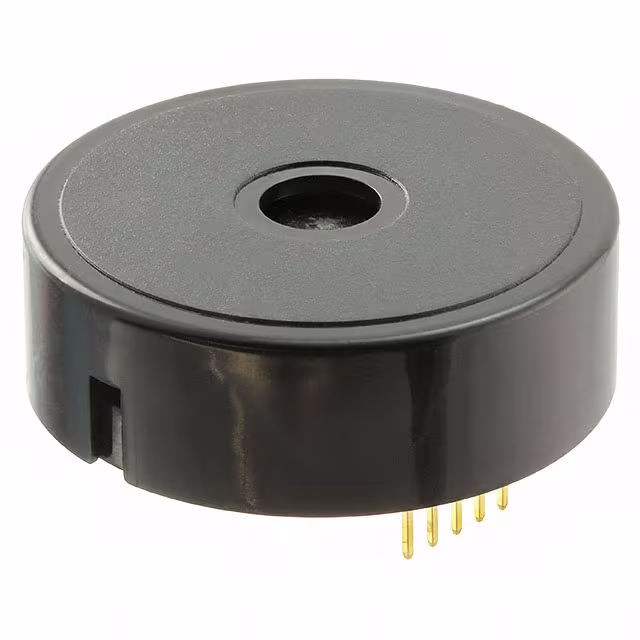

SBT12MMDPCBUZZER PIEZO 44.5MM TH |
1,600 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
SBT12MMEPCBUZZER PIEZO 44.5MM TH |
2,079 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
