Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC628HJRBUZZER PIEZO 42.98MM PNL MNT |
2,983 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Pulse, Slow | 0.5 ~ 2 PPS | 68dB @ 6V, 61cm | 4 ~ 20mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE048SA3CTBBUZZER PIEZO 42.85MM PNL MNT |
2,903 | - |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 65dB @ 28V, 61cm | 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|

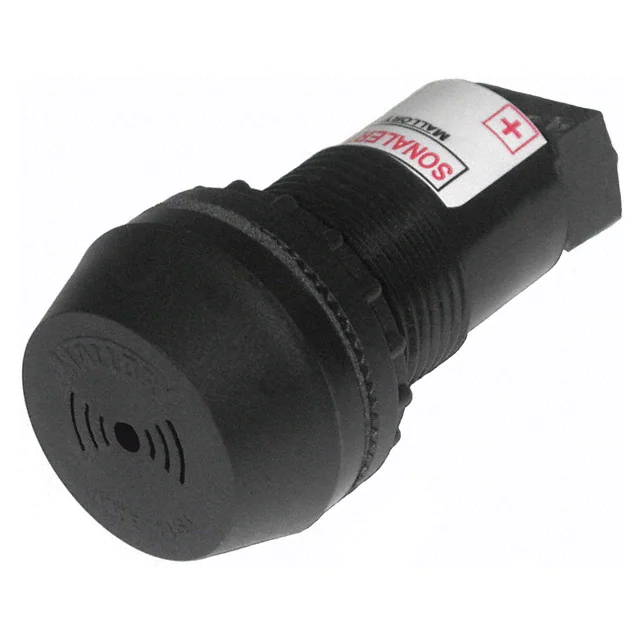

ZA120MADP2BUZZER PIEZO 30.74MM PNL MNT |
4,567 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MADP3BUZZER PIEZO 30.74MM PNL MNT |
1,128 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048SADP2BUZZER PIEZO 30.74MM PNL MNT |
2,936 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048SADP3BUZZER PIEZO 30.74MM PNL MNT |
2,299 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048MADP2BUZZER PIEZO 30.74MM PNL MNT |
1,685 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120SADP2BUZZER PIEZO 30.74MM PNL MNT |
4,529 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048MADP3BUZZER PIEZO 30.74MM PNL MNT |
4,592 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120SADP3BUZZER PIEZO 30.74MM PNL MNT |
4,371 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Double Pulse, Fast | 0.5 PPS | 65dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048MADL1BUZZER PIEZO 30.74MM PNL MNT |
3,080 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Single Tone | 10 Sec On-Delay | 75dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048MAPS1BUZZER PIEZO 30.74MM PNL MNT |
1,290 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Pulse, Short | 1 PPS | 75dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048MASS1BUZZER PIEZO 30.74MM PNL MNT |
4,209 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Single Tone | 1 Min On-Time | 75dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048MASU2BUZZER PIEZO 30.74MM PNL MNT |
4,176 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Speed Up, Fast | 0.5 ~ 8 PPS in 30 Sec | 75dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048SADL1BUZZER PIEZO 30.74MM PNL MNT |
3,254 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Single Tone | 10 Sec On-Delay | 65dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048SAPS1BUZZER PIEZO 30.74MM PNL MNT |
2,740 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Pulse, Short | 1 PPS | 65dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048SASS1BUZZER PIEZO 30.74MM PNL MNT |
2,941 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Single Tone | 1 Min On-Time | 65dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048SASU2BUZZER PIEZO 30.74MM PNL MNT |
1,484 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Speed Up, Fast | 0.5 ~ 8 PPS in 30 Sec | 65dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MADL1BUZZER PIEZO 30.74MM PNL MNT |
1,597 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Single Tone | 10 Sec On-Delay | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MAPS1BUZZER PIEZO 30.74MM PNL MNT |
2,536 | - |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Pulse, Short | 1 PPS | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
