Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FR1V821LBCAP ALUM 820UF 20% 35V RADIAL TH |
2,555 | - |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 820 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.853 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEE-HB1A221APCAP ALUM 220UF 20% 10V SMD |
1,000 | - |
|
Datasheet | HB | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 160 mA @ 120 Hz | 272 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ECA-2GM220CAP ALUM 22UF 20% 400V RADIAL TH |
3,145 | - |
|
Datasheet | M-A | Bulk | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 215 mA @ 120 Hz | 365.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEE-FK0J471APCAP ALUM 470UF 20% 6.3V SMD |
1,058 | - |
|
Datasheet | FK | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FC1C221APCAP ALUM 220UF 20% 16V SMD |
1,000 | - |
|
Datasheet | FC | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FN1H151ULCAP ALUM 150UF 20% 50V SMD |
591 | - |
|
Datasheet | FN, Halogen Free | Tape & Reel (TR) | Active | 150 µF | ±20% | 50 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 227.5 mA @ 120 Hz | 350 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

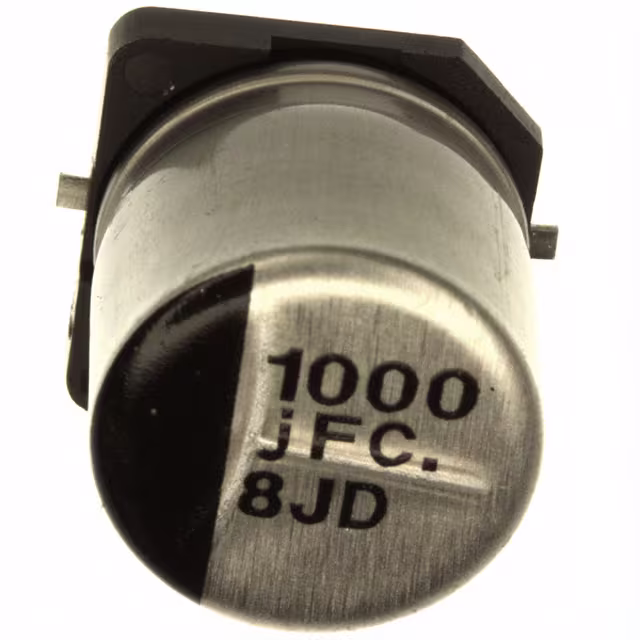

EEE-FC0J102APCAP ALUM 1000UF 20% 6.3V SMD |
1,749 | - |
|
Datasheet | FC | Tape & Reel (TR) | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FK1E101AVCAP ALUM 100UF 20% 25V SMD |
1,064 | - |
|
Datasheet | FK, Anti-Vibration | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | 260mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-HD1C101APCAP ALUM 100UF 20% 16V SMD |
1,046 | - |
|
Datasheet | HD | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 130 mA @ 120 Hz | 221 mA @ 10 kHz | 1.5 Ohms | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-FN1J101LCAP ALUM 100UF 20% 63V SMD |
1,004 | - |
|
Datasheet | FN, Halogen Free | Tape & Reel (TR) | Active | 100 µF | ±20% | 63 V | 350mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
