Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HAA471UAPCAP ALUM 470UF 20% 10V SMD |
968 | - |
|
Datasheet | HA | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 200 mA @ 120 Hz | 340 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEE-HAH470UAPCAP ALUM 47UF 20% 50V SMD |
930 | - |
|
Datasheet | HA | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 95 mA @ 120 Hz | 161.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-HA1A221APCAP ALUM 220UF 20% 10V SMD |
900 | - |
|
Datasheet | HA | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 160 mA @ 120 Hz | 272 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FTJ681XAVCAP ALUM 680UF 20% 6.3V SMD |
870 | - |
|
Datasheet | FT, Anti-Vibration | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 420 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
Series.jpg)
|
EEE-FKJ471XSLCAP ALUM 470UF 20% 6.3V SMD |
474 | - |
|
Datasheet | FKS, Halogen Free | Tape & Reel (TR) | Not For New Designs | 470 µF | ±20% | 6.3 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEE-1EA221APCAP ALUM 220UF 20% 25V SMD |
1,290 | - |
|
Datasheet | S | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 310 mA @ 120 Hz | 527 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

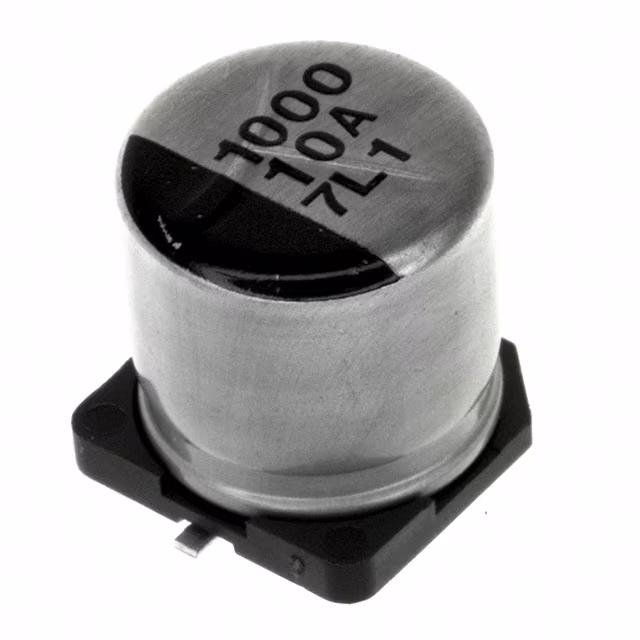

EEE-0JA102APCAP ALUM 1000UF 20% 6.3V SMD |
1,195 | - |
|
Datasheet | S | Tape & Reel (TR) | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 700 mA @ 120 Hz | 1.19 A @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-1CA331APCAP ALUM 330UF 20% 16V SMD |
966 | - |
|
Datasheet | S | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 380 mA @ 120 Hz | 646 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-1AA471APCAP ALUM 470UF 20% 10V SMD |
950 | - |
|
Datasheet | S | Tape & Reel (TR) | Not For New Designs | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 400 mA @ 120 Hz | 680 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEU-FS0J202BCAP ALUM 2000UF 20% 6.3V RADIAL |
1,480 | - |
|
Datasheet | FS-A | Cut Tape (CT) | Active | 2000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.432 A @ 120 Hz | 1.79 A @ 100 kHz | 28 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole |
