Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECA-2EHG100BCAP ALUM 10UF 20% 250V RADIAL TH |
1,000 | - |
|
Datasheet | NHG-A | Tape & Box (TB) | Active | 10 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 88 mA @ 120 Hz | 132 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEV-HB0J220RCAP ALUM 22UF 20% 6.3V SMD |
975 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 26 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEV-FC1V4R7RCAP ALUM 4.7UF 20% 35V SMD |
752 | - |
|
Datasheet | FC | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEV-TA1A221PCAP ALUM 220UF 20% 10V SMD |
281 | - |
|
Datasheet | TA | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 93 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FC1A122SBCAP ALUM 1200UF 20% 10V RADIAL |
500 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 1200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 964 mA @ 120 Hz | 1.205 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.630" (16.00mm) | - | Through Hole | |
|
EEV-FC1E470PCAP ALUM 47UF 20% 25V SMD |
963 | - |
|
Datasheet | FC | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEV-FC1H330PCAP ALUM 33UF 20% 50V SMD |
358 | - |
|
Datasheet | FC | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 225 mA @ 120 Hz | 300 mA @ 100 kHz | 600 mOhms | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEV-FC1A221PCAP ALUM 220UF 20% 10V SMD |
116 | - |
|
Datasheet | FC | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 337.5 mA @ 120 Hz | 450 mA @ 100 kHz | 300 mOhms | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

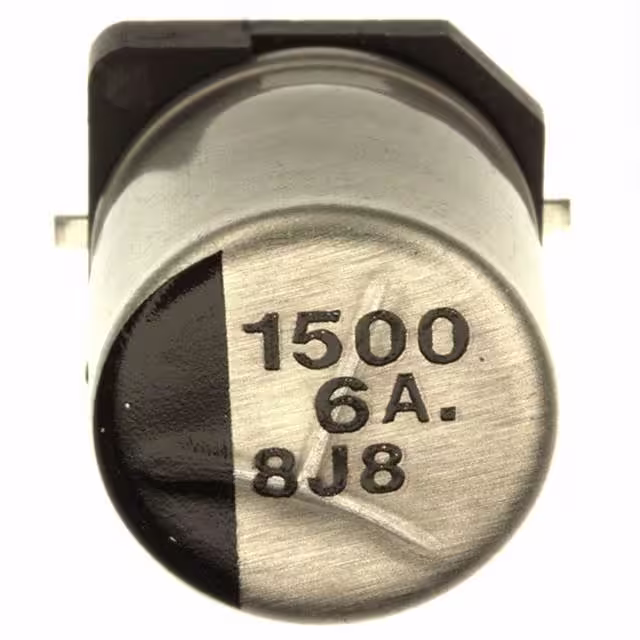

EEE-0JA152UAPCAP ALUM 1500UF 20% 6.3V SMD |
195 | - |
|
Datasheet | S | Tape & Reel (TR) | Obsolete | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 750 mA @ 120 Hz | 1.275 A @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FN1K220LCAP ALUM 22UF 20% 80V SMD |
1,000 | - |
|
Datasheet | FN, Halogen Free | Tape & Reel (TR) | Active | 22 µF | ±20% | 80 V | 1.3Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 84.5 mA @ 120 Hz | 130 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
