Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC0J122LJCAP ALUM 1200UF 20% 6.3V RADIAL |
1,162 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 1200 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 604 mA @ 120 Hz | - | 65 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FC1A102LBCAP ALUM 1000UF 20% 10V RADIAL |
2,149 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 746.3 mA @ 120 Hz | 995 mA @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 1.024" (26.00mm) | - | Through Hole | |
|
|
EEU-FC1C681LJCAP ALUM 680UF 20% 16V RADIAL TH |
2,258 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 746.3 mA @ 120 Hz | - | 65 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FC1E471LJCAP ALUM 470UF 20% 25V RADIAL TH |
3,845 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 746.3 mA @ 120 Hz | - | 65 mOhms | - | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FC1H181LJCAP ALUM 180UF 20% 50V RADIAL TH |
3,453 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 180 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 559 mA @ 120 Hz | - | 120 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-FC1J151BCAP ALUM 150UF 20% 63V RADIAL TH |
4,730 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 150 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 448.5 mA @ 120 Hz | 690 mA @ 100 kHz | 178 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 1.024" (26.00mm) | - | Through Hole | |
|
|
EEU-FC1V331LECAP ALUM 330UF 20% 35V RADIAL TH |
4,291 | - |
|
Datasheet | FC | Bulk | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 646.8 mA @ 120 Hz | 995 mA @ 100 kHz | 65 mOhms | - | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ECE-A0JN331UBCAP ALUM 330UF 20% 6.3V RADIAL |
2,933 | - |
|
Datasheet | SU | Tape & Box (TB) | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

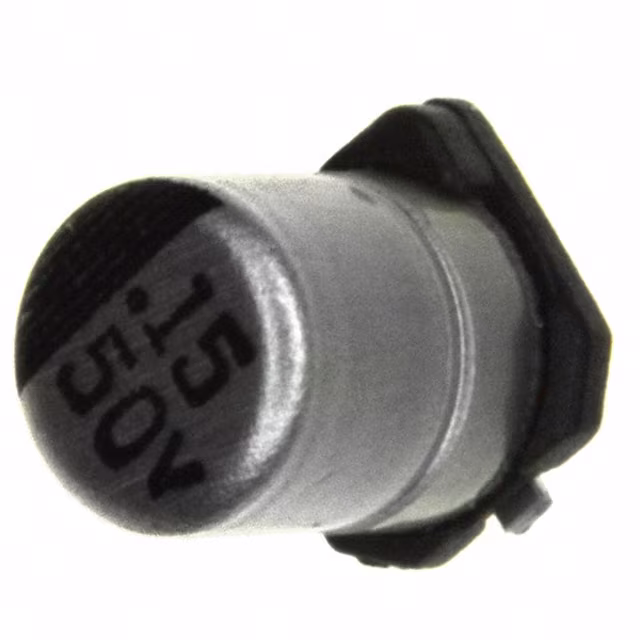

ECE-V1HVR15SRCAP ALUM 0.15UF 20% 50V SMD |
4,704 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | 0.15 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | - | - | - | Surface Mount | |
|
EEE-HP0J470PCAP ALUM 47UF 20% 6.3V SMD |
2,405 | - |
|
Datasheet | HB | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | AEC-Q200 | Automotive | 35 mA @ 120 Hz | 59.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
