Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV-HB1H1R0RCAP ALUM 1UF 20% 50V SMD |
1,824 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 10 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HB1H2R2RCAP ALUM 2.2UF 20% 50V SMD |
3,185 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HB1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
1,452 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ECE-V0GA101SRCAP ALUM 100UF 20% 4V SMD |
4,707 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 61 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
ECE-V0JA470SRCAP ALUM 47UF 20% 6.3V SMD |
2,180 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 46 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
ECE-V1AA330SRCAP ALUM 33UF 20% 10V SMD |
3,780 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 43 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
ECE-V1CA220SRCAP ALUM 22UF 20% 16V SMD |
3,358 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

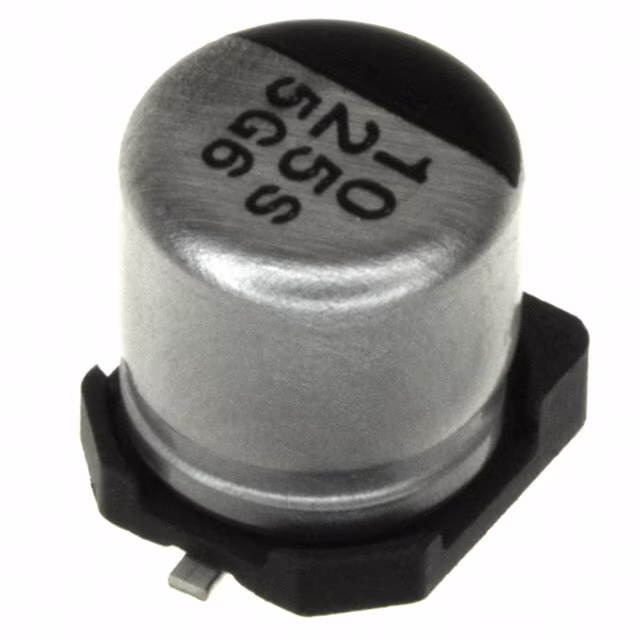

ECE-V1EA100SRCAP ALUM 10UF 20% 25V SMD |
4,452 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

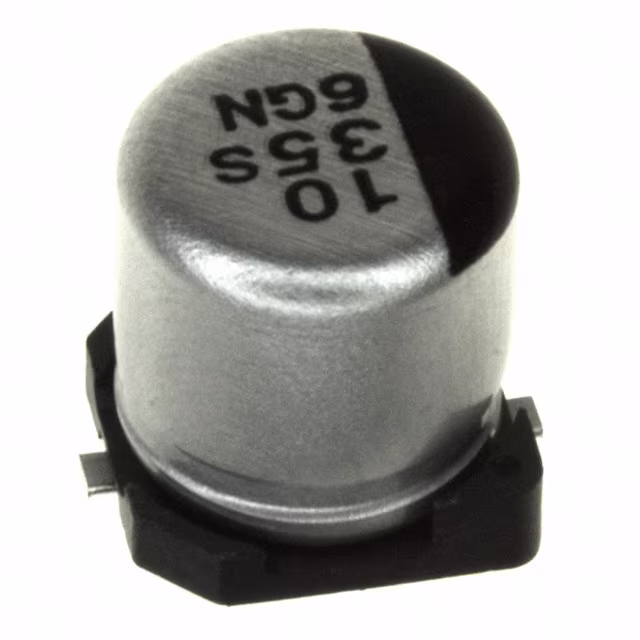

ECE-V1VA100SRCAP ALUM 10UF 20% 35V SMD |
3,185 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

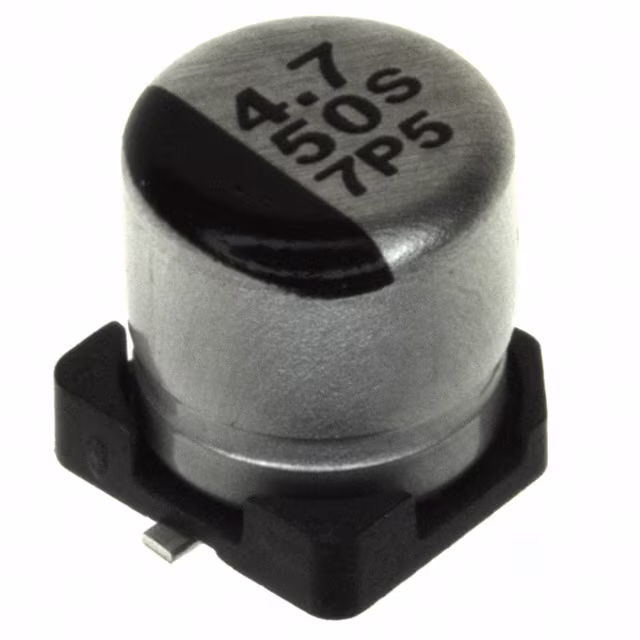

ECE-V1HA4R7SRCAP ALUM 4.7UF 20% 50V SMD |
1,571 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
