Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-A0JN102UBCAP ALUM 1000UF 20% 6.3V RADIAL |
2,334 | - |
|
Datasheet | SU | Tape & Box (TB) | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 430 mA @ 120 Hz | 731 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-TA1J330BCAP ALUM 33UF 20% 63V RADIAL TH |
1,203 | - |
|
Datasheet | TA | Tape & Box (TB) | Active | 33 µF | ±20% | 63 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | 360 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
EEV-TG1K330PCAP ALUM 33UF 20% 80V SMD |
2,897 | - |
|
Datasheet | TG | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 80 V | 1Ohm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEV-TA1H330PCAP ALUM 33UF 20% 50V SMD |
2,855 | - |
|
Datasheet | TA | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 48.1 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

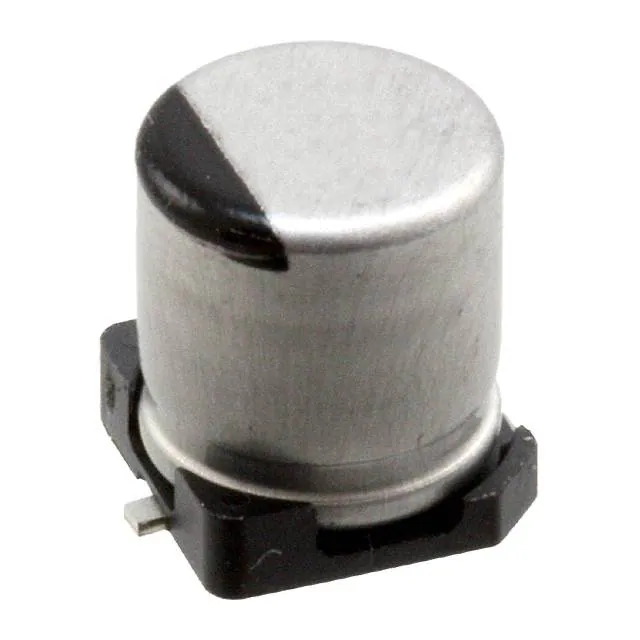

EEV-HD1C220RCAP ALUM 22UF 20% 16V SMD |
4,517 | - |
|
Datasheet | HD | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 56.1 mA @ 10 kHz | 7.2 Ohms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEV-HD1V100RCAP ALUM 10UF 20% 35V SMD |
1,019 | - |
|
Datasheet | HD | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | 7.2 Ohms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEV-HD1H4R7RCAP ALUM 4.7UF 20% 50V SMD |
2,545 | - |
|
Datasheet | HD | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 35.7 mA @ 100 kHz | 7.2 Ohms | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EEV-TG1A331PCAP ALUM 330UF 20% 10V SMD |
2,707 | - |
|
Datasheet | TG | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 10 V | 300mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEV-TG1J330PCAP ALUM 33UF 20% 63V SMD |
2,531 | - |
|
Datasheet | TG | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 63 V | 800mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 97.5 mA @ 120 Hz | 150 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-HA1C220ARCAP ALUM 22UF 20% 16V SMD |
3,521 | - |
|
Datasheet | HA | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 39 mA @ 120 Hz | 66.3 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
