Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV-FK1V330PCAP ALUM 33UF 20% 35V SMD |
2,190 | - |
|
Datasheet | FK | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1V470PCAP ALUM 47UF 20% 35V SMD |
1,083 | - |
|
Datasheet | FK | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-EE2C820BCAP ALUM 82UF 20% 160V RADIAL TH |
4,097 | - |
|
Datasheet | EE-A | Tape & Box (TB) | Active | 82 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 518 mA @ 120 Hz | 1.48 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEU-EE2E470BCAP ALUM 47UF 20% 250V RADIAL TH |
1,929 | - |
|
Datasheet | EE-A | Tape & Box (TB) | Active | 47 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 451.5 mA @ 120 Hz | 1.29 A @ 100 kHz | - | 0.197" (5.00mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2D680BCAP ALUM 68UF 20% 200V RADIAL TH |
4,353 | - |
|
Datasheet | EE-A | Tape & Box (TB) | Active | 68 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 465.5 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.197" (5.00mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ECE-V1AA470SPCAP ALUM 47UF 20% 10V SMD |
3,059 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

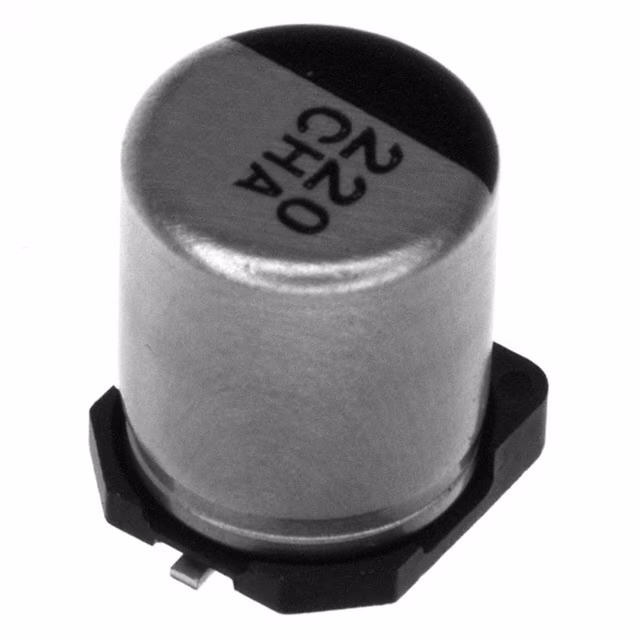

EEV-HA1C221XPCAP ALUM 220UF 20% 16V SMD |
1,606 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEV-HA1V101XPCAP ALUM 100UF 20% 35V SMD |
1,856 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 84 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-HA1H330XPCAP ALUM 33UF 20% 50V SMD |
3,462 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 60 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-HA1H470XPCAP ALUM 47UF 20% 50V SMD |
2,742 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 63 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
