Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

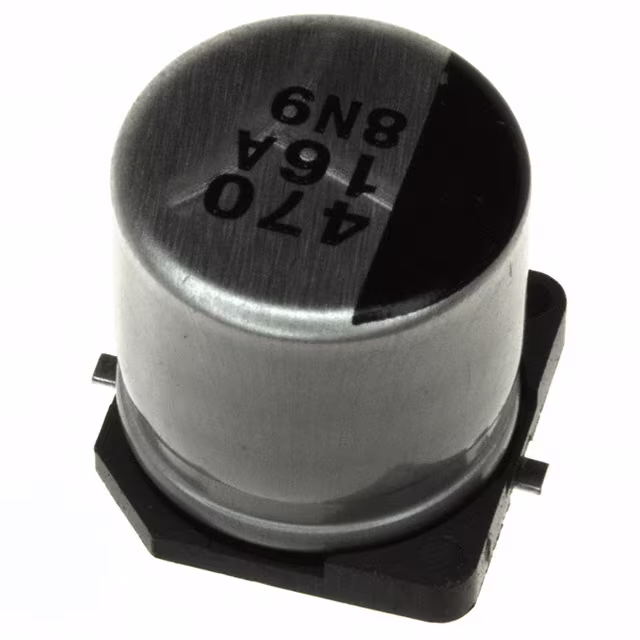

ECE-V1CA471PCAP ALUM 470UF 20% 16V SMD |
3,201 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 420 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ECE-V1EA221PCAP ALUM 220UF 20% 25V SMD |
2,972 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 310 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
ECE-V1VA101PCAP ALUM 100UF 20% 35V SMD |
4,258 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ECE-V1HA470PCAP ALUM 47UF 20% 50V SMD |
3,372 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ECE-V1AA102PCAP ALUM 1000UF 20% 10V SMD |
3,087 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 580 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEV-FK1K100PCAP ALUM 10UF 20% 80V SMD |
4,320 | - |
|
Datasheet | FK | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 60 mA @ 100 kHz | 2.4 Ohms | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-EE2E470SBCAP ALUM 47UF 20% 250V RADIAL TH |
4,926 | - |
|
Datasheet | EE-A | Tape & Box (TB) | Active | 47 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2D680SBCAP ALUM 68UF 20% 200V RADIAL TH |
4,664 | - |
|
Datasheet | EE-A | Tape & Box (TB) | Active | 68 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 465.5 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.197" (5.00mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2C101SBCAP ALUM 100UF 20% 160V RADIAL |
3,541 | - |
|
Datasheet | EE-A | Tape & Box (TB) | Active | 100 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2E680SBCAP ALUM 68UF 20% 250V RADIAL TH |
2,712 | - |
|
Datasheet | EE-A | Tape & Box (TB) | Active | 68 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole |
