Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-EB2W220BCAP ALUM 22UF 20% 450V RADIAL TH |
1,167 | - |
|
Datasheet | EB | Tape & Box (TB) | Active | 22 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FC1A332SBCAP ALUM 3300UF 20% 10V RADIAL |
4,822 | - |
|
Datasheet | FC | Tape & Box (TB) | Active | 3300 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.874 A @ 120 Hz | 2.205 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FK1E122CAP ALUM 1200UF 20% 25V RADIAL |
4,098 | - |
|
Datasheet | FK | Bulk | Active | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.512 A @ 120 Hz | 1.89 A @ 100 kHz | 29 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FS0J622LCAP ALUM 6200UF 20% 6.3V RADIAL |
2,954 | - |
|
Datasheet | FS-A | Bulk | Active | 6200 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.904 A @ 120 Hz | 3.63 A @ 100 kHz | 13 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EEU-FM1V182ECAP ALUM 1800UF 20% 35V RADIAL |
2,756 | - |
|
Datasheet | FM-A | Bulk | Active | 1800 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEV-HB1E100RCAP ALUM 10UF 20% 25V SMD |
1,527 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECE-V0JA152PCAP ALUM 1500UF 20% 6.3V SMD |
1,524 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 750 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
ECE-V1VA331PCAP ALUM 330UF 20% 35V SMD |
2,038 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

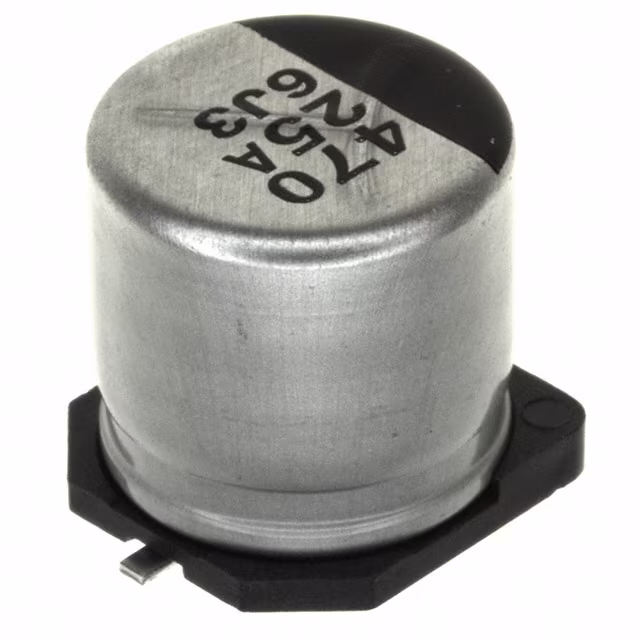

ECE-V1EA471PCAP ALUM 470UF 20% 25V SMD |
4,617 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ECE-V2AA220PCAP ALUM 22UF 20% 100V SMD |
3,972 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 85 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
