Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS0J512CAP ALUM 5100UF 20% 6.3V RADIAL |
1,575 | - |
|
Datasheet | FS-A | Bulk | Active | 5100 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEE-TC1V470XVCAP ALUM 47UF 20% 35V SMD |
210 | - |
|
Datasheet | TC, Anti-Vibration | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | 450mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 195 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-TP1E471LCAP ALUM 470UF 20% 25V RADIAL TH |
952 | - |
|
Datasheet | TP-A | Bulk | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 795 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

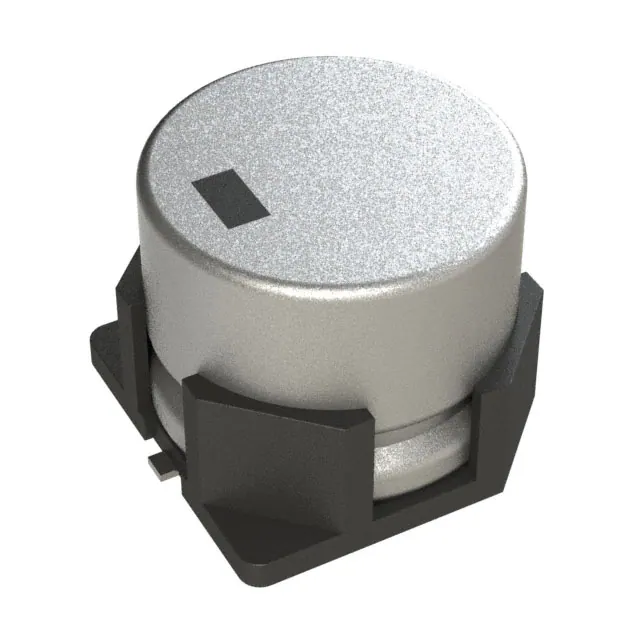

EEE-FP1C221AVCAP ALUM 220UF 20% 16V SMD |
612 | - |
|
Datasheet | FP, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.268" (6.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-TA1V221CAP ALUM 220UF 20% 35V RADIAL TH |
600 | - |
|
Datasheet | TA | Bulk | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 497.3 mA @ 120 Hz | 765 mA @ 100 kHz | 130 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEE-FP1E471AVCAP ALUM 470UF 20% 25V SMD |
470 | - |
|
Datasheet | FP, Anti-Vibration | Tape & Reel (TR) | Active | 470 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 773.5 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-TC1E221UVCAP ALUM 220UF 20% 25V SMD |
1,320 | - |
|
Datasheet | TCU, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FC1J391BCAP ALUM 390UF 20% 63V RADIAL TH |
954 | - |
|
Datasheet | FC | Cut Tape (CT) | Active | 390 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.29 A @ 120 Hz | 1.72 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEU-FC1C222BCAP ALUM 2200UF 20% 16V RADIAL |
894 | - |
|
Datasheet | FC | Cut Tape (CT) | Active | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.556 A @ 120 Hz | 1.945 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-HD1H471CAP ALUM 470UF 20% 50V RADIAL TH |
436 | - |
|
Datasheet | HD | Bulk | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 795 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole |
