Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2GA151BACAP ALUM 150UF 20% 400V SNAP TH |
4,964 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 150 µF | ±20% | 400 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

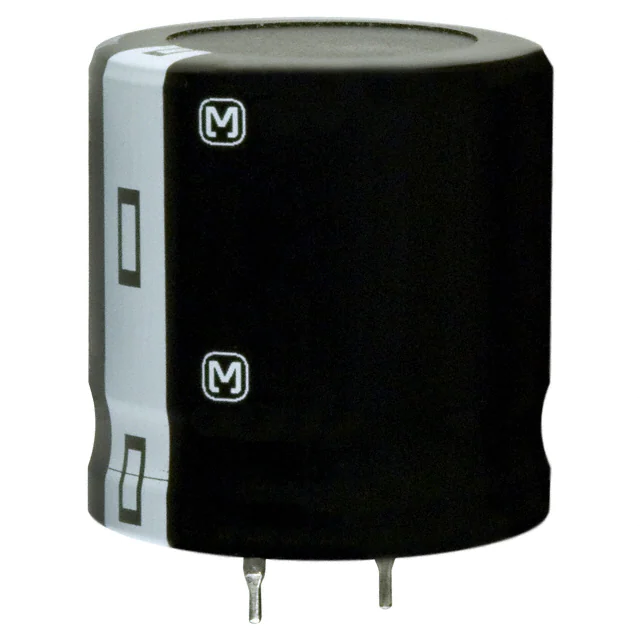

ECO-S2GA151DACAP ALUM 150UF 20% 400V SNAP TH |
1,172 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 150 µF | ±20% | 400 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S2GA181CACAP ALUM 180UF 20% 400V SNAP TH |
1,966 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECO-S2GA181EACAP ALUM 180UF 20% 400V SNAP TH |
1,317 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ECO-S2GA221CACAP ALUM 220UF 20% 400V SNAP TH |
3,685 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S2GA221EACAP ALUM 220UF 20% 400V SNAP TH |
1,474 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S2GA271DACAP ALUM 270UF 20% 400V SNAP TH |
3,318 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECO-S2GA271EACAP ALUM 270UF 20% 400V SNAP TH |
3,168 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ECO-S2GA331DACAP ALUM 330UF 20% 400V SNAP TH |
4,885 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 330 µF | ±20% | 400 V | 402mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S2GA331EACAP ALUM 330UF 20% 400V SNAP TH |
1,924 | - |
|
Datasheet | TS-HA | Bulk | Obsolete | 330 µF | ±20% | 400 V | 402mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
