Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2AP272CACAP ALUM 2700UF 20% 100V SNAP TH |
4,546 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 2700 µF | ±20% | 100 V | 104mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 120 Hz | 4.267 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2AP102CACAP ALUM 1000UF 20% 100V SNAP TH |
1,954 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 1000 µF | ±20% | 100 V | 216mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.254 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2AP122CACAP ALUM 1200UF 20% 100V SNAP TH |
3,135 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 1200 µF | ±20% | 100 V | 180mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.31 A @ 120 Hz | 2.657 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2AP152BACAP ALUM 1500UF 20% 100V SNAP TH |
4,811 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 1500 µF | ±20% | 100 V | 155mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.57 A @ 120 Hz | 2.956 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ECO-S2AP152DACAP ALUM 1500UF 20% 100V SNAP TH |
1,653 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 1500 µF | ±20% | 100 V | 155mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.57 A @ 120 Hz | 2.956 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2AP182BACAP ALUM 1800UF 20% 100V SNAP TH |
4,832 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 1800 µF | ±20% | 100 V | 129mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 3.266 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2AP182DACAP ALUM 1800UF 20% 100V SNAP TH |
2,200 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 1800 µF | ±20% | 100 V | 138mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 3.266 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2AP222BACAP ALUM 2200UF 20% 100V SNAP TH |
3,507 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 121mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.14 A @ 120 Hz | 3.611 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECO-S2AP222DACAP ALUM 2200UF 20% 100V SNAP TH |
1,934 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 2200 µF | ±20% | 100 V | 121mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.14 A @ 120 Hz | 3.611 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

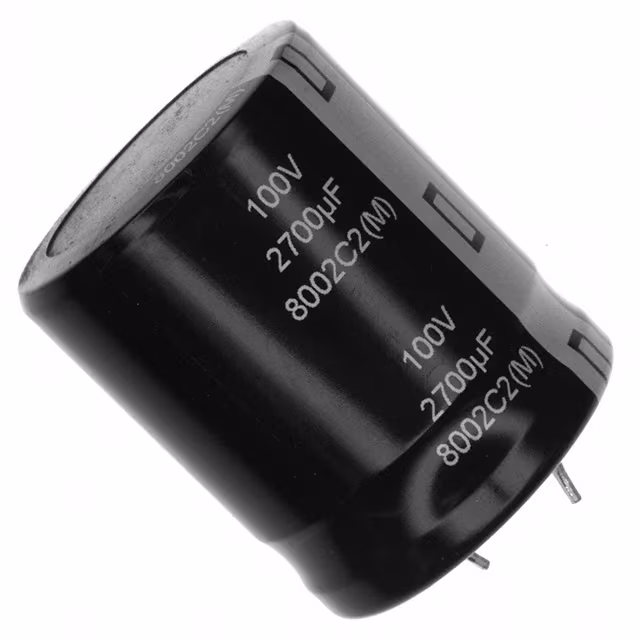

ECO-S2AP272DACAP ALUM 2700UF 20% 100V SNAP TH |
2,150 | - |
|
Datasheet | TS-UP | Bulk | Obsolete | 2700 µF | ±20% | 100 V | 104mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 120 Hz | 4.267 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole |
