Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-T2WA561FACAP ALUM 560UF 20% 450V SNAP TH |
4,798 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 560 µF | ±20% | 450 V | 296mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.94 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECE-T2WA681FACAP ALUM 680UF 20% 450V SNAP TH |
4,824 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 680 µF | ±20% | 450 V | 244mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|

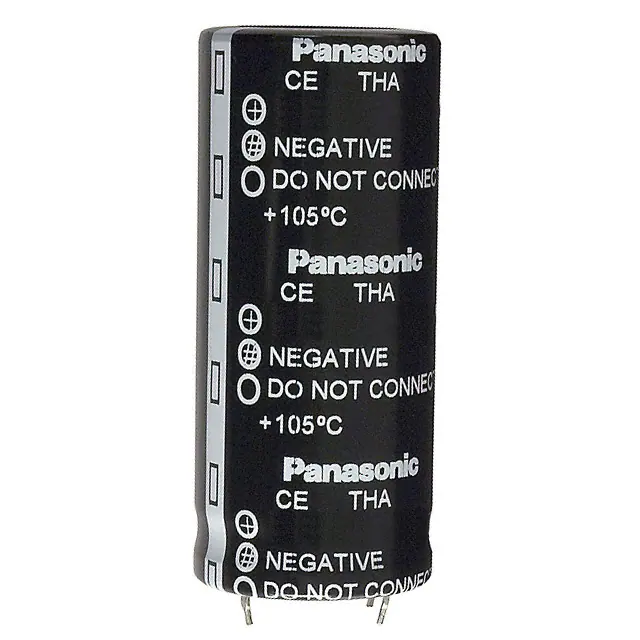

ECE-T2WA821EACAP ALUM 820UF 20% 450V SNAP TH |
4,726 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 820 µF | ±20% | 450 V | 202mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|

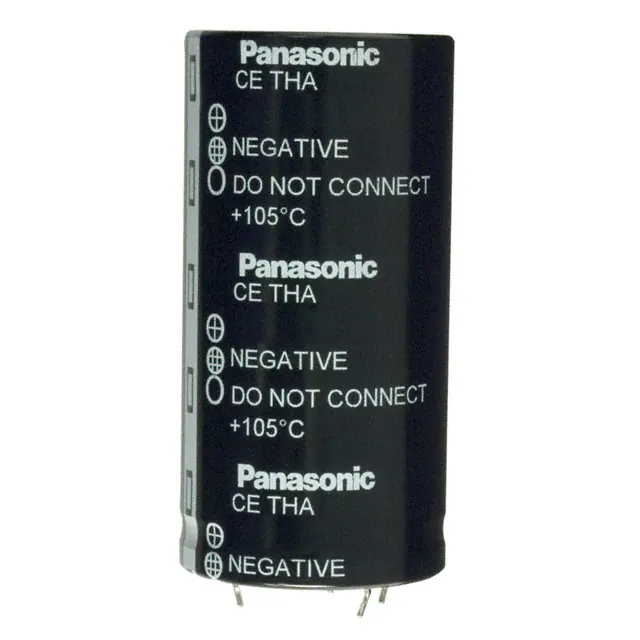

ECE-T2WA102FACAP ALUM 1000UF 20% 450V SNAP TH |
4,159 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 1000 µF | ±20% | 450 V | 166mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
EEV-HA2A4R7PCAP ALUM 4.7UF 20% 100V SMD |
1,617 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 50 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEV-HA2A3R3PCAP ALUM 3.3UF 20% 100V SMD |
2,608 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 30 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FC2A1R0CAP ALUM 1UF 20% 100V RADIAL TH |
3,189 | - |
|
Datasheet | FC | Bulk | Obsolete | 1 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 9.8 mA @ 120 Hz | - | 7.5 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
EEV-HA2A4R7UPCAP ALUM 4.7UF 20% 100V SMD |
3,122 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 30 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

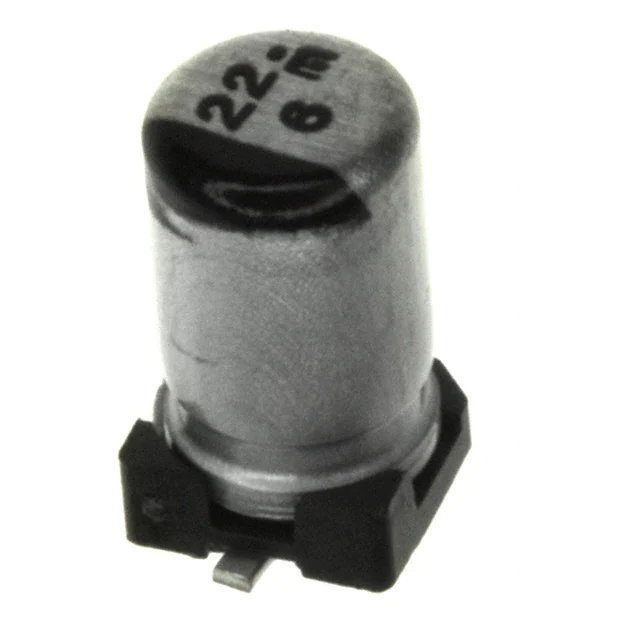

ECE-V0JS220WRCAP ALUM 22UF 20% 6.3V SMD |
1,043 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
ECE-V2AA100UPCAP ALUM 10UF 20% 100V SMD |
2,852 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
