Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-P1KA223HACAP ALUM 22000UF 20% 80V SNAP TH |
1,107 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 22000 µF | ±20% | 80 V | 22mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.83 A @ 120 Hz | 9.005 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.622" (92.00mm) | - | Through Hole | |
|
ECE-P1KA273HACAP ALUM 27000UF 20% 80V SNAP TH |
2,224 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 27000 µF | ±20% | 80 V | 18mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 9.637 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|

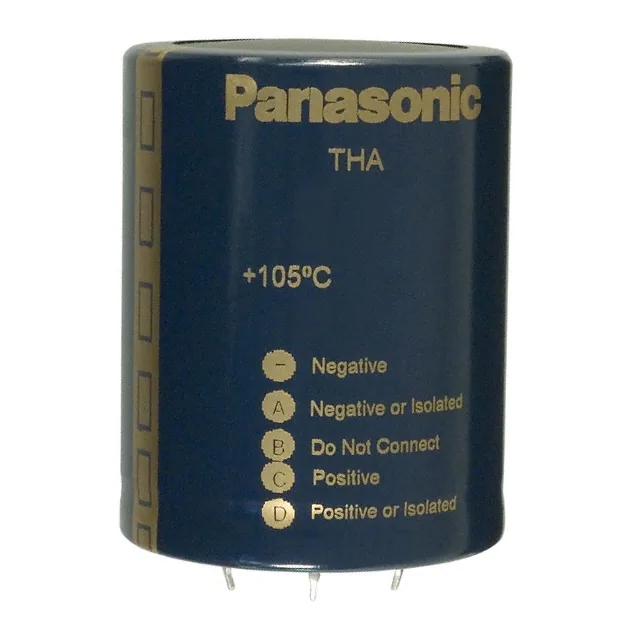

ECE-P2AA123HACAP ALUM 12000UF 20% 100V SNAP |
2,803 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 12000 µF | ±20% | 100 V | 22mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.17 A @ 120 Hz | 8.246 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
ECE-P2AA153HACAP ALUM 15000UF 20% 100V SNAP |
2,340 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 15000 µF | ±20% | 100 V | 19mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.01 A @ 120 Hz | 9.212 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.150" (80.00mm) | - | Through Hole | |
|
|
ECE-P2AA183HACAP ALUM 18000UF 20% 100V SNAP |
2,293 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 18000 µF | ±20% | 100 V | 17mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.64 A @ 120 Hz | 9.936 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.622" (92.00mm) | - | Through Hole | |
|
|
ECE-P2AA223HACAP ALUM 22000UF 20% 100V SNAP |
3,445 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 22000 µF | ±20% | 100 V | 15mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.32 A @ 120 Hz | 10.72 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
ECE-P2DA332HACAP ALUM 3300UF 20% 200V SNAP TH |
1,346 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 3300 µF | ±20% | 200 V | 75mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.2 A @ 120 Hz | 7.28 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

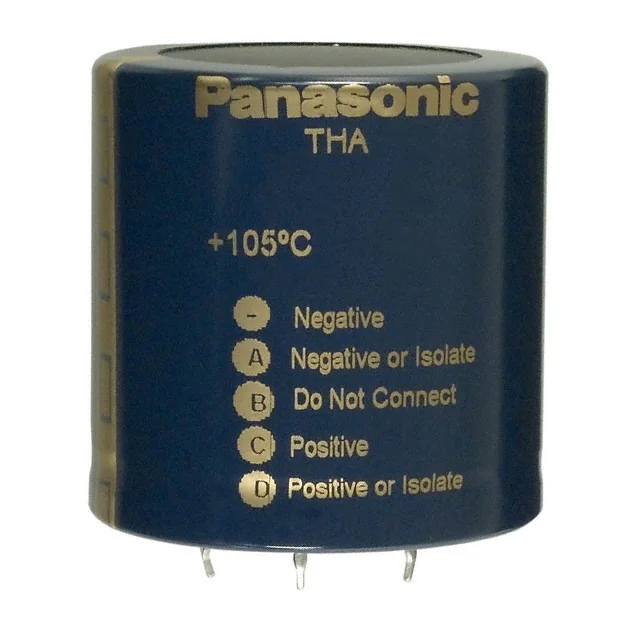

ECE-P2DA392HXCAP ALUM 3900UF 20% 200V SNAP TH |
3,396 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 3900 µF | ±20% | 200 V | 64mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.65 A @ 120 Hz | 7.91 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ECE-P2DA472HXCAP ALUM 4700UF 20% 200V SNAP TH |
3,942 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 4700 µF | ±20% | 200 V | 53mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.48 A @ 120 Hz | 9.072 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
|
ECE-P2DA822HACAP ALUM 8200UF 20% 200V SNAP TH |
4,524 | - |
|
Datasheet | T-HA | Bulk | Obsolete | 8200 µF | ±20% | 200 V | 28mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.56 A @ 120 Hz | 13.38 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole |
