Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-1CA470NPCAP ALUM 47UF 20% 16V SMD |
3,045 | - |
|
Datasheet | S | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | - | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | - | - | - | - | - | - | - | Surface Mount | |
|

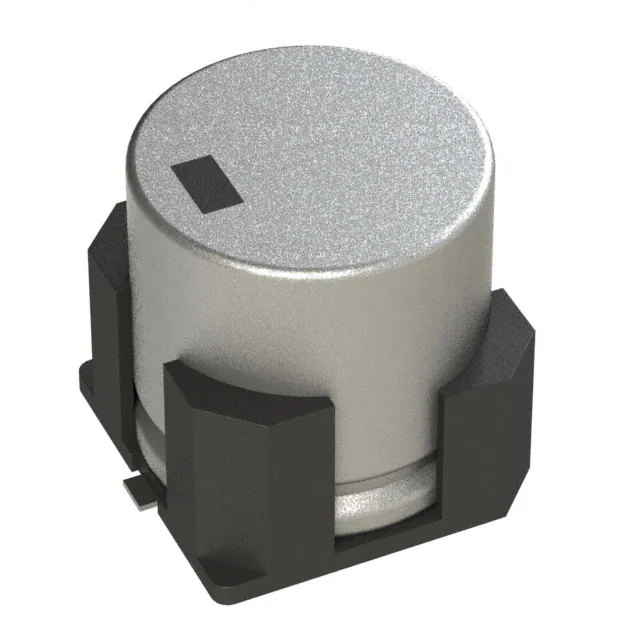

EEE-FK1J101ACAP ALUM 100UF 20% 63V SMD |
2,613 | - |
|
Datasheet | FK | Tape & Reel (TR) | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 400 mA @ 100 kHz | 350 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-HC1HR47RCAP ALUM 0.47UF 20% 50V SMD |
2,932 | - |
|
Datasheet | HC | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 8.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEE-HP1HR22RCAP ALUM 0.22UF 20% 50V SMD |
1,820 | - |
|
Datasheet | HB | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | 3.4 A @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EET-ED2G121JJCAP ALUM 120UF 20% 400V SNAP TH |
3,305 | - |
|
Datasheet | ED-TS | Bulk | Obsolete | 120 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.46 A @ 120 Hz | 1.46 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-EE2G181KJCAP ALUM 180UF 20% 400V SNAP TH |
2,065 | - |
|
Datasheet | EE | Bulk | Obsolete | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 672 mA @ 120 Hz | 2.352 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-EE2W181KJCAP ALUM 180UF 20% 450V SNAP TH |
3,410 | - |
|
Datasheet | EE | Bulk | Obsolete | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 2.24 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC1H183LJCAP ALUM 18000UF 20% 50V SNAP TH |
1,855 | - |
|
Datasheet | HC | Bulk | Obsolete | 18000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.2 A @ 120 Hz | 5.98 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC1H682HJCAP ALUM 6800UF 20% 50V SNAP TH |
2,047 | - |
|
Datasheet | HC | Bulk | Obsolete | 6800 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EET-HC1J562KJCAP ALUM 5600UF 20% 63V SNAP TH |
3,669 | - |
|
Datasheet | HC | Bulk | Obsolete | 5600 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole |
