Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FR1J221LBCAP ALUM 220UF 20% 63V RADIAL TH |
446 | - |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 220 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.5 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-FC1J331BCAP ALUM 330UF 20% 63V RADIAL TH |
3,076 | - |
|
Datasheet | FC | Cut Tape (CT) | Active | 330 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 835.3 mA @ 120 Hz | 1.285 A @ 100 kHz | 85 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-TG1H470UPCAP ALUM 47UF 20% 50V SMD |
1,060 | - |
|
Datasheet | TG | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | 750mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 86.45 mA @ 120 Hz | 133 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FR1J271UBCAP ALUM 270UF 20% 63V RADIAL TH |
3,442 | - |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860.3 mA @ 120 Hz | 1.229 A @ 100 kHz | 35 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
Series.jpg)
|
EEE-FP1H221ALCAP ALUM 220UF 20% 50V SMD |
1,070 | - |
|
Datasheet | FP, Halogen Free | Tape & Reel (TR) | Active | 220 µF | ±20% | 50 V | 120mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 585 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEU-ED2C680CAP ALUM 68UF 20% 160V RADIAL TH |
100 | - |
|
Datasheet | ED-A | Bulk | Active | 68 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 950 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.787" (20.00mm) | - | Through Hole | |
|
EEE-FH1V221LCAP ALUM 220UF 20% 35V SMD |
1,108 | - |
|
Datasheet | FH, Halogen Free | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | 150mOhm @ 100kHz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EEE-FT1E821APCAP ALUM 820UF 20% 25V SMD |
754 | - |
|
Datasheet | FT | Tape & Reel (TR) | Active | 820 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

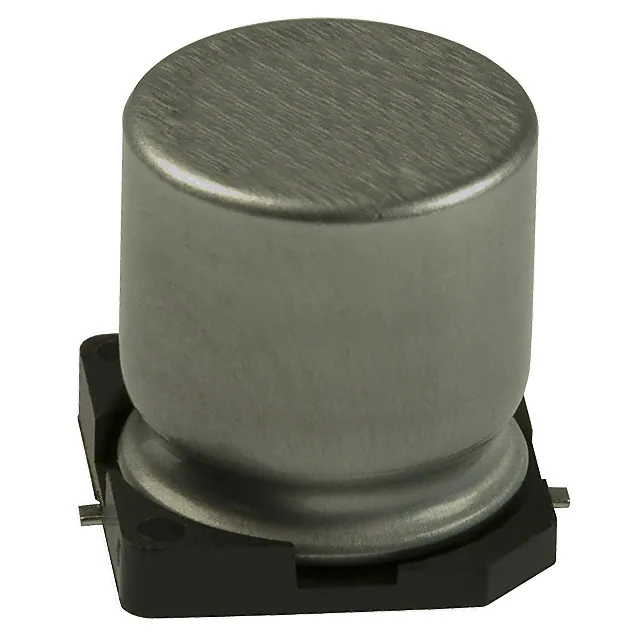

EEV-FK0J332QCAP ALUM 3300UF 20% 6.3V SMD |
3,182 | - |
|
Datasheet | FK | Tape & Reel (TR) | Active | 3300 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | 60 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
Series.jpg)
|
EEE-FT1H331ALCAP ALUM 330UF 20% 50V SMD |
509 | - |
|
Datasheet | FT, Halogen Free | Tape & Reel (TR) | Active | 330 µF | ±20% | 50 V | 120mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 585 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
