Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

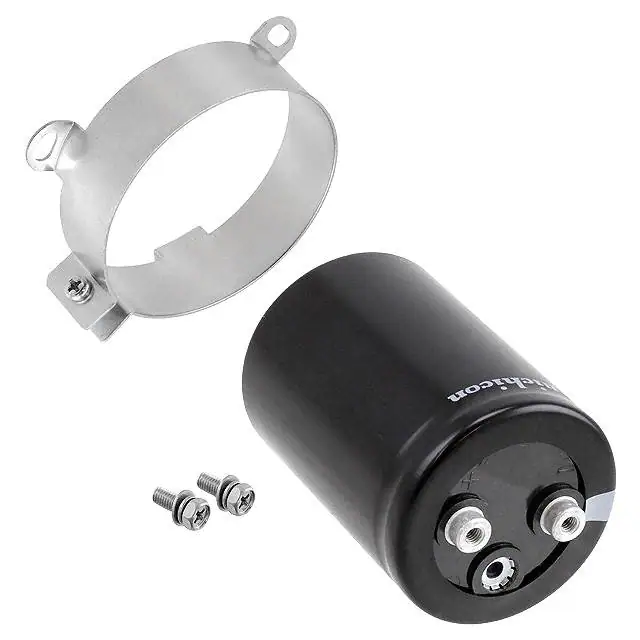

LNK2H152MSEGCAP ALUM 1500UF 20% 500V SCREW |
2,762 | - |
|
Datasheet | LNK | Bulk | Active | 1500 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 9.94 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.543" (90.00mm) | - | Chassis Mount | |
|
ALS80A183QH200CAP ALUM 18000UF 20% 200V SCREW |
4,490 | - |
|
Datasheet | ALS80 | Bulk | Active | 18000 µF | ±20% | 200 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 22.8 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS80C183QH200CAP ALUM 18000UF 20% 200V SCREW |
1,166 | - |
|
Datasheet | ALS80 | Bulk | Active | 18000 µF | ±20% | 200 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 22.8 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS80H183QH200CAP ALUM 18000UF 20% 200V SCREW |
3,360 | - |
|
Datasheet | ALS80 | Bulk | Active | 18000 µF | ±20% | 200 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 22.8 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS81A183QH200CAP ALUM 18000UF 20% 200V SCREW |
0 |
48+：$42.06666 |
|
Datasheet | ALS81 | Bulk | Active | 18000 µF | ±20% | 200 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 22.8 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS81C183QH200CAP ALUM 18000UF 20% 200V SCREW |
2,433 | - |
|
Datasheet | ALS81 | Bulk | Active | 18000 µF | ±20% | 200 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 22.8 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS81H183QH200CAP ALUM 18000UF 20% 200V SCREW |
2,256 | - |
|
Datasheet | ALS81 | Bulk | Active | 18000 µF | ±20% | 200 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 22.8 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
E36F401CDN682MED05CAP ALUM 6.8MF 20% 400V SCREW CH |
2,983 | - |
|
Datasheet | U36F | Bulk | Active | 6.8 mF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
ALS70A243QM200CAP ALUM 24000UF 20% 200V SCREW |
3,149 | - |
|
Datasheet | ALS70 | Bulk | Active | 24000 µF | ±20% | 200 V | 18mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.4 A @ 100 Hz | 29.8 A @ 10 kHz | 15 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS70C243QM200CAP ALUM 24000UF 20% 200V SCREW |
1,796 | - |
|
Datasheet | ALS70 | Bulk | Active | 24000 µF | ±20% | 200 V | 18mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.4 A @ 100 Hz | 29.8 A @ 10 kHz | 15 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS70H243QM200CAP ALUM 24000UF 20% 200V SCREW |
2,532 | - |
|
Datasheet | ALS70 | Bulk | Active | 24000 µF | ±20% | 200 V | 18mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.4 A @ 100 Hz | 29.8 A @ 10 kHz | 15 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS71A243QM200CAP ALUM 24000UF 20% 200V SCREW |
2,275 | - |
|
Datasheet | ALS71 | Bulk | Active | 24000 µF | ±20% | 200 V | 18mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.4 A @ 100 Hz | 29.8 A @ 10 kHz | 15 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS71C243QM200CAP ALUM 24000UF 20% 200V SCREW |
2,777 | - |
|
Datasheet | ALS71 | Bulk | Active | 24000 µF | ±20% | 200 V | 18mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.4 A @ 100 Hz | 29.8 A @ 10 kHz | 15 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS71H243QM200CAP ALUM 24000UF 20% 200V SCREW |
2,060 | - |
|
Datasheet | ALS71 | Bulk | Active | 24000 µF | ±20% | 200 V | 18mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.4 A @ 100 Hz | 29.8 A @ 10 kHz | 15 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
LQR2G392MSEHBBCAP ALUM 3900UF 20% 400V SCREW |
4,969 | - |
|
Datasheet | LQR | Bulk | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.3 A @ 120 Hz | 21.42 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.661" (93.00mm) | - | Chassis Mount | |
|
|
LQR2G392MSEHBNCAP ALUM 3900UF 20% 400V SCREW |
1,668 | - |
|
Datasheet | LQR | Bulk | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.3 A @ 120 Hz | 21.42 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.661" (93.00mm) | - | Chassis Mount | |
|
|
ALS70A822QH400CAP ALUM 8200UF 20% 400V SCREW |
4,432 | - |
|
Datasheet | ALS70 | Bulk | Active | 8200 µF | ±20% | 400 V | 26mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 100 Hz | 26.4 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS70C822QH400CAP ALUM 8200UF 20% 400V SCREW |
4,155 | - |
|
Datasheet | ALS70 | Bulk | Active | 8200 µF | ±20% | 400 V | 26mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 100 Hz | 26.4 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS70H822QH400CAP ALUM 8200UF 20% 400V SCREW |
2,480 | - |
|
Datasheet | ALS70 | Bulk | Active | 8200 µF | ±20% | 400 V | 26mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 100 Hz | 26.4 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount | |
|
|
ALS71A822QH400CAP ALUM 8200UF 20% 400V SCREW |
2,936 | - |
|
Datasheet | ALS71 | Bulk | Active | 8200 µF | ±20% | 400 V | 26mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 100 Hz | 26.4 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 3.937" (100.00mm) | - | Chassis Mount |
