Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7P152V360A072LCAP ALUM 360V POLAR |
2,764 | - |
|
Datasheet | 7P | Bulk | Active | 1.5 mF | -10%, +20% | 360 V | 133mOhm @ 120Hz | - | -20°C ~ 55°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
MAL210659103E3CAP ALUM 10000UF 100V SCREW CHAS |
2,962 | - |
|
Datasheet | 106 PED-ST | Bulk | Active | 10000 µF | -10%, +30% | 100 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | - | 7 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.402" (111.80mm) | - | Chassis Mount | |
|
ALS70C274NT063CAP ALUM 270000UF 20% 63V SCREW |
1,521 | - |
|
Datasheet | ALS70 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70H274NT063CAP ALUM 270000UF 20% 63V SCREW |
1,716 | - |
|
Datasheet | ALS70 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70P274NT063CAP ALUM 270000UF 20% 63V SCREW |
3,020 | - |
|
Datasheet | ALS70 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70U274NT063CAP ALUM 270000UF 20% 63V SCREW |
4,953 | - |
|
Datasheet | ALS70 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71A274NT063CAP ALUM 270000UF 20% 63V SCREW |
2,705 | - |
|
Datasheet | ALS71 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71C274NT063CAP ALUM 270000UF 20% 63V SCREW |
1,667 | - |
|
Datasheet | ALS71 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71G274NT063CAP ALUM 270000UF 20% 63V SCREW |
3,219 | - |
|
Datasheet | ALS71 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71H274NT063CAP ALUM 270000UF 20% 63V SCREW |
2,095 | - |
|
Datasheet | ALS71 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71P274NT063CAP ALUM 270000UF 20% 63V SCREW |
3,819 | - |
|
Datasheet | ALS71 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS71U274NT063CAP ALUM 270000UF 20% 63V SCREW |
3,810 | - |
|
Datasheet | ALS71 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
LNK2V682MSEGBBCAP ALUM 6800UF 20% 350V SCREW |
2,594 | - |
|
Datasheet | LNK | Bulk | Active | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.6 A @ 120 Hz | 27.44 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 6.220" (158.00mm) | - | Chassis Mount | |
|
|
LNK2V682MSEGBNCAP ALUM 6800UF 20% 350V SCREW |
4,540 | - |
|
Datasheet | LNK | Bulk | Active | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.6 A @ 120 Hz | 27.44 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 6.220" (158.00mm) | - | Chassis Mount | |
|
|
ALS40A103NP250CAP ALUM SCRW TERM 105C |
1,917 | - |
|
Datasheet | ALS40 | Box | Active | 10 mF | ±20% | 250 V | 19mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.5 A @ 100 Hz | 19.5 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS41A103NP250CAP ALUM SCRW TERM 105C |
2,968 | - |
|
Datasheet | ALS41 | Box | Active | 10 mF | ±20% | 250 V | 19mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.5 A @ 100 Hz | 19.5 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
E36D350CSN494ZFE3UCAP ALUM SCRW TERM HIGH RIPPLE |
4,089 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

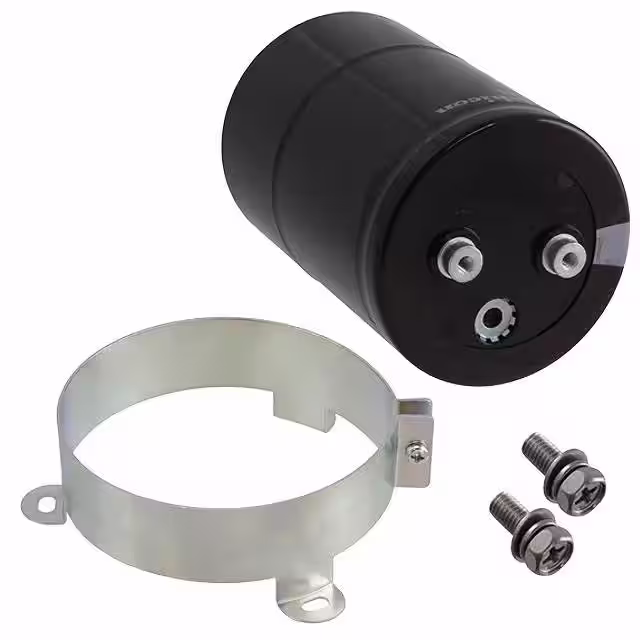

LQR2V562MSEHCAP ALUM 5600UF 20% 350V SCREW |
0 |
30+：$49.08774 |
|
Datasheet | LQR | Bulk | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.7 A @ 120 Hz | 27.58 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.449" (113.00mm) | - | Chassis Mount | |
|
|
LNK2W392MSEHBBCAP ALUM 3900UF 20% 450V SCREW |
3,438 | - |
|
Datasheet | LNK | Bulk | Active | 3900 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 120 Hz | 19.88 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.449" (113.00mm) | - | Chassis Mount | |
|
|
LNK2W392MSEHBNCAP ALUM 3900UF 20% 450V SCREW |
4,569 | - |
|
Datasheet | LNK | Bulk | Active | 3900 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 120 Hz | 19.88 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.449" (113.00mm) | - | Chassis Mount |
