Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS50 3R3 FRES CHAS MNT 3.3 OHM 1% 50W |
394 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 3.3 Ohms | ±1% | 50W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS50 4R7 JRES CHAS MNT 4.7 OHM 5% 50W |
0 |
1+：$5.76800 10+：$3.94960 40+：$3.24400 80+：$2.96850 120+：$2.82694 280+：$2.57131 520+：$2.41430 1000+：$2.27150 |
|
Datasheet | HS | Axial, Box | Bulk | Active | 4.7 Ohms | ±5% | 50W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS25 12R JRES CHAS MNT 12 OHM 5% 25W |
190 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 12 Ohms | ±5% | 25W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.075" L x 0.559" W (27.30mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS50 47R JRES CHAS MNT 47 OHM 5% 50W |
484 |
1+：$6.24800 10+：$4.29280 40+：$3.53200 80+：$3.23480 120+：$3.08206 280+：$2.80637 520+：$2.63702 1000+：$2.48300 |
|
Datasheet | HS | Axial, Box | Bulk | Active | 47 Ohms | ±5% | 50W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS50 500R FRES CHAS MNT 500 OHM 1% 50W |
405 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 500 Ohms | ±1% | 50W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
RH01010K00FE02RES CHAS MNT 10K OHM 1% 12.5W |
187 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 10 kOhms | ±1% | 12.5W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 0.405" (10.29mm) | Solder Lugs | - | - | - |
|
|
HS50 1K FRES CHAS MNT 1K OHM 1% 50W |
161 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 1 kOhms | ±1% | 50W | Wirewound | ±25ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS50 10R JRES CHAS MNT 10 OHM 5% 50W |
1,172 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 10 Ohms | ±5% | 50W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|

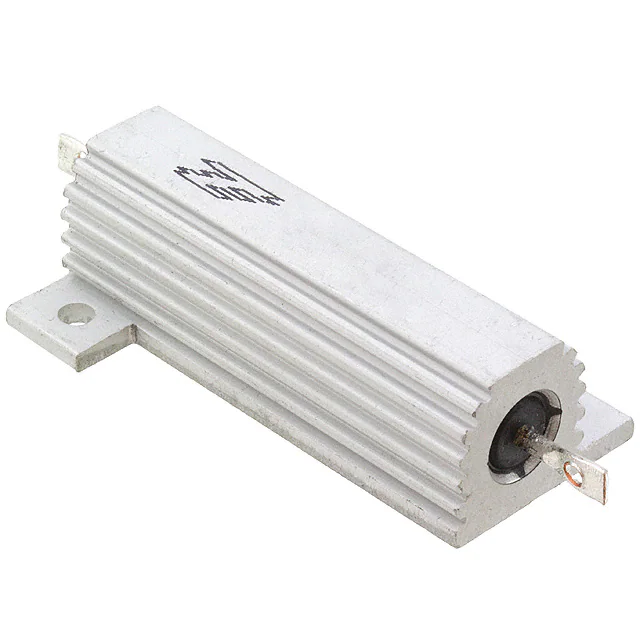

THS5010RJRES CHAS MNT 10 OHM 5% 50W |
658 | - |
|
Datasheet | THS, CGS | Axial, Box | Tray | Active | 10 Ohms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
THS5050KJRES CHAS MNT 50K OHM 5% 50W |
267 |
1+：$6.65600 10+：$4.57680 25+：$4.01536 50+：$3.66368 100+：$3.36480 300+：$2.98042 500+：$2.83286 1000+：$2.65905 |
|
Datasheet | THS, CGS | Axial, Box | Tray | Active | 50 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS501K0JRES CHAS MNT 1K OHM 5% 50W |
210 | - |
|
Datasheet | THS, CGS | Axial, Box | Tray | Active | 1 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS50R01JRES CHAS MNT 0.01 OHM 5% 50W |
166 | - |
|
Datasheet | THS, CGS | Axial, Box | Tray | Active | 10 mOhms | ±5% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
THS5010KJRES CHAS MNT 10K OHM 5% 50W |
164 | - |
|
Datasheet | THS, CGS | Axial, Box | Tray | Active | 10 kOhms | ±5% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
HS50 1K8 JRES CHAS MNT 1.8K OHM 5% 50W |
105 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 1.8 kOhms | ±5% | 50W | Wirewound | ±25ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS25 2R JRES CHAS MNT 2 OHM 5% 25W |
1,417 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 2 Ohms | ±5% | 25W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.075" L x 0.559" W (27.30mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS50 3R3 JRES CHAS MNT 3.3 OHM 5% 50W |
780 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 3.3 Ohms | ±5% | 50W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS25 30R FRES CHAS MNT 30 OHM 1% 25W |
0 |
1+：$6.97600 10+：$4.80880 40+：$3.96520 80+：$3.63580 120+：$3.46660 280+：$3.16106 520+：$2.97338 1000+：$2.80271 |
|
Datasheet | HS | Axial, Box | Bulk | Active | 30 Ohms | ±1% | 25W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.075" L x 0.559" W (27.30mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS50 1K2 JRES CHAS MNT 1.2K OHM 5% 50W |
164 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 1.2 kOhms | ±5% | 50W | Wirewound | ±25ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS50 18R JRES CHAS MNT 18 OHM 5% 50W |
321 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 18 Ohms | ±5% | 50W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.933" L x 0.559" W (49.10mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
AHA50AFB-0R75RESISTOR CHASSIS MOUNT 0.75 OHM |
245 | - |
|
Datasheet | AHA | Axial, Box | Bulk | Active | 750 mOhms | ±1% | 50W | Wirewound | ±200ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 0.650" (16.50mm) | Solder Lugs | - | - | - |
