Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

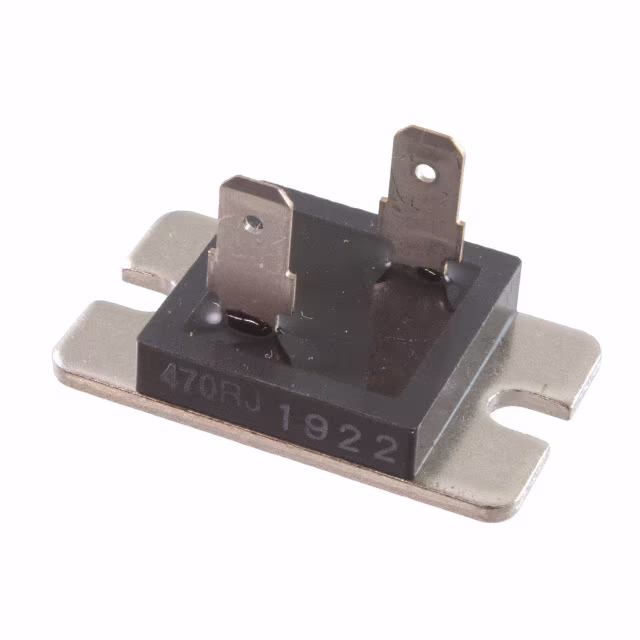

TGHDV470RJE100W MINI SOT227 470 OHMS 5% |
1,726 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 470 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

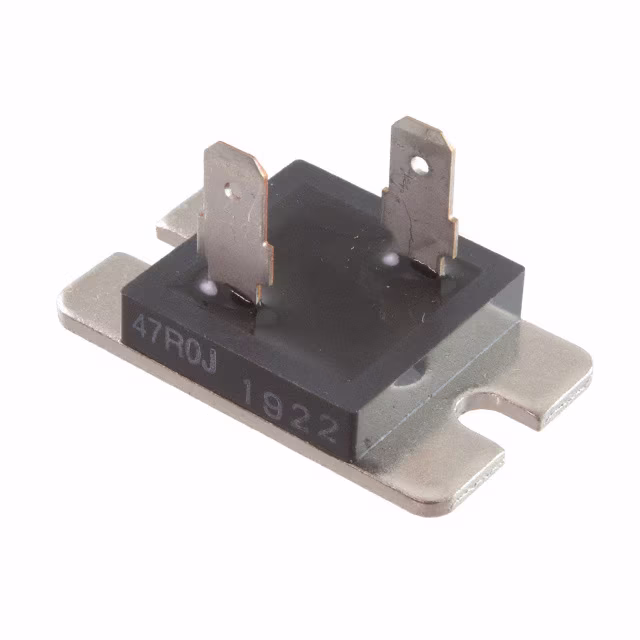

TGHDV47R0JE100W MINI SOT227 47 OHMS 5% |
3,506 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 47 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

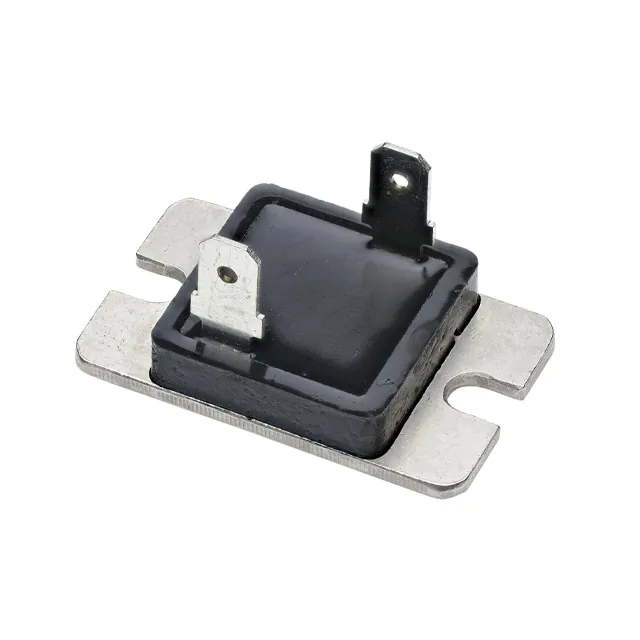

TGHDV100RJE100W MINI SOT227 100 OHMS 5% |
1,409 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 100 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|
|
TGHDV1R00JE100W MINI SOT227 1 OHM 5% |
3,530 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 1 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

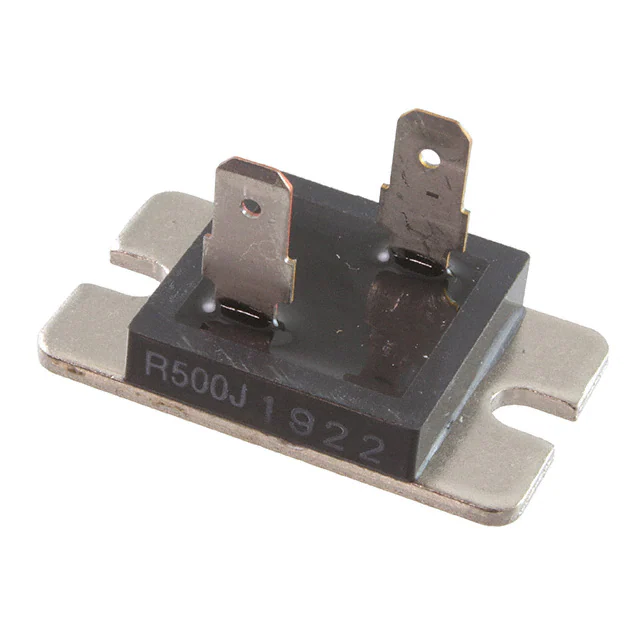

TGHDVR500JE100W MINI SOT227 0.50 OHMS 5% |
4,424 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 500 mOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

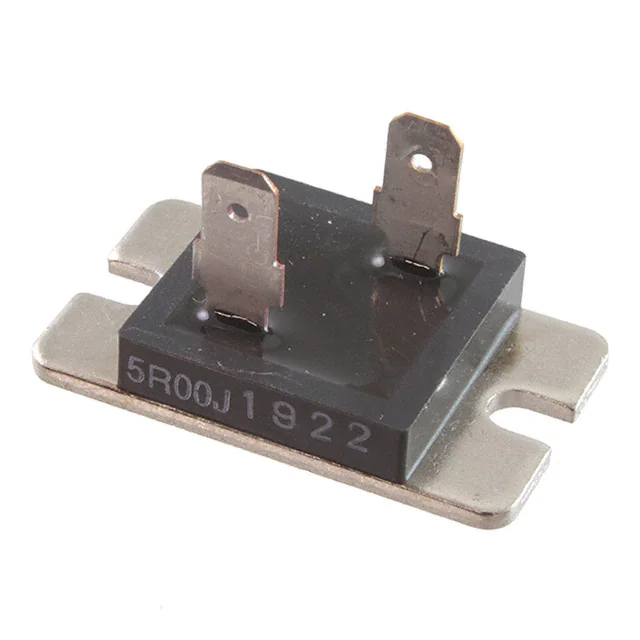

TGHDV5R00JE100W MINI SOT227 5 OHMS 5% |
2,531 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 5 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

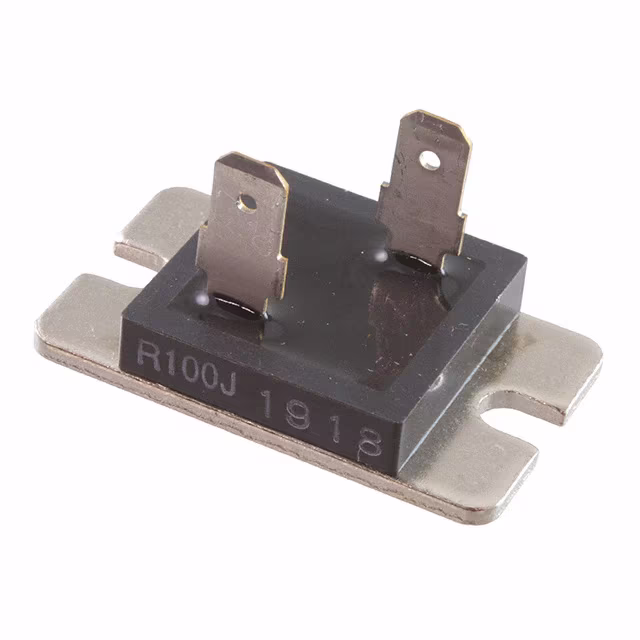

TGHDVR100JE100W MINI SOT227 0.10 OHMS 5% |
2,382 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 100 mOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|
TGHDV270RJE100W MINI SOT227 270 OHMS 5% |
3,316 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 270 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

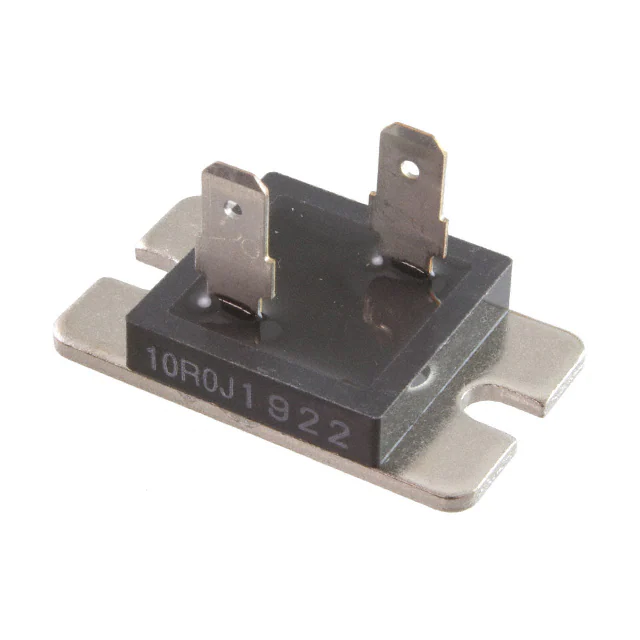

TGHDV10R0JE100W MINI SOT227 10 OHMS 5% |
4,435 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 10 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|
TFSO100A500RJ100W THICK FILM SOT-227 500 OHM |
3,229 | - |
|
Datasheet | TFSO | SOT-227-2 | Box | Active | 500 Ohms | ±5% | 100W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | High Voltage, Non-Inductive | - | Flanges | 1.488" L x 1.000" W (37.80mm x 25.40mm) | 0.618" (15.70mm) | M4 Threaded | - | - | - |
