Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGHMVR200JE0.2 OHM 300 WATT SOT227 5% TF |
1,087 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 200 mOhms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
|
TGHMVR500JE0.5 OHM 300 WATT SOT227 5% TF |
4,774 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 500 mOhms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
|
TGHMV1R00JE1 OHM 300 WATT SOT227 5% TF |
3,609 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 1 Ohms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
TGHMV5R00JE5 OHM 300 WATT SOT227 5% TF |
2,723 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 5 Ohms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
|
TGHMV10R0JE10 OHM 300 WATT SOT227 5% TF |
1,791 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 10 Ohms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|

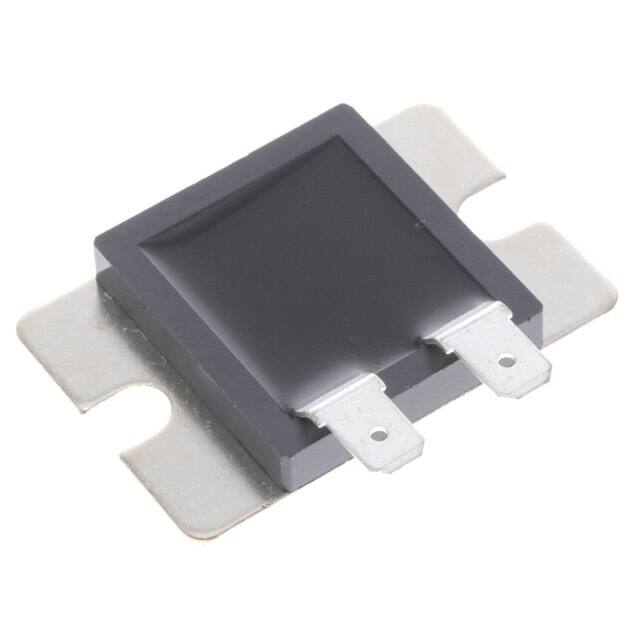

TGHMV25R0JE25 OHM 300 WATT SOT227 5% TF |
3,786 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 25 Ohms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
|
TGHMV33R0JE33 OHM 300 WATT SOT227 5% TF |
4,558 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 33 Ohms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
|
TGHMV50R0JE50 OHM 300 WATT SOT227 5% TF |
2,433 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 50 Ohms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
|
TGHMV100RJE100 OHM 300 WATT SOT227 5% TF |
1,491 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 100 Ohms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
|
|
TGHMV1K00JE1K OHM 300 WATT SOT227 5% TF |
3,154 | - |
|
Datasheet | TGHM | SOT-227-2 | Box | Active | 1 kOhms | ±5% | 300W | Thick Film | ±100ppm/°C | -55°C ~ 175°C | - | Epoxy Coated | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.335" (8.50mm) | Quick Connects, 0.228" (5.80mm) | - | - | - |
