Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RH05020R00FE02RES CHAS MNT 20 OHM 1% 50W |
296 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 20 Ohms | ±1% | 50W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | - | - | - |
|
|
RH05010R00FE02RES CHAS MNT 10 OHM 1% 50W |
1,191 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 10 Ohms | ±1% | 50W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | - | - | - |
|

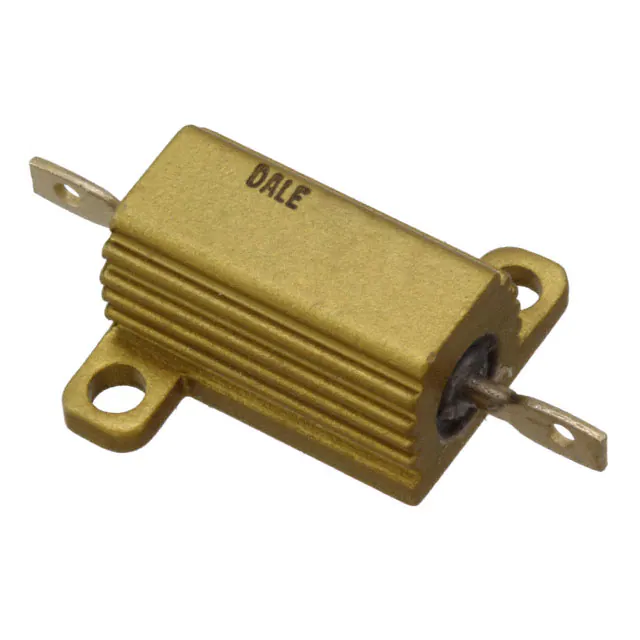

RH00510R00FE02RES CHAS MNT 10 OHM 1% 7.5W |
650 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 10 Ohms | ±1% | 7.5W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.600" L x 0.646" W (15.24mm x 16.41mm) | 0.335" (8.51mm) | Solder Lugs | - | - | - |
|

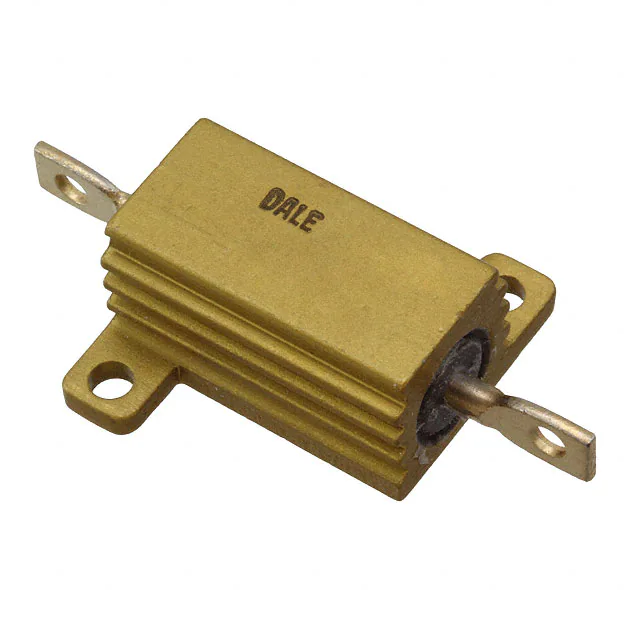

RH0102R000FE02RES CHAS MNT 2 OHM 1% 12.5W |
589 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 2 Ohms | ±1% | 12.5W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 0.405" (10.29mm) | Solder Lugs | - | - | - |
|
|
RH010100R0FE02RES CHAS MNT 100 OHM 1% 12.5W |
399 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 100 Ohms | ±1% | 12.5W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 0.405" (10.29mm) | Solder Lugs | - | - | - |
|
|
RH01010K00FE02RES CHAS MNT 10K OHM 1% 12.5W |
187 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 10 kOhms | ±1% | 12.5W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 0.405" (10.29mm) | Solder Lugs | - | - | - |
|

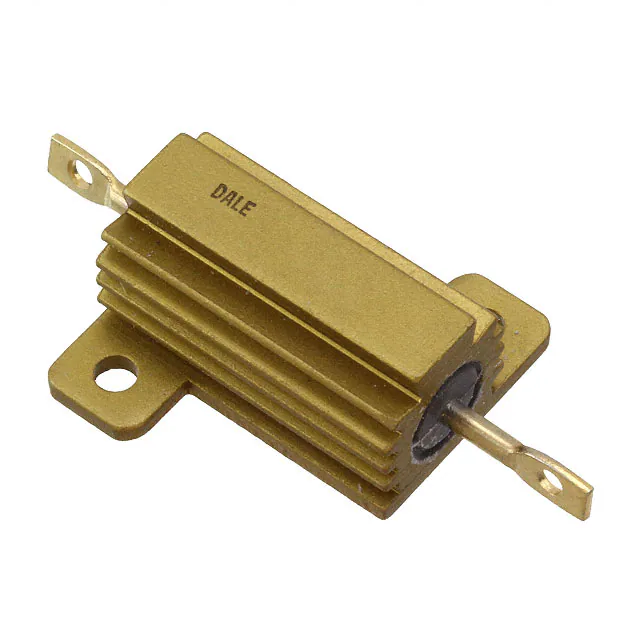

RHA0256R000FE02WIREWOUND CHASSIS MOUNT RESISTOR |
523 |
1+：$5.69600 10+：$3.89680 30+：$3.32586 50+：$3.10640 100+：$2.84760 250+：$2.56419 500+：$2.38698 1000+：$2.23646 |
|
Datasheet | RHA | Axial, Box | Bulk | Active | 6 Ohms | ±1% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | - | Automotive | AEC-Q200 |
|
|
RHA025100R0FE02WIREWOUND CHASSIS MOUNT RESISTOR |
36 |
1+：$5.44800 10+：$3.72640 30+：$3.17760 50+：$2.96688 100+：$2.71856 250+：$2.44646 500+：$2.27632 1000+：$2.13182 |
|
Datasheet | RHA | Axial, Box | Bulk | Active | 100 Ohms | ±1% | 25W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | - | Automotive | AEC-Q200 |
|
|
RHA0508R000FE02WIREWOUND CHASSIS MOUNT RESISTOR |
194 | - |
|
Datasheet | RHA | Axial, Box | Bulk | Active | 8 Ohms | ±1% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | - | Automotive | AEC-Q200 |
|
|
RHA0505R000FE02WIREWOUND CHASSIS MOUNT RESISTOR |
355 |
1+：$9.86400 10+：$6.85280 30+：$5.89494 50+：$5.52688 100+：$5.09328 250+：$4.61846 500+：$4.32155 1000+：$4.06940 |
|
Datasheet | RHA | Axial, Box | Bulk | Active | 5 Ohms | ±1% | 50W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | - | Automotive | AEC-Q200 |
