Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
352210RJTRES SMD 10 OHM 5% 3W 2512 |
7,623 | - |
|
Datasheet | 3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
, J-Lead.JPG)
|

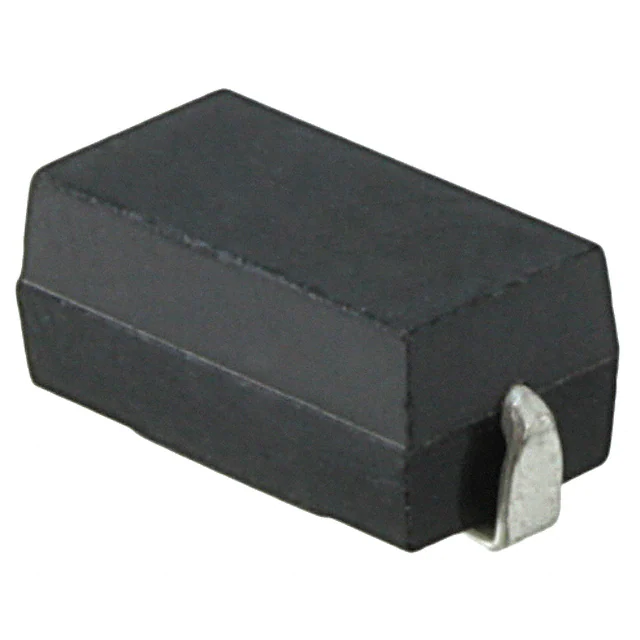

SMW322RJTRES SMD 22 OHM 5% 3W 4122 |
21,181 | - |
|
Datasheet | SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 22 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW34R7JTRES SMD 4.7 OHM 5% 3W 4122 |
19,861 | - |
|
Datasheet | SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 4.7 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW3R22JTRES SMD 0.22 OHM 5% 3W 4122 |
11,655 | - |
|
Datasheet | SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 220 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW310RJTRES SMD 10 OHM 5% 3W 4122 |
9,531 | - |
|
Datasheet | SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
SMW31R0JTRES SMD 1 OHM 5% 3W 4122 |
6,331 | - |
|
Datasheet | SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
SMW32R2JTRES SMD 2.2 OHM 5% 3W 4122 |
5,560 | - |
|
Datasheet | SM, CGS | 4122 (10555 Metric), J-Lead | Tape & Reel (TR) | Active | 2.2 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | SMD | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.209" (5.30mm) | 2 | - |
|
|
35222R2JTRES SMD 2.2 OHM 5% 3W 2512 |
235,305 | - |
|
Datasheet | 3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 2.2 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
35221R0JTRES SMD 1 OHM 5% 3W 2512 |
222,634 |
1+：$0.75200 10+：$0.46560 25+：$0.40032 50+：$0.36272 100+：$0.33280 250+：$0.30250 500+：$0.28498 1000+：$0.27102 |
|
Datasheet | 3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
|
|
35224R7JTRES SMD 4.7 OHM 5% 3W 2512 |
47,114 | - |
|
Datasheet | 3522, CGS | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 4.7 Ohms | ±5% | 3W | Thick Film | Automotive AEC-Q200 | ±400ppm/°C | -55°C ~ 155°C | AEC-Q200 | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.047" (1.20mm) | 2 | - |
