Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERX-2HJR47HRES 0.47 OHM 5% 2W J BEND |
224 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 470 mOhms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 180°C | - | SMD | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.236" (6.00mm) | 2 | - |
|
|
ERX-2HJ1R2HRES SMD 1.2 OHM 5% 2W J BEND |
136 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 1.2 Ohms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 180°C | - | SMD | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.236" (6.00mm) | 2 | - |
|
|
ERX-1HJ5R6HRES SMD 5.6 OHM 5% 1W J BEND |
1,975 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 5.6 Ohms | ±5% | 1W | Metal Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 180°C | - | SMD | 0.354" L x 0.220" W (9.00mm x 5.60mm) | 0.205" (5.20mm) | 2 | - |
|

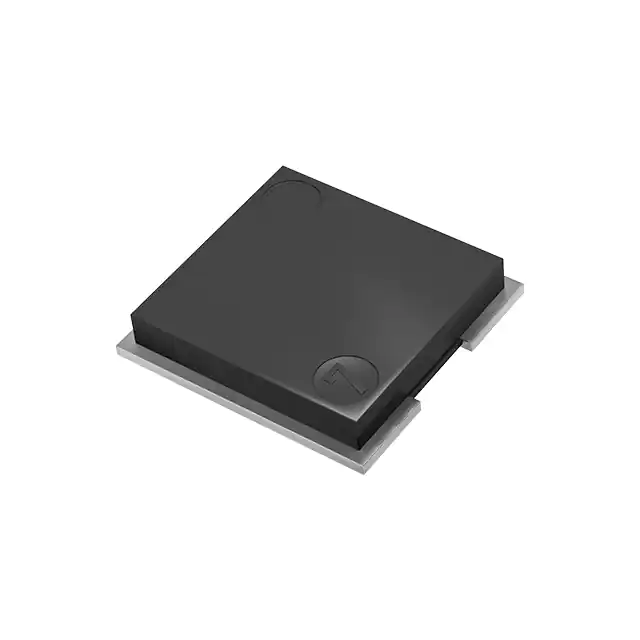

ERJ-MS6SFM50URES SMD 500 UOHM 5W 2625 WIDE |
129 | - |
|
Datasheet | ERJ-MS6S | Wide 2625 (6864 Metric), 2526 | Tape & Reel (TR) | Obsolete | 0.5 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 2526 | 0.252" L x 0.268" W (6.40mm x 6.80mm) | 0.053" (1.35mm) | 2 | - |
|
|
ERX-1HQJ56MHRES 0.056 OHM 5% 1W J BEND |
1,950 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 56 mOhms | ±5% | 1W | Metal Film | Flame Proof, Safety | ±500ppm/°C | -55°C ~ 180°C | - | SMD | 0.354" L x 0.220" W (9.00mm x 5.60mm) | 0.205" (5.20mm) | 2 | - |
|
|
ERX-1HQJ33MHRES 0.033 OHM 5% 1W J BEND |
820 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 33 mOhms | ±5% | 1W | Metal Film | Flame Proof, Safety | ±1000ppm/°C | -55°C ~ 180°C | - | SMD | 0.354" L x 0.220" W (9.00mm x 5.60mm) | 0.205" (5.20mm) | 2 | - |
|
|
ERX-1HQJ27MHRES 0.027 OHM 5% 1W J BEND |
169 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 27 mOhms | ±5% | 1W | Metal Film | Flame Proof, Safety | ±1000ppm/°C | -55°C ~ 180°C | - | SMD | 0.354" L x 0.220" W (9.00mm x 5.60mm) | 0.205" (5.20mm) | 2 | - |
|
|
ERX-2HQJ82MHRES 0.082 OHM 5% 2W J BEND |
1,923 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 82 mOhms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±500ppm/°C | -55°C ~ 180°C | - | SMD | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.236" (6.00mm) | 2 | - |
|
|
ERX-2HQJ68MHRES 0.068 OHM 5% 2W J BEND |
1,897 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 68 mOhms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±500ppm/°C | -55°C ~ 180°C | - | SMD | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.236" (6.00mm) | 2 | - |
|
|
ERX-2HQJ33MHRES 0.033 OHM 5% 2W J BEND |
999 | - |
|
Datasheet | ERX | SMD Flattened J -Bend Axial Lead | Tape & Reel (TR) | Obsolete | 33 mOhms | ±5% | 2W | Metal Film | Flame Proof, Safety | ±1000ppm/°C | -55°C ~ 180°C | - | SMD | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.236" (6.00mm) | 2 | - |
