Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERJ-8ENF1541VRES SMD 1.54K OHM 1% 1/4W 1206 |
40,227 | - |
|
Datasheet | ERJ-8EN | 1206 (3216 Metric) | Tape & Reel (TR) | Not For New Designs | 1.54 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-8ENF9761VRES SMD 9.76K OHM 1% 1/4W 1206 |
40,091 | - |
|
Datasheet | ERJ-8EN | 1206 (3216 Metric) | Tape & Reel (TR) | Not For New Designs | 9.76 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
|
ERJ-XGNJ682YRES 6.8K OHM 5% 1/32W 01005 |
39,995 | - |
|
Datasheet | ERJ-XGN | 01005 (0402 Metric) | Tape & Reel (TR) | Active | 6.8 kOhms | ±5% | 0.03W, 1/32W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.006" (0.15mm) | 2 | - |
|
|
ERJ-XGNJ391YRES 390 OHM 5% 1/32W 01005 |
39,900 | - |
|
Datasheet | ERJ-XGN | 01005 (0402 Metric) | Tape & Reel (TR) | Active | 390 Ohms | ±5% | 0.03W, 1/32W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.006" (0.15mm) | 2 | - |
|
|
ERJ-8ENF1581VRES SMD 1.58K OHM 1% 1/4W 1206 |
39,653 | - |
|
Datasheet | ERJ-8EN | 1206 (3216 Metric) | Tape & Reel (TR) | Not For New Designs | 1.58 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-8ENF1053VRES SMD 105K OHM 1% 1/4W 1206 |
39,624 | - |
|
Datasheet | ERJ-8EN | 1206 (3216 Metric) | Tape & Reel (TR) | Not For New Designs | 105 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-XGNJ121YRES 120 OHM 5% 1/32W 01005 |
39,620 | - |
|
Datasheet | ERJ-XGN | 01005 (0402 Metric) | Tape & Reel (TR) | Active | 120 Ohms | ±5% | 0.03W, 1/32W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.006" (0.15mm) | 2 | - |
|

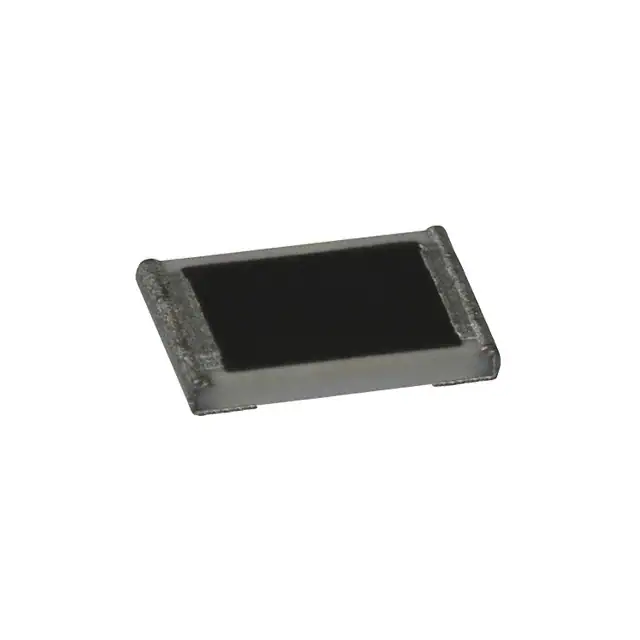

ERJ-XGNJ1R0YRES 1 OHM 5% 1/32W 01005 |
39,596 | - |
|
Datasheet | ERJ-XGN | 01005 (0402 Metric) | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 0.03W, 1/32W | Thick Film | - | -100/ +600ppm/°C | -55°C ~ 125°C | - | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.006" (0.15mm) | 2 | - |
|
|
ERJ-8ENF4533VRES SMD 453K OHM 1% 1/4W 1206 |
39,463 | - |
|
Datasheet | ERJ-8EN | 1206 (3216 Metric) | Tape & Reel (TR) | Not For New Designs | 453 kOhms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-8ENF14R7VRES SMD 14.7 OHM 1% 1/4W 1206 |
39,179 | - |
|
Datasheet | ERJ-8EN | 1206 (3216 Metric) | Tape & Reel (TR) | Not For New Designs | 14.7 Ohms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.028" (0.70mm) | 2 | - |
