Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERJ-P06D1302VRES SMD 13K OHM 0.5% 1/2W 0805 |
9,141 | - |
|
Datasheet | ERJ-P06 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 13 kOhms | ±0.5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-P06D1100VRES SMD 110 OHM 0.5% 1/2W 0805 |
8,768 | - |
|
Datasheet | ERJ-P06 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 110 Ohms | ±0.5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-P06D8200VRES SMD 820 OHM 0.5% 1/2W 0805 |
7,463 | - |
|
Datasheet | ERJ-P06 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 820 Ohms | ±0.5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-P06D4703VRES SMD 470K OHM 0.5% 1/2W 0805 |
4,500 | - |
|
Datasheet | ERJ-P06 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 470 kOhms | ±0.5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-P06D1800VRES SMD 180 OHM 0.5% 1/2W 0805 |
2,660 | - |
|
Datasheet | ERJ-P06 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 180 Ohms | ±0.5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|

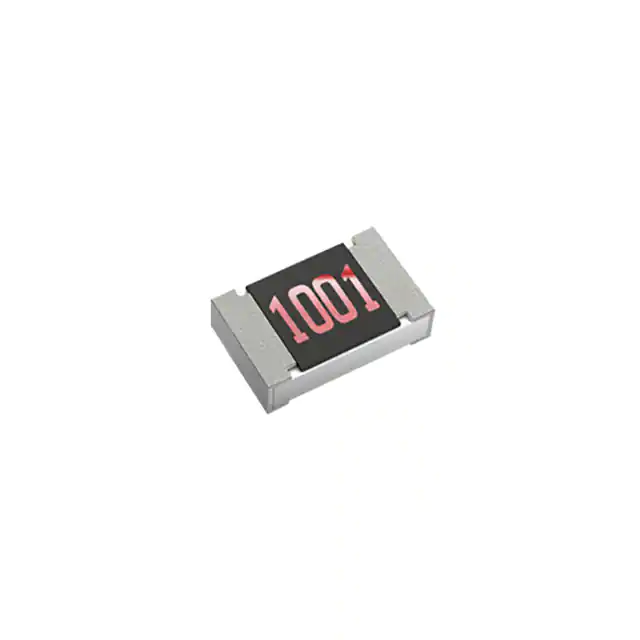

ERJ-U6RD1200VRES 120 OHM 0.5% 1/8W 0805 |
17,844 | - |
|
Datasheet | ERJ-U6R | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 120 Ohms | ±0.5% | 0.125W, 1/8W | Thick Film | Anti-Sulfur, Automotive AEC-Q200 | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-U6RD1000VRES 100 OHM 0.5% 1/8W 0805 |
2,758 | - |
|
Datasheet | ERJ-U6R | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±0.5% | 0.125W, 1/8W | Thick Film | Anti-Sulfur, Automotive AEC-Q200 | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-U6RD1003VRES 100K OHM 0.5% 1/8W 0805 |
1,130 | - |
|
Datasheet | ERJ-U6R | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 100 kOhms | ±0.5% | 0.125W, 1/8W | Thick Film | Anti-Sulfur, Automotive AEC-Q200 | ±50ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-6RQF5R6VRES 5.6 OHM 1% 1/8W 0805 |
26,516 | - |
|
Datasheet | ERJ-6R | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 5.6 Ohms | ±1% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, Current Sense | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
|
|
ERJ-6DQF1R1VRES 1.1 OHM 1% 1/2W 0805 |
22,735 | - |
|
Datasheet | ERJ-6D | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1.1 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Current Sense | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.028" (0.70mm) | 2 | - |
