Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5961515013FLED CBI 1.6MM BI-LVL ORNG SMD RA |
1,000 | - |
|
Datasheet | 596 | Tape & Reel (TR) | Active | Orange (x 2) | - | 2 High | 2mA | 5.5mcd | 30° | - | Round with Domed Top | 1.60mm Dia | 1.8V | Surface Mount, Right Angle |
|
FLPR6.0-SGLED CBI 3MM GRN THROUGH HOLE |
4,660 | - |
|
Datasheet | Flp | Bag | Active | Green | 568nm | - | 20mA | 120mcd | 20° | Clear | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole |
|

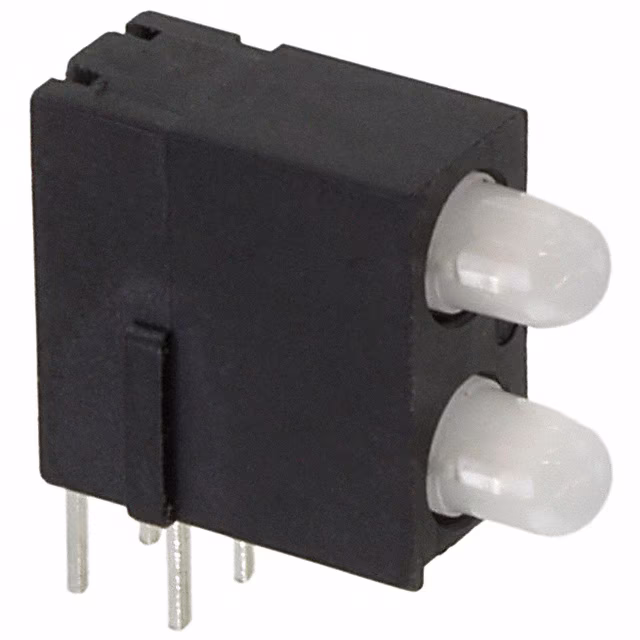

5530711400FLED CBI 3MM BI-LVL GRN/RED RA |
1,866 | - |
|
Datasheet | 553 | Bulk | Active | Green (x 1), Red (x 1) | 565nm, 635nm | 2 High | 10mA | 10mcd Green, 4.7mcd Red | 60° | Clear | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red | Through Hole, Right Angle |
|

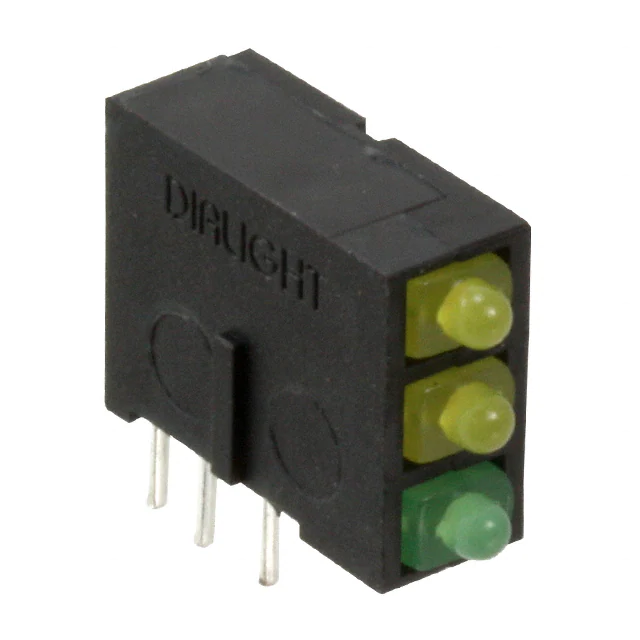

5700100332FLED CBI 2MM 3X1 GREEN/YLW RA |
4,846 | - |
|
Datasheet | 570 | Bulk | Active | Green (x 1), Yellow (x 2) | 565nm, 590nm | 3 High | 25mA Green, 30mA Yellow | 10mcd Green, 8mcd Yellow | 70° | Diffused | Round with Domed Top | 2.00mm Dia | 2.2V Green, 2.1V Yellow | Through Hole, Right Angle |
|
QBL7SB80D-MP8B2LED CBI 3MM 2X4 RED DIFF RA |
1,165 | - |
|
Datasheet | QBL7XX80D-MP8B2 | Tray | Active | Red (x 8) | 640nm | 2 High x 4 Wide | 30mA | 30mcd | 80° | Diffused | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle |
|

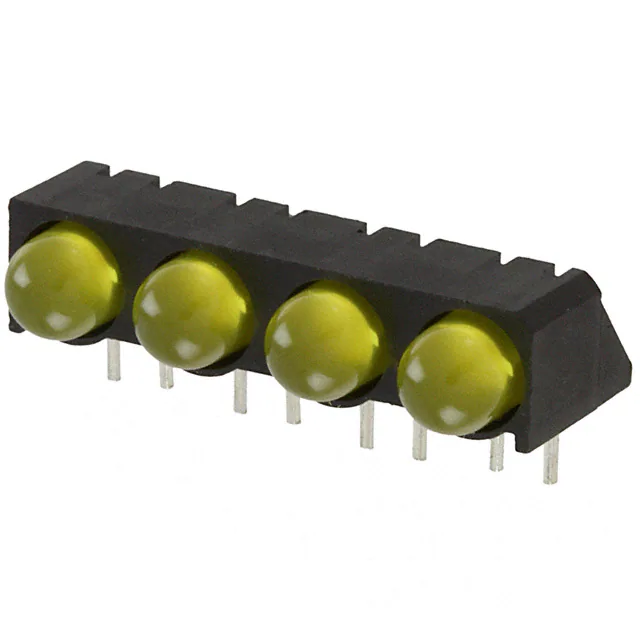

5500307004FLED CBI 5MM QUAD YLW RA PC MNT |
4,113 | - |
|
Datasheet | 550 | Bulk | Active | Yellow (x 4) | 585nm | 4 Wide | 20mA | 12.3mcd | 60° | Diffused | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|
XGMYKX10DLED CBI 5.08X1.78MM 10SEG Y VERT |
4,880 | - |
|
Datasheet | - | Tube | Active | Yellow | 590nm | Bar - 10 Wide, DIP | 10mA | 64.99mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 1.95V | Through Hole |
|
A01BFLED CBI GREEN THROUGH HOLE |
4,315 | - |
|
Datasheet | - | Tray | Active | Green | - | Single | 30mA | - | - | - | - | - | 2.1V | Through Hole |
|
5640700144FLED CBI 3X1 GRN/RED/YELLOW RA |
1,742 | - |
|
Datasheet | 564 | Bulk | Active | Green, Red (x 1), Green, Yellow (x 2) | 565nm, 635nm, 585nm | 3 High | - | 10mcd Green, 4.7mcd Red, 4.3mcd Green, 6.3mcd Yellow | 50° Green-Red, 80° Green-Yellow | - | - | - | 2.1V Green, 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|
XGMDKVGX10DLED CBI 5.08X1.78MM 10SEG G/R TH |
4,110 | - |
|
Datasheet | - | Tube | Active | Green, Red | 574nm Green, 645nm Red | Bar - 10 Wide, DIP | 10mA | 27.99mcd Green, 99.99mcd Red | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 2V Green, 1.85V Red | Through Hole |
|
0035.1271HOLDER LED 5MM GREEN RA |
2,945 | - |
|
Datasheet | SRL | - | Active | Green | - | Single | - | - | - | - | Round with Domed Top | 5mm, T-1 3/4 | - | Through Hole, Right Angle |
|
|
WP73JB/GDALED CBI 4.8MM GRN RA |
700 | - |
|
Datasheet | - | Bulk | Active | Green | 565nm | Single | 25mA | 40mcd | 60° | Diffused, Tinted | Round with Domed Top | 4.80mm Dia | 2.2V | Through Hole, Right Angle |
|
|
WP934RS/IDLED CBI 3MM RED DIFF RA |
824 | - |
|
Datasheet | - | Bulk | Active | Red | 627nm | Single | 30mA | 30mcd | 40° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle |
|
|
A264B/SUR/S530-A3LED CBI 2.9MM RED DIFF RA |
483 | - |
|
Datasheet | - | Bulk | Active | Red | 632nm | Single | 20mA | 125mcd | 60° | Diffused, Red | Round with Domed Top | 2.90mm Dia | 2V | Through Hole, Right Angle |
|
ELM14105SRCLED CBI 5MM RED THROUGH HOLE |
391 | - |
|
Datasheet | ELM1 | Tray | Active | Red | 645nm | Single | 20mA | 60mcd | 35° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 1.7V | Through Hole |
|
|
ELM22003GDLED CBI 3MM GRN DIFF 2LD |
3,706 | - |
|
Datasheet | ELM2 | Tray | Active | Green | 568nm | Single | 30mA | 25mcd | 35° | Diffused | Round with Domed Top | 3mm, T-1 | 2.1V | - |
|
XVB1LUY50DLED 5MM YLW DIFF RA BK HOUSING |
990 | - |
|
Datasheet | - | Bulk | Active | Yellow | 590nm | Single | 10mA | 30mcd | 60° | Diffused | - | - | 1.95V | Through Hole, Right Angle |
|
XVR1LUR69DLED CBI 4.7MM RED DIFFUSED RA |
500 | - |
|
Datasheet | - | Bag | Active | Red | 627nm | Single | 160mA | 29mcd | 60° | Diffused, Tinted | - | - | 1.9V | Through Hole, Right Angle |
|
|
H131CRD-120LED CBI 3MM RED DIFF RA |
4,193 | - |
|
Datasheet | H131C | Tray | Active | Red | 700nm | Single | 20mA | 2mcd | 40° | Diffused | Round with Domed Top | 3mm, T-1 | 2.1V | - |
|
|
H101CSGDLED CBI 3MM GRN DIFF RA |
305 | - |
|
Datasheet | H101C | Tray | Active | Green | 568nm | Single | 150mA | 55mcd | 45° | Diffused | Round with Domed Top | 3mm, T-1 | 2.2V | - |
