Application Specific Clock/Timing
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | PLL | Main Purpose | Input | Output | Number of Circuits | Ratio - Input:Output | Differential - Input:Output | Frequency - Max | Voltage - Supply | Operating Temperature | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMKDB1104Z100REXTIC CLOCK BUFFER PCIE 28-VFQFN |
1,208 |
1+：$3.57600 10+：$2.70800 25+：$2.49184 100+：$2.25352 |
|
Datasheet | LMKDB1xxx | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:4 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 28-VQFN (4x4) |
|
|
LMKDB1104Z85REXT4-output LP-HCSL clock buffer |
232 | - |
|
Datasheet | LMKDB1xxx | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | Clock | LP-HCSL | 1 | 1:4 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 28-VQFN (4x4) |
|

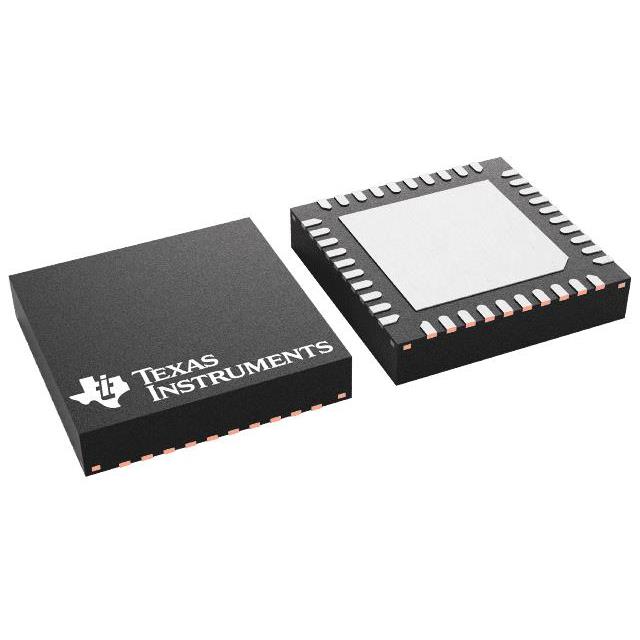

LMKDB1108Z85RKPR8-output LP-HCSL clock buffer |
2,478 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:8 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 40-VQFN (5x5) |
|
|
LMKDB1108Z100RKPR8-output LP-HCSL clock buffer |
2,435 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:8 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 40-VQFN (5x5) |
|
|
LMKDB1108Z85RKPT8-output LP-HCSL clock buffer |
240 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:8 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 40-VQFN (5x5) |
|
|
LMKDB1108Z100RKPT8-output LP-HCSL clock buffer fo |
220 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:8 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 40-VQFN (5x5) |
|
LMKDB1120Z85NPPRDB2000QL-COMPLIANT 20-OUTPUT CLO |
2,495 | - |
|
Datasheet | - | 80-VFLGA Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:20 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 80-TLGA (6x6) |
|
|
LMKDB1120Z100NPPRDB2000QL-COMPLIANT 20-OUTPUT CLO |
2,490 | - |
|
Datasheet | - | 80-VFLGA Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:20 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 80-TLGA (6x6) |
|
|
LMKDB1120Z100NPPTDB2000QL-COMPLIANT 20-OUTPUT CLO |
250 | - |
|
Datasheet | - | 80-VFLGA Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:20 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 80-TLGA (6x6) |
|
|
LMKDB1120Z85NPPTIC CLOCK BUFFER PCIE 80-VFLGA |
45 |
1+：$6.73600 10+：$5.21600 25+：$4.83680 |
|
Datasheet | - | 80-VFLGA Exposed Pad | Tape & Reel (TR) | Active | - | No | PCI Express (PCIe) | LP-HCSL | LP-HCSL | 1 | 1:20 | Yes/Yes | 400MHz | 1.71V ~ 1.89V, 2.97V ~ 3.6V | -40°C ~ 105°C (TA) | Surface Mount | - | - | 80-TLGA (6x6) |
