Clock Generators, PLLs, Frequency Synthesizers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Type | PLL | Input | Output | Number of Circuits | Ratio - Input:Output | Differential - Input:Output | Frequency - Max | Divider/Multiplier | Voltage - Supply | Operating Temperature | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDC1100-12HARD DISK MFM GENERATOR |
3,122 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
843031AGI-01LFIC CLOCK GENERATOR 8TSSOP |
3,444 | - |
|
Datasheet | FemtoClock® | 8-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | Clock Generator | Yes | Crystal | LVPECL | 1 | 1:1 | No/Yes | 340MHz | Yes/Yes | 2.375V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 8-TSSOP |
|
HMC700LP4ETRIC INTEGER-N/FRACTIONAL 24QFN |
4,103 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Integer-N/Fractional-N | Yes | CMOS | CMOS | 1 | 1:1 | Yes/No | 8GHz | Yes/No | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount | - | - | 24-QFN (4x4) |
|
84330CYLNIC FREQ SYNTH 32TQFP |
3,800 | - |
|
Datasheet | - | 32-LQFP | Tray | Obsolete | Not Verified | Frequency Synthesizer | Yes | Crystal | LVPECL | 1 | 1:1 | No/Yes | 700MHz | Yes/No | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 32-TQFP (7x7) |
|

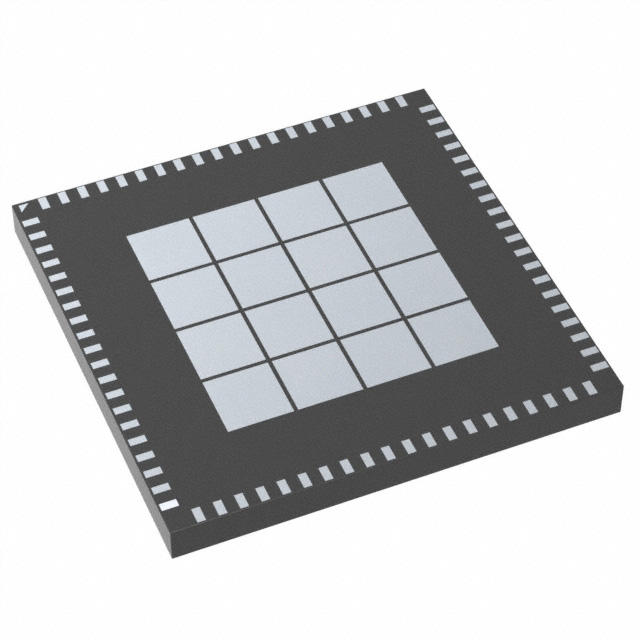

ZL30256LFG7IC JITTER ATTEN 80LGA |
1,630 | - |
|
Datasheet | - | 80-VFLGA | Tray | Active | Not Verified | Jitter Attenuator | Yes | CMOS | CMOS, HCSL, HSTL, LVDS, LVPECL | 3 | 10:18 | Yes/Yes | 1.045GHz | Yes/No | 1.71V ~ 1.89V, 3.135V ~ 3.465V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 80-LGA (11x11) |
|
HMC1033LP6GEIC CLOCK GEN 1:1 550MHZ 40-SMT |
3,254 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Strip | Obsolete | Not Verified | - | Yes | Clock | LVDS, LVPECL | 1 | 1:2 | No/Yes | 550MHz | Yes/No | 3.15V ~ 3.5V | -40°C ~ 85°C | Surface Mount | - | - | 40-SMT (6x6) |
|
8A34044C-000NLGIC CLOCK GENERATOR 72VFQFPN |
2,773 | - |
|
Datasheet | - | 72-VFQFN Exposed Pad | Tray | Obsolete | Not Verified | Clock Generator | Yes | Clock | CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, SSTL | 8 | 4:12 | Yes/Yes | 1GHz | Yes/No | 1.71V ~ 3.465V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 72-VFQFPN (10x10) |
|
840272AGILFIC FREQ TRANSLATOR ETH 16TSSOP |
2,833 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | - | Yes with Bypass | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL | LVCMOS, LVTTL | 1 | 2:2 | Yes/No | 25MHz | Yes/No | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 16-TSSOP |
|
CY7B9940V-5AXIIC FANOUT BUFFER 44TQFP |
100 | - |
|
Datasheet | RoboClockII™ Junior | 44-LQFP | Tray | Obsolete | Not Verified | Fanout Buffer (Distribution), Zero Delay Buffer | Yes | LVPECL, LVTTL | LVTTL | 1 | 4:10 | Yes/No | 200MHz | Yes/No | 2.97V ~ 3.63V | -40°C ~ 85°C | Surface Mount | - | - | 44-TQFP (10x10) |
|
CY25811SXIIC CLK/FREQ SYNTH 8SOIC |
1,755 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Clock/Frequency Synthesizer, Frequency Modulator, Spread Spectrum Clock Generator | Yes | Clock, Crystal, Resonator | Clock | 1 | 1:1 | No/No | 32MHz | Yes/Yes | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 8-SOIC |
|
CY7B994V-5AXCIC CLK BUFF 100TQFP |
2,552 | - |
|
Datasheet | RoboClock™ | 100-LQFP | Tray | Obsolete | Not Verified | Clock Buffer, Fanout Distribution | Yes | LVPECL, LVTTL | LVTTL | 1 | 4:18 | No/No | 200MHz | Yes/Yes | 2.97V ~ 3.63V | 0°C ~ 70°C | Surface Mount | - | - | 100-TQFP (14x14) |
|
PEF2047HV1.2MTSS (MEMORY TIME SWITCH LARGE) |
1,446 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CY7B994V-5BBCIC CLK BUFF 100TBGA |
2,203 | - |
|
Datasheet | RoboClock™ | 100-LBGA | Tray | Obsolete | Not Verified | Clock Buffer, Fanout Distribution | Yes | LVPECL, LVTTL | LVTTL | 1 | 4:18 | No/No | 200MHz | Yes/Yes | 2.97V ~ 3.63V | 0°C ~ 70°C | Surface Mount | - | - | 100-TBGA (11x11) |
|
D82C284-8PROCESSOR SPECIFIC CLOCK GENERAT |
1,017 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CY7B994V-2BBIIC CLK BUFF 100TBGA |
4,716 | - |
|
Datasheet | RoboClock™ | 100-LBGA | Tray | Obsolete | Not Verified | Clock Buffer, Fanout Distribution | Yes | LVPECL, LVTTL | LVTTL | 1 | 4:18 | No/No | 200MHz | Yes/Yes | 2.97V ~ 3.63V | -40°C ~ 85°C | Surface Mount | - | - | 100-TBGA (11x11) |
|
8T49N488A-000ASGIIC CLK GENERATOR LVPECL 80BGA |
2,175 | - |
|
Datasheet | FemtoClock® NG | 80-LBGA | Tray | Obsolete | Not Verified | - | Yes with Bypass | HCSL, LVDS, LVHSTL, LVPECL | LVDS | 1 | 9:8 | Yes/Yes | 644.53MHz | Yes/Yes | 2.375V ~ 2.625V | -40°C ~ 85°C | Surface Mount | - | - | 80-CABGA (10x10) |
|
SP8853/A/HC1.3 GHZ PROFESSIONAL SYNTHESISER |
3,953 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP8854E/KG/HCARPLL FREQUENCY SYNTHESIZER, BIPOL |
3,448 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MD82C284-6/BCLOCK GENERATOR |
2,441 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP8853/AC/DG1.3 GHZ PROFESSIONAL SYNTHESISER |
1,060 | - |
|
Datasheet | * | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
