Programmable Timers and Oscillators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Count | Frequency | Voltage - Supply | Current - Supply | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4536BPWRE4IC OSC PROG TIMER 5MHZ 16-TSSOP |
0 |
2000+：$0.15766 4000+：$0.15290 6000+：$0.15051 10000+：$0.14787 14000+：$0.14633 20000+：$0.14485 50000+：$0.14166 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Programmable Timer | 2 ~ 2²⁴ | 5MHz | 3V ~ 18V | 3 mA | -55°C ~ 125°C | 16-TSSOP | Surface Mount | - | - |
|
|
CD4536BPWRG4IC OSC PROG TIMER 5MHZ 16TSSOP |
2,124 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Programmable Timer | 2 ~ 2²⁴ | 5MHz | 3V ~ 18V | 3 mA | -55°C ~ 125°C | 16-TSSOP | Surface Mount | - | - |
|
SA555NIC OSC SINGLE TIMER 500KHZ 8-DIP |
4,427 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 500kHz | 4.5V ~ 16V | 10 mA | -40°C ~ 105°C | 8-DIP | Through Hole | - | - |
|
NE555PE4SINGLE PRECISION TIMER 8-PDIP 0 |
2,764 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 555 Type, Timer/Oscillator (Single) | - | 1mHz ~ 100kHz | 4.5V ~ 16V | 15 mA | 0°C ~ 70°C (TA) | 8-PDIP | Through Hole | - | - |
|
NE555DIC OSC SGL TIMER 500KHZ 8-SOIC |
3,541 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 500kHz | 4.5V ~ 16V | 10 mA | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|
ICM7555ID/DG,112IC OSC SINGLE TIMER 500KHZ 8SOIC |
4,411 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 500kHz | 3V ~ 16V | 180 µA | -40°C ~ 85°C | 8-SO | Surface Mount | - | - |
|
HCF4541BEYIC OSC PROG TIMER 100KHZ 14DIP |
2,434 | - |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Programmable Timer | - | 100kHz | 3V ~ 20V | - | -55°C ~ 125°C | 14-DIP | Through Hole | - | - |
|
|
KA556IC OSC TIMER DUAL 14-DIP |
1,938 | - |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | 555 Type, Timer/Oscillator (Dual) | - | - | 4.5V ~ 16V | 16 mA | 0°C ~ 70°C | 14-MDIP | Through Hole | - | - |
|
|
NA555PE4IC OSC SINGLE TIMER 1MHZ 8-DIP |
0 |
1000+：$0.24366 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | 555 Type, Timer/Oscillator (Single) | - | 1mHz ~ 100kHz | 4.5V ~ 16V | 15 mA | -40°C ~ 105°C (TA) | 8-PDIP | Through Hole | - | - |
|
|
ICM7555IN/01,112IC OSC SINGLE TIMER 500KHZ 8-DIP |
4,121 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 500kHz | 3V ~ 16V | 180 µA | -40°C ~ 85°C | 8-DIP | Through Hole | - | - |
|

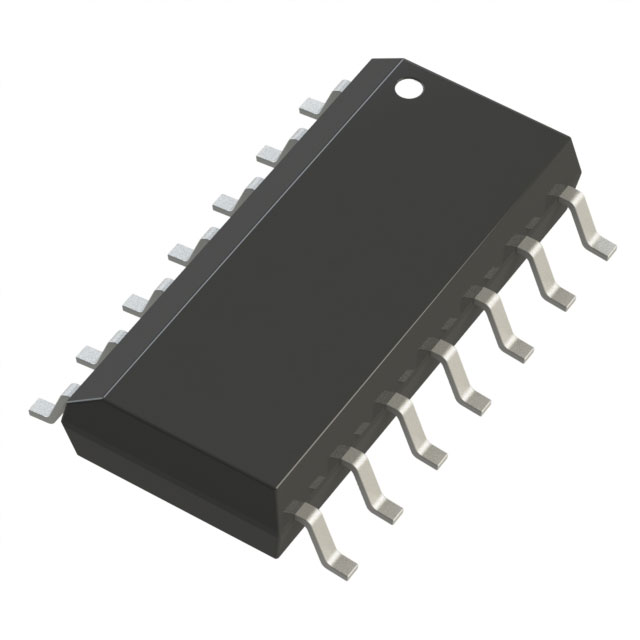

HEF4541BT,118IC OSC PROG TIMER 36MHZ 14SOIC |
3,444 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Programmable Timer | 65536 | 36MHz | 3V ~ 15V | 20 µA | -40°C ~ 125°C (TA) | 14-SO | Surface Mount | - | - |
|
HCF4536BEYIC OSC PROG TIMER 5MHZ 16DIP |
3,859 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Programmable Timer | - | 5MHz | 3V ~ 20V | - | -55°C ~ 125°C | 16-DIP | Through Hole | - | - |
|
|
TS555INIC OSC SINGLE TIMER 2.7MHZ 8-DIP |
3,962 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 2.7MHz | 2V ~ 16V | 65 µA | -40°C ~ 125°C | 8-DIP | Through Hole | - | - |
|
|
CD4536BEG4IC OSC PROG TIMER 5MHZ 16DIP |
3,234 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | Programmable Timer | 2 ~ 2²⁴ | 5MHz | 3V ~ 18V | 3 mA | -55°C ~ 125°C | 16-PDIP | Through Hole | - | - |
|
NE555DTIC OSC SINGLE TIMER 500KHZ 8SOIC |
3,285 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 500kHz | 4.5V ~ 16V | 10 mA | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|
|
SA556NG4IC OSC TIMER DUAL 100KHZ 14-DIP |
1,724 | - |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | 555 Type, Timer/Oscillator (Dual) | - | 100kHz | 4.5V ~ 16V | 20 mA | -40°C ~ 85°C | 14-PDIP | Through Hole | - | - |
|
NE556DIC OSC TIMER DUAL 500KHZ 14-SOIC |
1,767 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 555 Type, Timer/Oscillator (Dual) | - | 500kHz | 4.5V ~ 16V | 20 mA | 0°C ~ 70°C | 14-SO | Surface Mount | - | - |
|
|
SA555DIC OSC SGL TIMER 500KHZ 8-SOIC |
2,661 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 500kHz | 4.5V ~ 16V | 10 mA | -40°C ~ 105°C | 8-SOIC | Surface Mount | - | - |
|
HCF4541M013TRIC OSC PROG TIMER 100KHZ 14SOIC |
3,006 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Programmable Timer | - | 100kHz | 3V ~ 20V | - | -55°C ~ 125°C | 14-SO | Surface Mount | - | - |
|
|
TS555CDIC OSC SGL TIMER 2.7MHZ 8-SOIC |
2,046 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 555 Type, Timer/Oscillator (Single) | - | 2.7MHz | 2V ~ 16V | 65 µA | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
