Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-18-E15JCMC 1.5MH 18A 2LN TH |
1,919 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 18A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

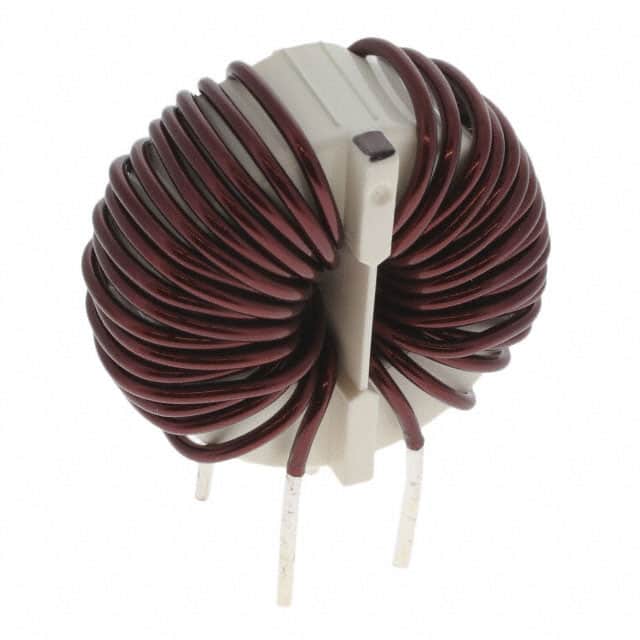

SC-08-700CMC 7MH 8A 2LN TH |
2,198 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 8A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCT19XV-100-1R1A009JVCMC 300UH 10A 2LN TH AEC-Q200 |
1,337 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-190-1R5A005JVCMC 93UH 19A 2LN TH AEC-Q200 |
4,361 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 93 µH @ 100 kHz | 19A | 1.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-220-1R6A004JVCMC 60UH 22A 2LN TH AEC-Q200 |
1,281 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT19XV-120-1R2A007JVCMC 180UH 12A 2LN TH AEC-Q200 |
4,763 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 180 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SC-10-340CMC 3.4MH 10A 2LN TH |
1,900 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.4 mH @ 100 kHz | 10A | 32mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-15-100CMC 1MH 15A 2LN TH |
3,606 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SC-15-201CMC 2MH 15A 2LN TH |
4,239 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-12JHCMC 1.2MH 15A 2LN TH |
100 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 15A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
