Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPDL485025-1000-2P-TCMC 2A 2LN 1K OHM SMD |
4,445 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 24mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-100-2P-TCMC 6.5A 2LN 100 OHM SMD |
2,709 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 6.5A | 9mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-1400-2P-TCMC 1.5A 2LN 1.4K OHM SMD |
2,237 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 40mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SPDL2012-361-2P-TCMC 300MA 2LN 360OHM SMD AECQ200 |
2,004 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL485025-250-2P-TCMC 5A 2LN 250 OHM SMD |
3,166 |
1+：$1.10400 10+：$0.90880 25+：$0.84096 50+：$0.79280 100+：$0.74744 250+：$0.69155 500+：$0.65206 1000+：$0.63648 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 14mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-350-2P-TCMC 4A 2LN 350 OHM SMD |
2,486 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 350 Ohms @ 100 MHz | - | 4A | 28mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-500-2P-TCMC 4A 2LN 500 OHM SMD |
1,716 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 19mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
LPTC-V-0.85-5-35CMC 850UH 5A 2LN TH |
980 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 850 µH @ 1 kHz | 5A | 35mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

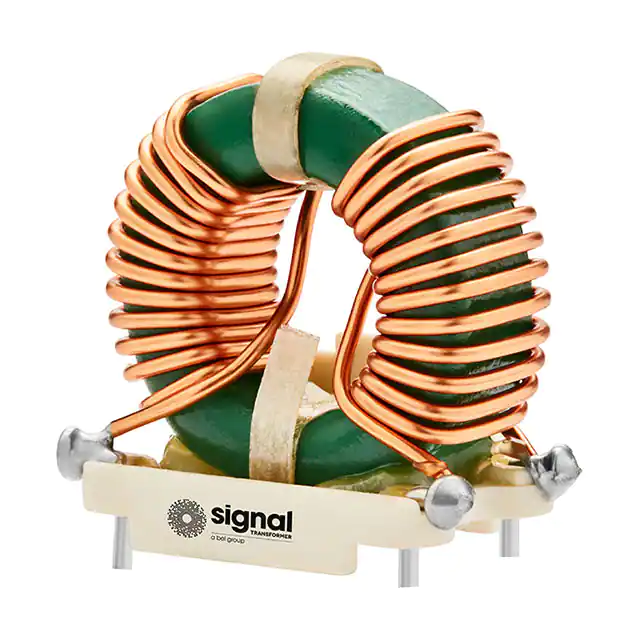

HCTC-1-10CMC 1MH 10A 2LN TH |
3,352 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
SPDL764WM-500-2P-TCMC 4A 2LN 500 OHM SMD |
1,226 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 15Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
