Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60405S6123X240CMC 810UH 40A 3LN 680 OHM TH |
921 | - |
|
Datasheet | Horizontal, 6 PC Pin | - | 3 | 680 Ohms @ 100 kHz | 810 µH @ 100 kHz | 40A | - | - | - | -55°C ~ 60°C | - | - | - | - | - |
|
T60405R6126X216CMC 1.28MH 16A 2LN 1.3K OHM TH |
2,456 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 1.3 kOhms @ 100 kHz | 1.28 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6131X204CMC 2.5MH 4.5A 2LN 2.32K OHM TH |
497 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 2.32 kOhms @ 100 kHz | 2.5 mH @ 100 kHz | 4.5A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

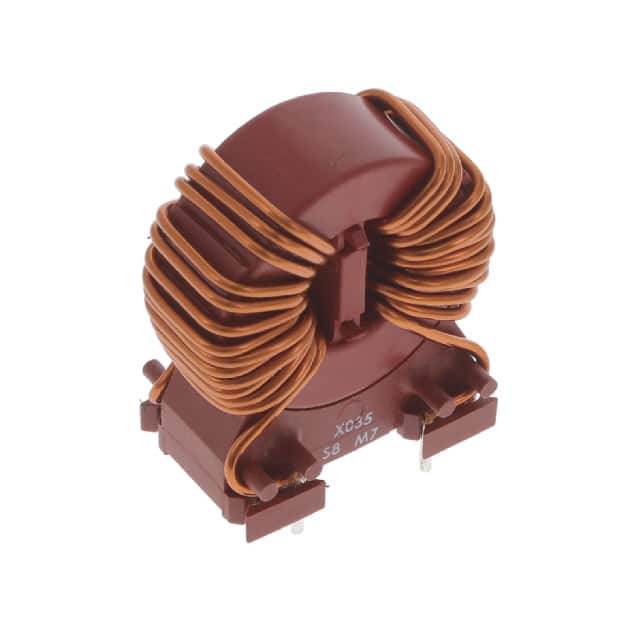

T60405R6166X035CMC 22A TH |
2,364 | - |
|
Datasheet | - | - | - | - | - | 22A | - | - | - | - | - | - | - | - | - |
|
|
T60405R6166X206CMC 7.58MH 6A 2LN 8.5K OHM TH |
160 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 8.5 kOhms @ 100 kHz | 7.58 mH @ 100 kHz | 6A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
T60405S6123X308CMC 2.5MH 11A 2LN 2.6 KOHM TH |
413 |
1+：$9.41600 10+：$7.74480 25+：$7.16576 50+：$7.15792 |
|
Datasheet | Horizontal, 6 PC Pin | - | 2 | 2.6 kOhms @ 100 kHz | 2.5 mH @ 100 kHz | 11A | - | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
T60405S6123X312CMC 3.7MH 12A 2LN 2.65K OHM TH |
107 | - |
|
Datasheet | Horizontal, 6 PC Pin | - | 2 | 2.65 kOhms @ 100 kHz | 3.7 mH @ 100 kHz | 12A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

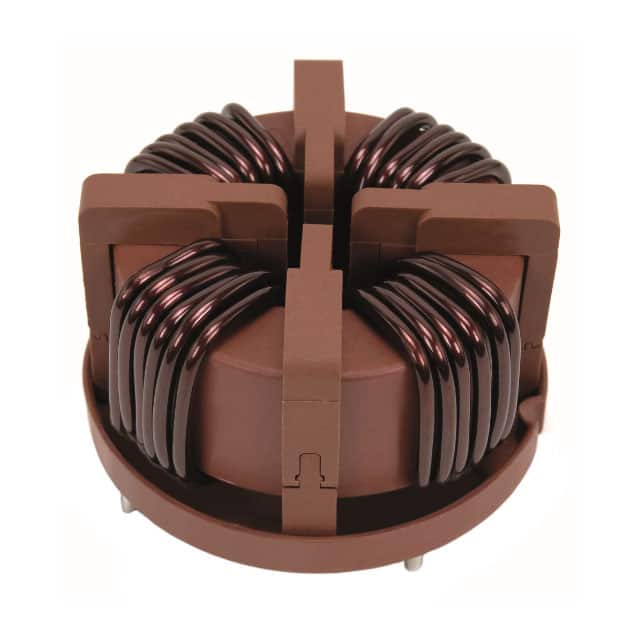

T60405S6123X401CMC 832UH 20A 4LN 860 OHM TH |
121 |
1+：$17.20800 16+：$13.30450 32+：$12.48775 64+：$11.72550 112+：$11.14729 |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 860 Ohms @ 100 kHz | 832 µH @ 100 kHz | 20A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
T60405R6128X5306128X530 |
216 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 1.4 kOhms @ 100 kHz | 1.4 mH @ 100 kHz | 30A | 2.7mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
T60405S6123X402CMC 720UH 30A 4LN 750 OHM TH |
456 | - |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 750 Ohms @ 100 kHz | 720 µH @ 100 kHz | 30A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
