Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
47721-490CMC 49UH 22A 2LN 140OHM CHAS MNT |
121 | - |
|
Datasheet | Nonstandard | - | 2 | 140 Ohms @ 1 MHz | 49 µH @ 10 kHz | 22A | 3.5mOhm | - | - | - | - | - | - | - | - |
|
47718-232CMC 2.26MH 8A 2LN 7 KOHM TH |
52 |
1+：$24.79200 |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 7 kOhms @ 1 MHz | 2.26 mH @ 10 kHz | 8A | 40mOhm | - | - | - | - | - | - | - | - |
|

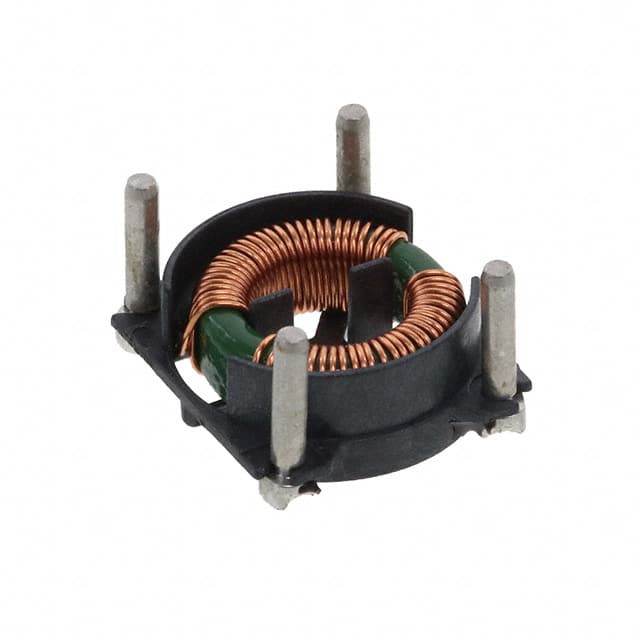

47724-142CMC 1.4MH 4A 2LN 5.2KOHM CHAS MT |
4,589 | - |
|
Datasheet | Nonstandard | - | 2 | 5.2 kOhms @ 1 MHz | 1.4 mH @ 10 kHz | 4A | 75mOhm | - | - | - | - | - | - | - | - |
|
|
36-00029-01CMC 350UH 40A 2LN TH |
3,235 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 350 µH @ 1 kHz | 40A | 2.2mOhm | 250V | - | - | - | - | - | - | - |
|
|
49390-221INDUCTOR BIFILAR COMMON MODE A |
1,582 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 700 Ohms @ 1 MHz | 220 µH @ 10 kHz | 10.5A (Typ) | 11mOhm | - | - | - | - | - | - | - | - |
|
|
36-00037CMC 330UH 20A 2LN SMD |
0 |
1+：$24.07200 |
|
Datasheet | Nonstandard | - | 2 | - | 330 µH @ 1 kHz | 20A | 5mOhm | - | - | - | - | - | - | - | - |
|
|
36-00029-04CMC 950UH 10A 2LN TH |
2,695 | - |
|
Datasheet | Horizontal, No Base, 2 PC Pins | - | 2 | - | 950 µH @ 1 kHz | 10A | 10mOhm | - | - | - | - | - | - | - | - |
|
|
36-00029-0710 UH, 60A COMMON MODE INDUCT |
2,137 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
36-00029-0670 UH, 80A COMMON MODE INDUCTO |
3,978 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
