Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF4532-110YCMC 11UH 300MA 2LN 700 OHM SMD |
5,972 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 10 MHz | 11 µH @ 100 kHz | 300mA | 800mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

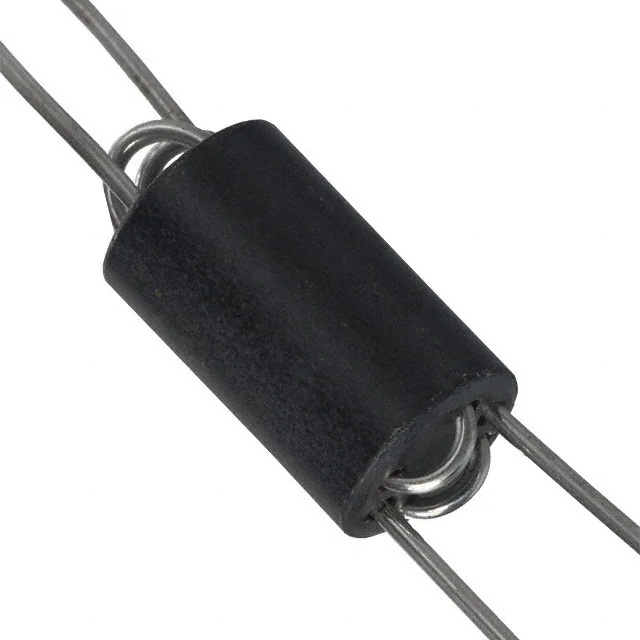

FB20011-3B-RCCMC 2LN 430 OHM TH |
1,761 | - |
|
Datasheet | Axial - 4 Leads | - | 2 | 430 Ohms @ 100 MHz | - | - | - | - | - | - | - | - | - | - | - |
|
SRF3225TABM-201YCMC 200UH 70MA 2LN 10KOHM SMD |
870 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 10 kOhms @ 10 MHz | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DR331-475BECMC 4.7MH 200MA 2LN SMD |
181,229 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 4.7 mH @ 100 kHz | 200mA | 700mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-113BECMC 11UH 500MA 2LN SMD |
22,370 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 500mA | 120mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-225BECMC 2.2MH 300MA 2LN SMD |
9,875 |
1+：$0.79200 10+：$0.65120 25+：$0.60256 50+：$0.56816 100+：$0.53568 250+：$0.49562 500+：$0.46730 |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 300mA | 700mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-253AECMC 25UH 500MA 2LN SMD |
8,210 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 25 µH @ 100 kHz | 500mA | 200mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-474BECMC 470UH 500MA 2LN SMD |
9,199 |
1+：$0.83200 10+：$0.68400 25+：$0.63264 50+：$0.59648 100+：$0.56240 250+：$0.52029 500+：$0.49058 |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 470 µH @ 100 kHz | 500mA | 280mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
SRF4532TA-282YCMC 10UH 2800 OHM 0.9A SMD |
1,314 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 100 MHz | 10 µH @ 100 kHz | 900mA | 350mOhm | 50V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DR334A-105BECMC 1000UH 500MA 2LN 2.8KOHM SMD |
1,582 | - |
|
Datasheet | - | - | 2 | 2.8 kOhms @ 1 MHz | 1000 µH @ 100 kHz | 500mA | 400mOhm | 80V | 42V | -40°C ~ 135°C | AEC-Q200 | - | - | - | - |
