Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P8228NLCURR SENSE XFMR 1:100 10A SMD |
2,795 | - |
|
Datasheet | P822X | Tray | Active | 50kHz ~ 1MHz | Invasive | 10 A | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.190" (4.83mm) | Gull Wing |
|
PA1005.050NLCURR SENSE XFMR 1:50 20A SMD |
491 | - |
|
Datasheet | - | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.070QNLCURR SENSE XFMR 1:70 20A SMD |
560 | - |
|
Datasheet | - | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.070QNLTCURR SENSE XFMR 1:70 20A SMD |
900 | - |
|
Datasheet | PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
PMS6322.100NLTTRANSF CURRENT SENSE 1:100 50A |
4,108 | - |
|
Datasheet | PMS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 4.5 mH | - | 1:100 | - | 500µOhm Primary, 2.6Ohm Secondary (Max) | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.295" (7.50mm) | Gull Wing |
|
|
PMS6322.200NLTTRANSF CURRENT SENSE 1:200 50A |
2,020 | - |
|
Datasheet | PMS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 17.5 mH | - | 1:200 | - | 500µOhm Primary, 12Ohm Secondary (Max) | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.295" (7.50mm) | Gull Wing |
|

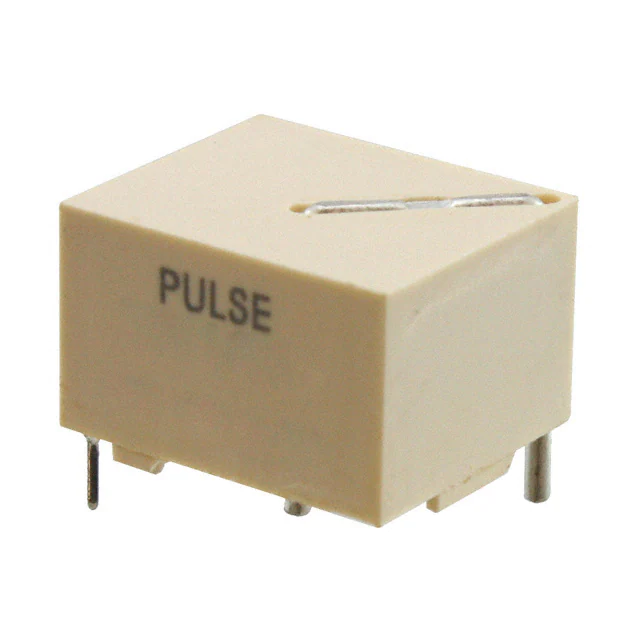

FIS115NLCURR SENSE XFMR 1:100 25A T/H |
3,895 | - |
|
Datasheet | FIS 1X5 | Tube | Active | 500kHz Max | Invasive | - | 18 mH | 350VµS | 1:100 | - | 2Ohm Max | - | Through Hole | 0.693" L x 0.591" W (17.60mm x 15.00mm) | 0.492" (12.50mm) | PC Pin |
|
PB0027NLCURR SENSE XFMR 200:1 35A SMD |
1,027 | - |
|
Datasheet | PB002XNL | Tray | Active | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | - | 0.42mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
PA0368.070NLCURR SENSE XFMR 1:70 4A SMD |
1,394 | - |
|
Datasheet | - | Tube | Active | 50kHz ~ 1MHz | Invasive | 4 A | 3.3 mH | - | 1:70 | - | 4mOhm Primary, 1.2Ohm Secondary | - | Surface Mount | 0.285" L x 0.352" W (7.25mm x 8.25mm) | 0.124" (3.15mm) | - |
|

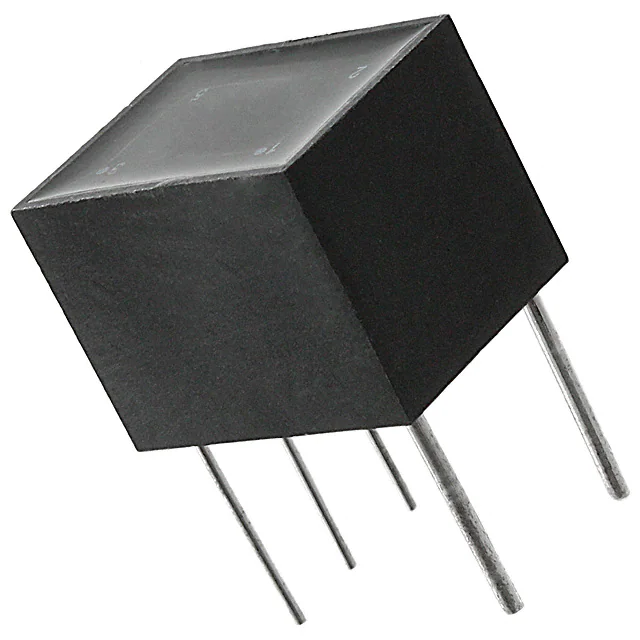

PE-63619NLCURR SENSE XFMR 20A T/H |
2,742 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200CT:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
