Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CST306-3TCURR SENSE XFMR 25A T/H |
0 |
1+：$2.63200 10+：$2.38160 25+：$2.28672 50+：$2.21696 100+：$2.14896 250+：$2.06163 500+：$1.99758 1000+：$1.93521 |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 55 mH | 2000VµS | - | 200CT:1 | 3.75Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
CST-1005CURR SENSE XFMR 5A T/H |
1,665 | - |
|
Datasheet | CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
|
CST306-2ACURR SENSE XFMR 25A T/H |
4,594 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 14 mH | 1000VµS | - | 100:1 | 1.55Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|

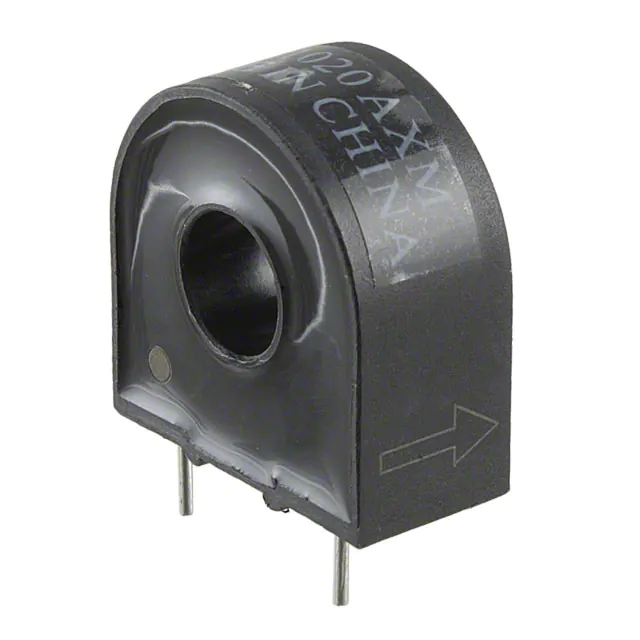

CST-1020CURR SENSE XFMR 20A T/H |
1,304 | - |
|
Datasheet | CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
CST206-1TCURR SENSE XFMR 110A T/H |
1,435 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 110 A | 14 mH | 2000VµS | - | 100:1 | 580mOhm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|

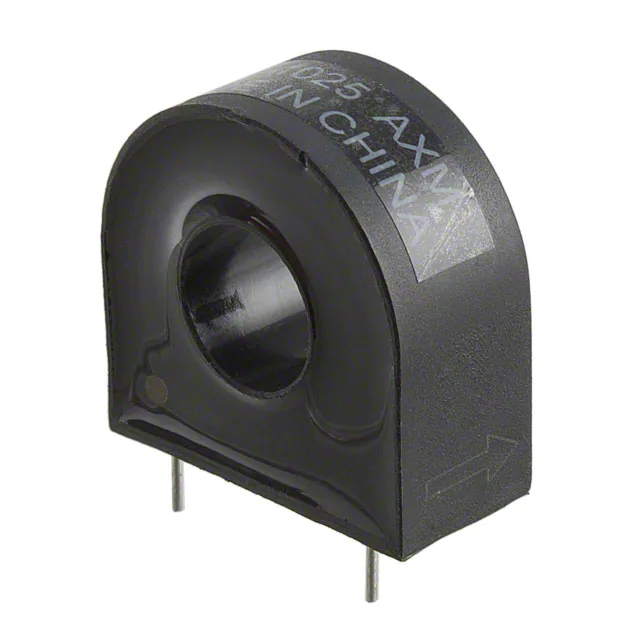

CST-1025CURR SENSE XFMR 25A T/H |
130 |
1+：$6.32800 10+：$5.70880 25+：$5.47712 50+：$5.30720 100+：$5.14168 250+：$4.92973 500+：$4.77450 1000+：$4.62358 |
|
Datasheet | CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 25 A | - | - | - | 1000:1 | 46Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
CST25-0200CURR SENSE XFMR 1:120 125MA TH |
158 | - |
|
Datasheet | CST | Bulk | Active | 50kHz ~ 500kHz | Invasive | 25 A | 76 mH | 700VµS | 1:200 | - | 4.5Ohm | - | Through Hole | 0.669" L x 0.591" W (17.00mm x 15.00mm) | 0.472" (12.00mm) | PC Pin |
|
CSE185LCURR SENSE XFMR 1:50 3A T/H |
269 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 400Hz | Invasive | 3 A | - | - | 1:50 | - | 19.5mOhm Primary, 23Ohm Secondary | - | Through Hole | 0.846" L x 0.945" W (21.50mm x 24.00mm) | 0.709" (18.00mm) | PC Pin |
|
|
CST306-1TCURR SENSE XFMR 35A T/H |
912 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 35 A | 3.5 mH | 500VµS | - | 50CT:1 | 340mOhm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|

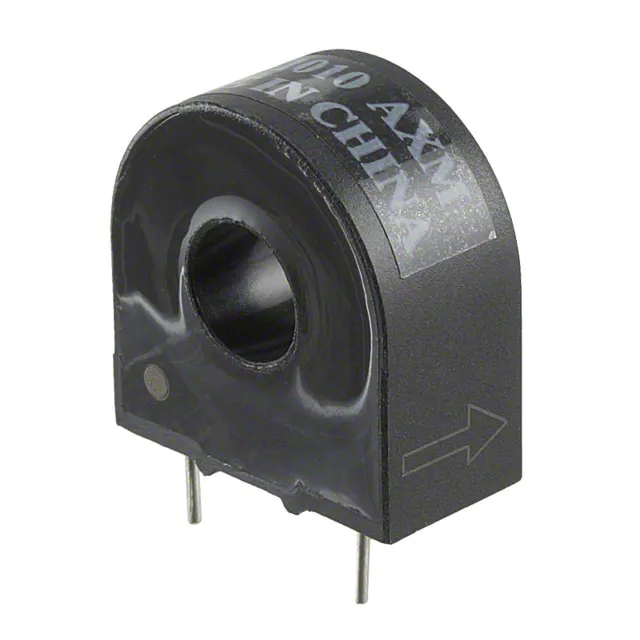

CST-1010CURR SENSE XFMR 10A TH |
166 | - |
|
Datasheet | CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
