Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

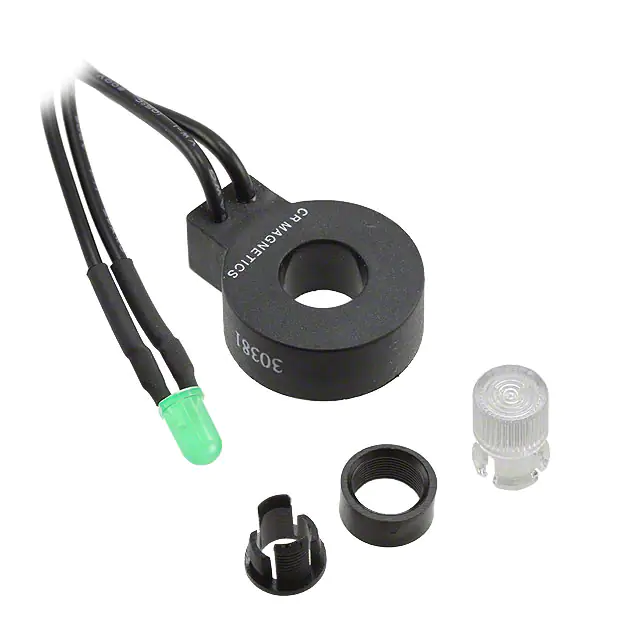

CR2550-GCURR SENSE XFMR IN-LINE |
131 |
1+：$14.58400 10+：$13.13840 25+：$12.59776 50+：$12.20176 100+：$11.81664 250+：$11.32426 500+：$10.96416 |
|
Datasheet | CR2550 | Bulk | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.094" L x 0.866" W (27.80mm x 22.00mm) | - | - |
|
CR2SFT-101CURR SENSE XFMR 100A T/H |
61 |
1+：$17.58400 10+：$15.83920 25+：$15.18592 50+：$14.70720 100+：$14.24208 250+：$13.64739 500+：$13.21258 |
|
Datasheet | CR2 | Bulk | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | 100:5 | - | - | Chassis Mount | 2.681" L x 2.000" W (68.10mm x 44.50mm) | 2.681" (68.10mm) | Stud |
|
CR45-GCURR SENSE XFMR PANEL MOUNT |
1,403 | - |
|
Datasheet | CR45 | Bulk | Active | 50Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Panel Mount | 0.949" L x 0.461" W (24.10mm x 11.70mm) | 1.039" (26.40mm) | - |
|

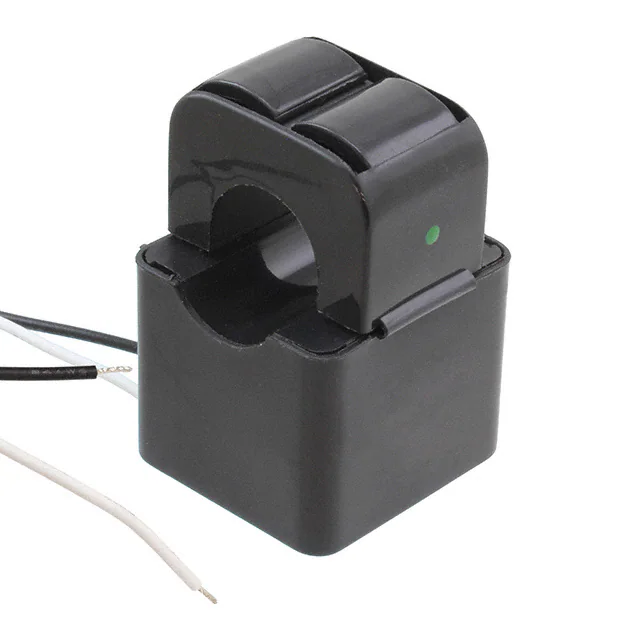

CR3111-3000CURR SENSE XFMR 100A IN-LINE |
2,070 | - |
|
Datasheet | CR3100 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Split Core) | 100 A | - | - | - | - | 390Ohm | - | Free Hanging (In-Line) | 1.236" L x 1.220" W (31.40mm x 31.00mm) | 1.772" (45.00mm) | Wire Leads |
|
CRZ8410-1K4WZERO SEQUENCE CURRENTTRANSFORMER |
2 |
1+：$11.37600 10+：$10.25120 25+：$9.83104 50+：$9.52320 100+：$9.22368 250+：$8.84048 500+：$8.56013 |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | - | - | - | 1:1000:4 | - | 57Ohm Secondary | - | Free Hanging (In-Line) | 1.083" L x 0.941" W (27.50mm x 23.90mm) | 0.37" (9.39mm) | Wire Leads |
|
|
CRZ8345-1K5WZERO SEQUENCE CURRENTTRANSFORMER |
2,278 | - |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | - | - | - | 1:1000:5 | - | 55Ohm | - | Through Hole | 1.258" L x 1.201" W (31.95mm x 30.50mm) | 0.374" (9.50mm) | PC Pin |
|
|
CRZ8345-2K5WZERO SEQUENCE CURRENTTRANSFORMER |
2,144 | - |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | - | - | - | 1:1000:5 | - | 115Ohm | - | Through Hole | 1.258" L x 1.201" W (31.95mm x 30.50mm) | 0.374" (9.50mm) | PC Pin |
|
|
CRZ8445-2K5WZERO SEQUENCE CURRENTTRANSFORMER |
1,139 | - |
|
Datasheet | CRZ | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | - | - | - | 1:2000:5 | - | 115Ohm | - | Free Hanging (In-Line) | 1.295" L x 1.201" W (32.90mm x 30.50mm) | 0.374" (9.50mm) | Wire Leads |
|
|
CRZ8445-1K5WZERO SEQUENCE CURRENTTRANSFORMER |
2,921 | - |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | - | - | - | 1:1000:5 | - | 55Ohm Secondary | - | Free Hanging (In-Line) | 1.295" L x 1.201" W (32.90mm x 30.50mm) | 0.374" (9.50mm) | Wire Leads |
|
|
CRZ8465-1K5WZERO SEQUENCE CURRENTTRANSFORMER |
3,206 | - |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | - | - | - | 1:1000:5 | - | - | - | Free Hanging (In-Line) | 2.165" L x 2.047" W (55.00mm x 52.00mm) | 0.472" (12.00mm) | Wire Leads |
