Current Sensors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Measuring | Sensor Type | Current - Sensing | Number of Channels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage - Supply | Response Time | Current - Supply (Max) | Operating Temperature | Grade | Qualification | Polarization | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACS758LCB-100B-PFF-TSENSOR CURRENT HALL 100A 5-CB |
1,680 | - |
|
Datasheet | - | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | 20mV/A | DC ~ 120kHz | ±1.25% | ±2.4% | 3V ~ 5.5V | 4µs | 13.5mA | -40°C ~ 150°C | Automotive | AEC-Q100 | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS758ECB-200U-PFF-TSENSOR CURRENT HALL 200A 5-CB |
1,668 | - |
|
Datasheet | - | 5-CB Formed Leads, PFF | Tube | Active | DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | 20mV/A | DC ~ 120kHz | ±1% | ±1.2% | 3V ~ 5.5V | 4µs | 13.5mA | -40°C ~ 85°C | Automotive | AEC-Q100 | Unidirectional | Through Hole | 5-CB Module |
|
|
ACS758LCB-100U-PFF-TSENSOR CURRENT HALL 100A 5-CB |
1,265 | - |
|
Datasheet | - | 5-CB Formed Leads, PFF | Tube | Active | DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | 40mV/A | DC ~ 120kHz | ±1.25% | ±2.4% | 3V ~ 5.5V | 4µs | 13.5mA | -40°C ~ 150°C | Automotive | AEC-Q100 | Unidirectional | Through Hole | 5-CB Module |
|
|
ACS758LCB-050U-PFF-TSENSOR CURRENT HALL 50A 5-CB |
1,162 | - |
|
Datasheet | - | 5-CB Formed Leads, PFF | Tube | Active | DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | 60mV/A | DC ~ 120kHz | ±1% | ±2% | 3V ~ 5.5V | 4µs | 13.5mA | -40°C ~ 150°C | Automotive | AEC-Q100 | Unidirectional | Through Hole | 5-CB Module |
|
|
ACS756KCB-050B-PFF-TSENSOR CURRENT HALL |
189 | - |
|
Datasheet | - | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | 40mV/A | DC ~ 120kHz | ±1.8% | ±7.5% | 3V ~ 5.5V | 3µs | 14mA | -40°C ~ 125°C | - | - | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS770LCB-100U-PFF-TCURRENT SENSOR HE/OL 100A 5-CB |
0 |
1+：$8.69600 5+：$7.87840 10+：$7.57360 34+：$7.09530 68+：$6.85518 102+：$6.72416 510+：$6.26470 1020+：$6.09342 |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | 40mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 150°C | - | - | Unidirectional | Through Hole | 5-CB Module |
|
|
ACS770LCB-050B-PFF-TSENSOR CURRENT HALL 50A AC/DC |
11,486 | - |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | 40mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 150°C | - | - | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS759ECB-200B-PFF-TSENSOR CURRENT HALL 200A AC/DC |
5,393 | - |
|
Datasheet | - | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | 6.6mV/A | DC ~ 120kHz | ±1% | ±4% | 3V ~ 3.6V | 4µs | 13.5mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS770KCB-150B-PFF-TSENSOR CURRENT HALL 150A AC/DC |
4,043 | - |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 150A | 1 | Ratiometric, Voltage | 13.3mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 125°C | - | - | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS770ECB-200B-PFF-TSENSOR CURRENT HALL 200A AC/DC |
3,135 | - |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | 10mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS770LCB-100B-PFF-TSENSOR CURRENT HALL 100A AC/DC |
2,336 | - |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | 20mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 150°C | - | - | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS770KCB-150U-PFF-TSENSOR CURRENT HALL 150A DC |
2,022 | - |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | DC | Hall Effect, Open Loop | 150A | 1 | Ratiometric, Voltage | 26.7mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 125°C | - | - | Unidirectional | Through Hole | 5-CB Module |
|
|
ACS770ECB-200U-PFF-TSENSOR CURRENT HALL 200A DC |
1,657 | - |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | 20mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | 5-CB Module |
|
|
ACS759LCB-050B-PFF-TSENSOR CURRENT HALL 50A AC/DC |
748 | - |
|
Datasheet | - | 5-CB Formed Leads, PFF | Tube | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | 26.4mV/A | DC ~ 120kHz | ±1% | ±3.5% | 3V ~ 3.6V | 4µs | 13.5mA | -40°C ~ 150°C | - | - | Bidirectional | Through Hole | 5-CB Module |
|
|
ACS770LCB-050U-PFF-TSENSOR CURRENT HALL 50A DC |
690 | - |
|
Datasheet | ACS770 | 5-CB Formed Leads, PFF | Tube | Active | DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | 80mV/A | DC ~ 120kHz | ±1% | ±0.6% | 5V | 4.6µs | 15mA | -40°C ~ 150°C | - | - | Unidirectional | Through Hole | 5-CB Module |
|
T60404N4646X651CURRENT SENSOR, 25A, 3 PRI PINS, |
1,765 | - |
|
Datasheet | - | 9-DIP Module | Box | Active | AC/DC | Closed Loop | 25A | 1 | Ratiometric, Voltage | - | DC ~ 200kHz | ±0.1% | ±0.7% | 4.75V ~ 5.25V | 300ns | 15mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|

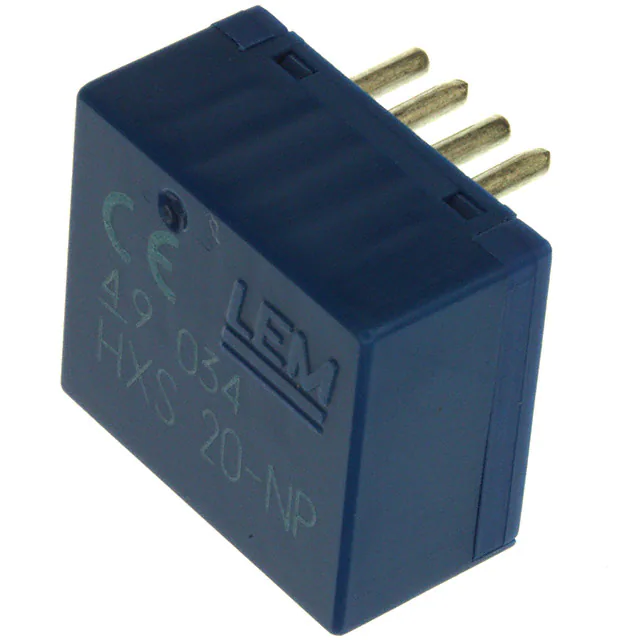

HXS 20-NPCURRENT SENSOR HE/OL 5A,10A,20A |
1,766 |
1+：$9.74400 5+：$8.81120 10+：$8.46720 25+：$8.05600 50+：$7.77568 100+：$7.51904 500+：$7.00312 1000+：$6.81114 |
|
Datasheet | HXS | Module | Tube | Not For New Designs | AC/DC | Hall Effect, Open Loop | 5A, 10A, 20A (Selectable) | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±0.5% | ±1% | 5V | 5µs | 19mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
HXS 50-NPSENSOR CURRENT 12.5A, 25A, 50A |
399 | - |
|
Datasheet | HXS | Module | Tube | Not For New Designs | AC/DC | Hall Effect, Open Loop | 12.5A, 25A, 50A (Selectable) | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±0.5% | ±1% | 5V | 5µs | 19mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|

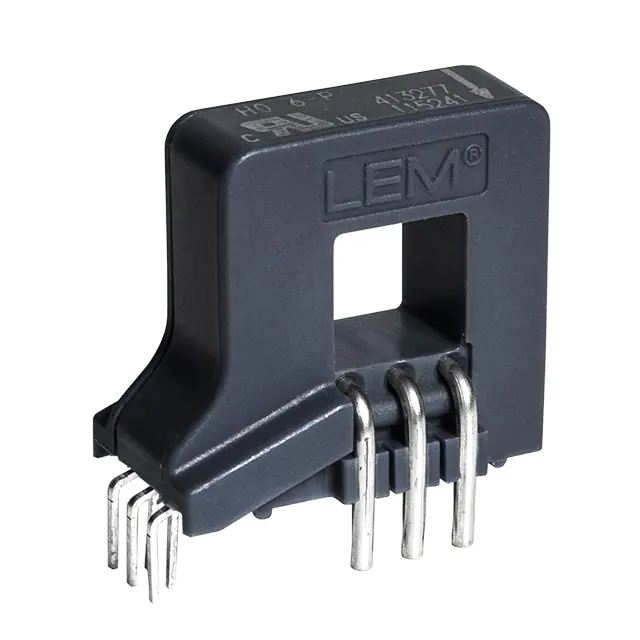

HO 6-PCURRENT SENSOR HE/OL 6A |
8,748 |
1+：$9.72000 5+：$8.79360 10+：$8.45040 25+：$8.04000 50+：$7.76000 300+：$7.14096 600+：$6.93666 |
|
Datasheet | HO-P | Module, Single Pass Through | Tray | Active | AC/DC | Hall Effect, Open Loop | 6A | 1 | Ratiometric, Voltage | - | DC ~ 250kHz | ±0.5% | ±1.4% | 5V | 3.5µs | 25mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
T60404N4646X412CURRENT SENSOR, 100A, 3 PRI PINS |
1,357 | - |
|
Datasheet | - | 9-DIP Module | Box | Active | AC/DC | Closed Loop | 50A, 100A | 1 | Ratiometric, Current | - | DC ~ 200kHz | ±0.1% | ±0.5% | ±11.4V ~ 15.75V | 500ns | 18.5mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
