ADCs/DACs - Special Purpose
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Channels | Resolution (Bits) | Sampling Rate (Per Second) | Data Interface | Voltage Supply Source | Voltage - Supply | Operating Temperature | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX197ACAI+IC DAS 12BIT 100K 28SSOP |
4,948 | - |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Data Acquisition System (DAS) | 8 | 12 b | 100k | Parallel | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount | - | - | 28-SSOP |
|
MAX127BCNG+IC DAS/ADC 12BIT 8K 24DIP |
2,099 | - |
|
Datasheet | - | 24-DIP (0.300", 7.62mm) | Tube | Active | Data Acquisition System (DAS), ADC | 8 | 12 b | 8k | I2C, Serial | Single Supply | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole | - | - | 24-PDIP |
|
|
MAX1270AEAI+IC DAS/ADC/DAC SPECIAL 28-SSOP |
566 |
1+：$45.56000 10+：$37.51040 46+：$34.42382 138+：$32.89234 |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Data Acquisition System (DAS), ADC | 8 | 12 b | 110k | MICROWIRE™, QSPI™, Serial, SPI™ | Single Supply | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount | - | - | 28-SSOP |
|

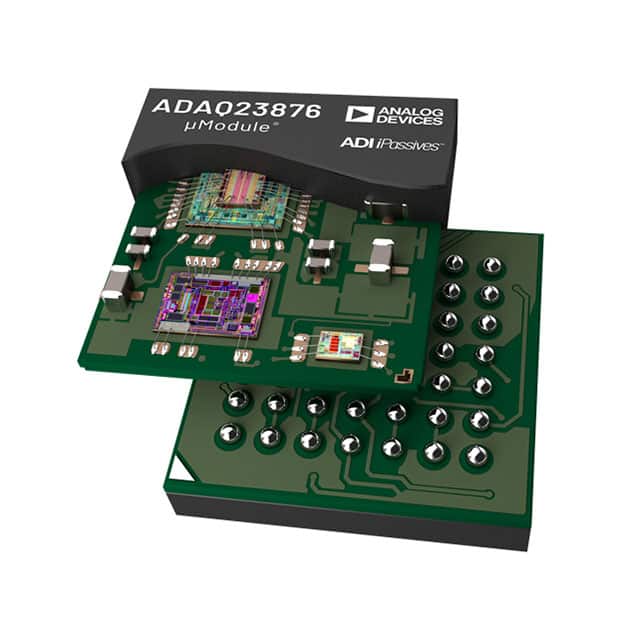

ADAQ23876BBCZ16-BIT, 15MSPS UMODULE |
0 |
1+：$113.63200 14+：$94.23771 28+：$91.11343 |
|
Datasheet | - | 100-FBGA, CSPBGA | Tray | Active | ADC | 1 | 16 b | 15M | LVDS | Analog and Digital, Dual ± | ±1.5V ~ 10V, 5V, 2.5V | -40°C ~ 85°C | Surface Mount | - | - | 100-CSPBGA (9x9) |
|
LTC1294BCSW#PBFIC DAS/ADC 12BIT 46.5K 20SOIC |
3,752 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Data Acquisition System (DAS), ADC | 8 | 12 b | 46.5k | Serial, Parallel | Dual ± | ±5V, 5V | 0°C ~ 70°C | Surface Mount | - | - | 20-SO |
|
MAX197AEWI+IC DAS 12BIT 100K 28SOIC |
2,786 | - |
|
Datasheet | - | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Data Acquisition System (DAS) | 8 | 12 b | 100k | Parallel | Single Supply | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount | - | - | 28-SOIC |
|
|
MAX197AEAI+IC DAS 12BIT 100K 28SSOP |
100 | - |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Data Acquisition System (DAS) | 8 | 12 b | 100k | Parallel | Single Supply | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount | - | - | 28-SSOP |
.jpg)
|
MAX180ACQH+DIC DAS 12BIT 100K 44PLCC |
4,373 | - |
|
Datasheet | - | 44-LCC (J-Lead) | Tube | Active | Data Acquisition System (DAS) | 8 | 12 b | 100k | Parallel | Analog and Digital | 5V, -12V, -15V | 0°C ~ 70°C | Surface Mount | - | - | 44-PLCC (16.59x16.59) |
|
|
AD974ARSZIC DAS 16BIT 200K 28SSOP |
3,695 | - |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Data Acquisition System (DAS) | 4 | 16 b | 200k | Serial | Analog and Digital | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount | - | - | 28-SSOP |
|
MAX186AEPP+IC DAS/ADC 12BIT 133K 20DIP |
299 | - |
|
Datasheet | - | 20-DIP (0.300", 7.62mm) | Tube | Active | Data Acquisition System (DAS), ADC | 8 | 12 b | 133k | MICROWIRE™, QSPI™, Serial, SPI™ | Dual ± | ±5V | -40°C ~ 85°C | Through Hole | - | - | 20-PDIP |
|
AD7891YSZ-2IC DAS 12BIT 500K 44MQFP |
4,377 | - |
|
Datasheet | - | 44-QFP | Tray | Active | Data Acquisition System (DAS) | 8 | 12 b | 500k | Serial, Parallel | Single Supply | 5V | -55°C ~ 105°C | Surface Mount | - | - | 44-MQFP (10x10) |
|
AD9278BBCZIC AAF/ADC/LNA 12B 50M 144CSP |
3,356 | - |
|
Datasheet | - | 144-LFBGA, CSPBGA | Tray | Active | AAF, ADC, Demodulator, LNA, VGA | 8 | 12 b | 50M | SPI | Analog and Digital | 1.7V ~ 1.9V, 2.7V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 144-CSPBGA (10x10) |
|
AD9272BSVZ-80IC AAF/ADC 12BIT 80M 100TQFP |
3,496 | - |
|
Datasheet | - | 100-TQFP Exposed Pad | Tray | Active | AAF, ADC, Crosspoint Switch, LNA, VGA | 8 | 12 b | 80M | Serial | Analog and Digital | 1.8V, 3V | -40°C ~ 85°C | Surface Mount | - | - | 100-TQFP-EP (14x14) |
|
|
AD7874BRZIC DAS 12BIT 116K 28SOIC |
3,821 | - |
|
Datasheet | - | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Data Acquisition System (DAS) | 4 | 12 b | 116k | Parallel | Dual ± | ±5V | -40°C ~ 85°C | Surface Mount | - | - | 28-SOIC |
|
AD7874BNZIC DAS/ADC/DAC SPECIAL 28-PDIP |
21 |
1+：$173.00800 13+：$145.78215 26+：$141.21754 |
|
Datasheet | - | 28-DIP (0.600", 15.24mm) | Tube | Active | Data Acquisition System (DAS) | 4 | 12 b | 116k | Parallel | Dual ± | ±5V | -40°C ~ 85°C | Through Hole | - | - | 28-PDIP |
|
AD7890SQ-10IC DAS 12BIT 117K 24CDIP |
4,016 | - |
|
Datasheet | - | 24-CDIP (0.300", 7.62mm) | Tube | Active | Data Acquisition System (DAS) | 8 | 12 b | 117k | Serial | Single Supply | 5V | -55°C ~ 125°C | Through Hole | - | - | 24-CDIP |
|

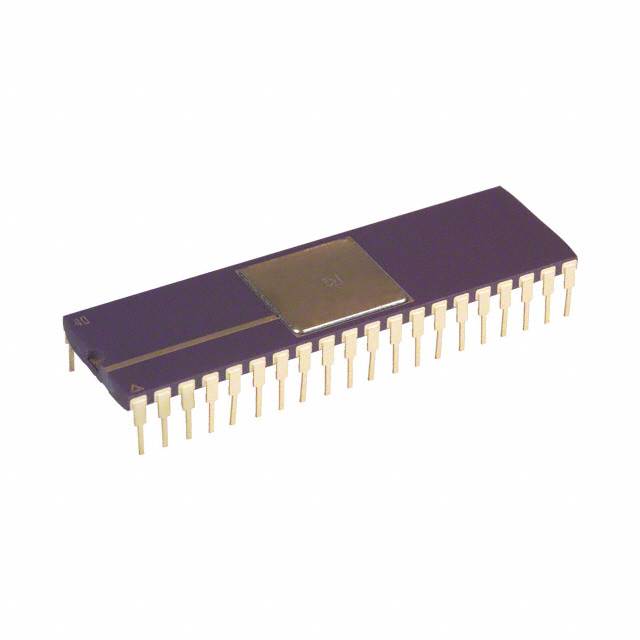

AD2S80AADIC R/D CONV 10/12/14/16B 40CDIP |
1,901 | - |
|
Datasheet | - | 40-CDIP (0.600", 15.24mm) | Tube | Active | R/D Converter | 2 | 10, 12, 14, 16 b | - | Parallel | Dual ± | ±10.8V ~ 13.2V | -40°C ~ 85°C | Through Hole | - | - | 40-CDIP |
|
AD2S82AKPZIC R/D CONV 10/12/14/16B 44PLCC |
3,299 | - |
|
Datasheet | - | 44-LCC (J-Lead) | Tube | Active | R/D Converter | 2 | 10, 12, 14, 16 b | - | Parallel | Dual ± | ±10.8V ~ 13.2V | 0°C ~ 70°C | Surface Mount | - | - | 44-PLCC (16.59x16.59) |
|
|
AD2S80ASDIC R/D CONV 10/12/14/16B 40CDIP |
3,962 | - |
|
Datasheet | - | 40-CDIP (0.600", 15.24mm) | Tube | Active | R/D Converter | 2 | 10, 12, 14, 16 b | - | Parallel | Dual ± | ±10.8V ~ 13.2V | -55°C ~ 125°C | Through Hole | - | - | 40-CDIP |
|
|
AD2S80ATDIC R/D CONV 10/12/14/16B 40CDIP |
4,080 | - |
|
Datasheet | - | 40-CDIP (0.600", 15.24mm) | Bulk | Active | R/D Converter | 2 | 10, 12, 14, 16 b | - | Parallel | Dual ± | ±10.8V ~ 13.2V | -55°C ~ 125°C | Through Hole | - | - | 40-CDIP |
