Analog Front End (AFE)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | package | Series | Packaging | Product Status | Number of Bits | Number of Channels | Power (Watts) | Voltage - Supply, Analog | Voltage - Supply, Digital | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

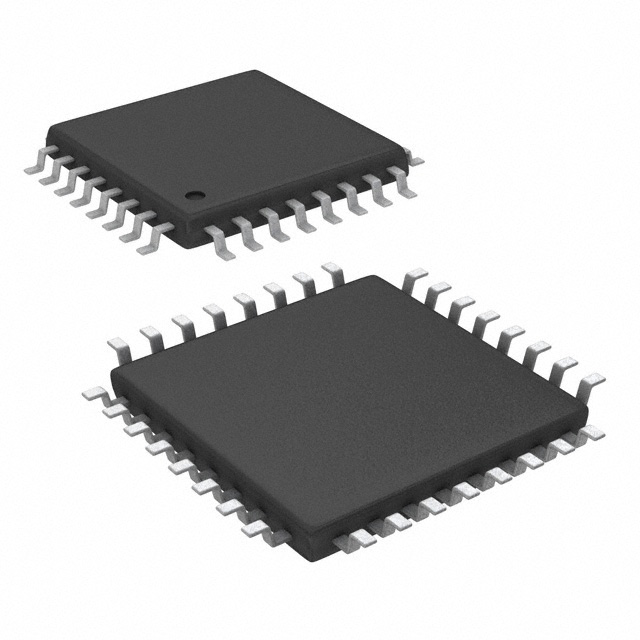

ADS131A04IPBSRIC AFE 24BIT 32-TQFP |
174 |
1+：$9.69600 10+：$7.59360 25+：$7.06720 100+：$6.48888 250+：$6.42234 500+：$6.05880 |
|
Datasheet | 32-TQFP | - | Tape & Reel (TR) | Active | 24 | 4 | - | 3V ~ 5.5V | 1.65V ~ 3.6V | Surface Mount | - | - |
|
|
ADS1292RIPBSRIC AFE 24BIT 32-TQFP |
95 |
1+：$12.30400 10+：$9.72560 25+：$9.08160 100+：$8.38808 |
|
Datasheet | 32-TQFP | - | Tape & Reel (TR) | Active | 24 | 2 | 740 µW | 2.7V ~ 5.25V | 1.7V ~ 3.6V | Surface Mount | - | - |
|

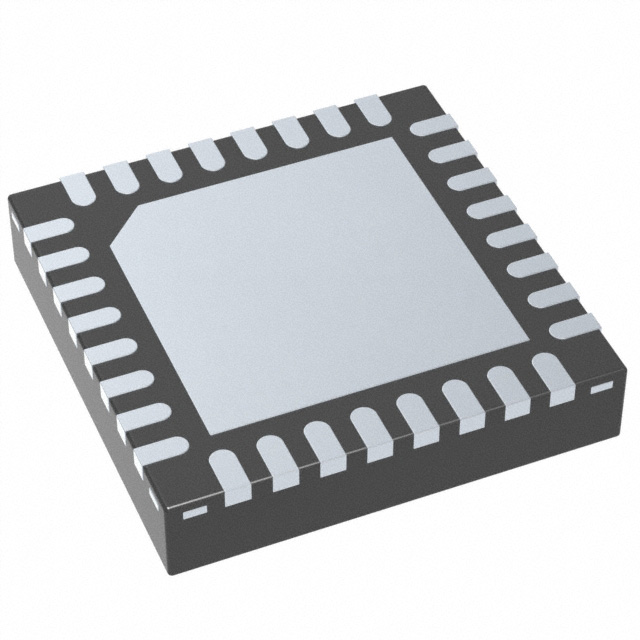

ADS1292IRSMTIC AFE 24BIT 32-VQFN |
451 |
1+：$10.80800 10+：$8.51120 25+：$7.93632 100+：$7.30448 |
|
Datasheet | 32-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | 24 | 2 | 740 µW | 2.7V ~ 5.25V | 1.7V ~ 3.6V | Surface Mount | - | - |
|

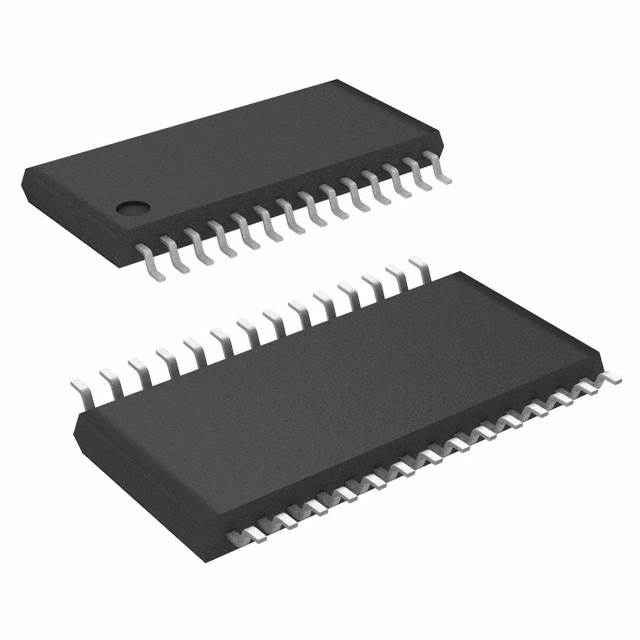

LMP90097MHE/NOPBIC AFE 24BIT 28-TSSOP |
315 |
1+：$15.60000 10+：$12.42560 25+：$11.63296 100+：$10.87888 |
|
Datasheet | 28-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | 24 | 1 | - | 2.85V ~ 5.5V | 2.7V ~ 5.5V | Surface Mount | - | - |
|

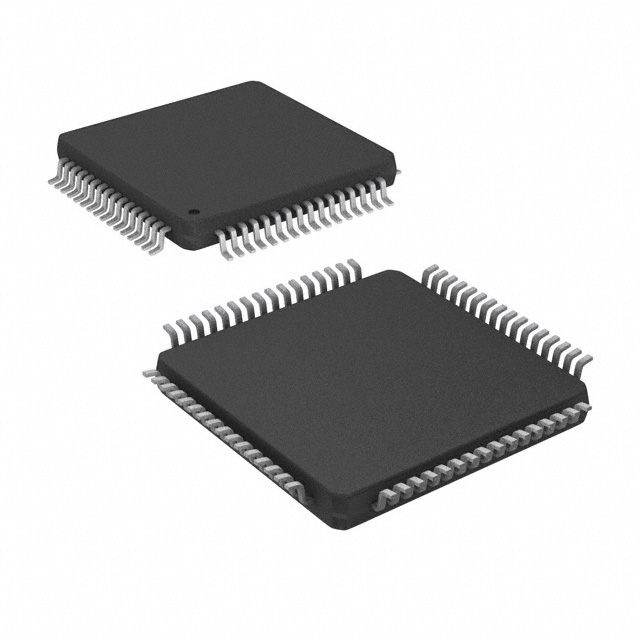

ADS131E08IPAGRIC AFE 16/24BIT 64-TQFP |
2,303 |
1+：$12.52800 10+：$9.91120 25+：$9.25696 100+：$8.55824 |
|
Datasheet | 64-TQFP | - | Tape & Reel (TR) | Active | 16, 24 | 8 | 17.6 mW | 2.7V ~ 5.25V | 1.8V ~ 3.6V | Surface Mount | - | - |
|

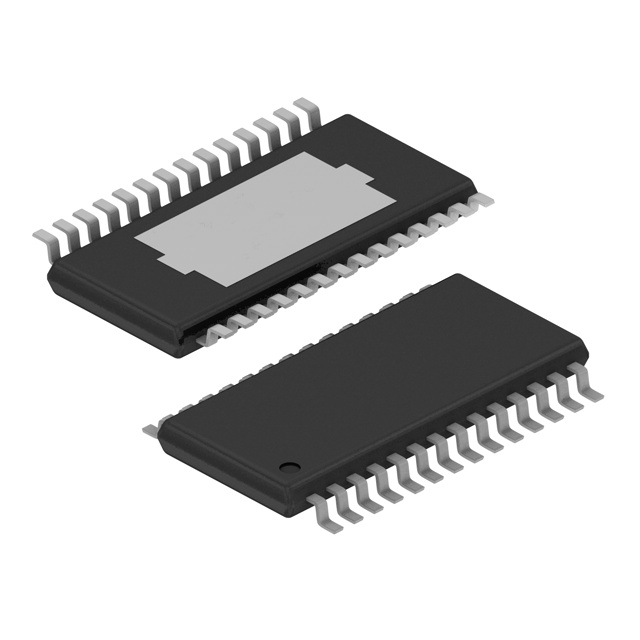

LMP90100MH/NOPBIC AFE 1 CHAN 24BIT 28HTSSOP |
1,805 | - |
|
Datasheet | 28-PowerTSSOP (0.173", 4.40mm Width) | - | Tube | Active | 24 | 1 | - | 2.85V ~ 5.5V | 2.7V ~ 5.5V | Surface Mount | - | - |
|
|
LMP90100MHE/NOPBIC AFE 24BIT 28-HTSSOP |
1,149 |
1+：$19.20000 10+：$15.39680 25+：$14.44736 100+：$13.65248 |
|
Datasheet | 28-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | 24 | 1 | - | 2.85V ~ 5.5V | 2.7V ~ 5.5V | Surface Mount | - | - |
|
AFE4490RHATIC AFE 1 CHAN 22BIT 40VQFN |
529 | - |
|
Datasheet | 40-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | 22 | 1 | - | 2V ~ 3.6V | 2V ~ 3.6V | Surface Mount | - | - |
|
ADS1294RIZXGTIC AFE 4 CHAN 24BIT 64NFBGA |
738 | - |
|
Datasheet | 64-LFBGA | - | Tape & Reel (TR) | Active | 24 | 4 | 10.1 mW | 2.7V ~ 5.5V | 1.65V ~ 3.6V | Surface Mount | - | - |
|
|
ADS1299-4PAGRIC AFE 4 CHAN 24BIT 64TQFP |
157 | - |
|
Datasheet | 64-TQFP | - | Tape & Reel (TR) | Active | 24 | 4 | 24 mW | 4.75V ~ 5.25V | 1.8V ~ 3.6V | Surface Mount | - | - |
