DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KF1001-08P-R0-GL-DFT-01BDIP SW, THT, 8POS, EXTRNDED |
32,000 | - |
|
Datasheet | - | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6SN0063ESWITCH SLIDE DIP SPST 0.025A 24V |
523 | - |
|
Datasheet | A6S-H | Box | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
KF1027A-06P-LG-DFT-01BDIP SW, LOW PROFILE THT, 6POS, E |
30,000 | - |
|
Datasheet | - | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6DR0132GDIP SWITCH |
276 | - |
|
Datasheet | A6D | Bulk | Active | - | - | 30mA | 30VDC | Piano | - | - | - | - | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6K 0027FSWITCH DIP 0.025A 24V |
416 | - |
|
Datasheet | A6K | Box | Active | - | - | 25mA | 24VDC | - | - | - | - | - | - | - | - | No | - | -30°C ~ 80°C |
|
|
A6HR0001ESWITCH SLIDE DIP 0.025A 24V |
173 | - |
|
Datasheet | A6H | Box | Active | - | - | 25mA | 24VDC | Slide (Standard) | - | - | - | - | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|
|
KF1028-06P-TR-DFT-02ADIP SW, HALF PITCH SMD, 6POS, FL |
300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KF1037A-04P-S-ON-01BDIP SW, LOW PROFILE PIANO THT, 4 |
3,000 | - |
|
Datasheet | - | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.280" (7.10mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KF1002-04P-R0-FGL-DFT-02BDIP SW, PIANO TYPE, 4POS, LONG A |
200 | - |
|
Datasheet | - | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KF1027A-08P-LG-DFT-01BDIP SW, LOW PROFILE THT, 8POS, E |
39,000 | - |
|
Datasheet | - | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6R 2002GROTARY DIP SWITCH |
144 | - |
|
Datasheet | A6R | - | Active | - | - | 25mA | 24VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
A6C 0010ESWITCH DIP 0.1A 30V |
436 | - |
|
Datasheet | A6C | Bulk | Active | - | - | 100mA | 30VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6EN0017BSWITCH SLIDE DIP 0.025A 24V |
304 | - |
|
Datasheet | A6E | Box | Active | - | - | 25mA | 24VDC | Slide (Standard) | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6A 1602MROTARY DIP SWITCH |
230 | - |
|
Datasheet | A6A | Bulk | Active | - | - | 100mA | 28VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -10°C ~ 70°C |
|
|
A6C 0010ESWITCH DIP 0.1A 30V |
600 | - |
|
Datasheet | A6C | Box | Active | - | - | 100mA | 30VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6K 0003RSWITCH DIP 0.025A 24V |
124 | - |
|
Datasheet | A6K | Box | Active | - | - | 25mA | 24VDC | - | - | - | - | - | - | - | - | No | - | -30°C ~ 80°C |
|
|
KF1037B-08P-00-ON-01BDIP SW, LOW PROFILE PIANO SMD, 8 |
2,000 | - |
|
Datasheet | - | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.260" (6.60mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
218-12LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
2,761 | - |
|
Datasheet | 218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

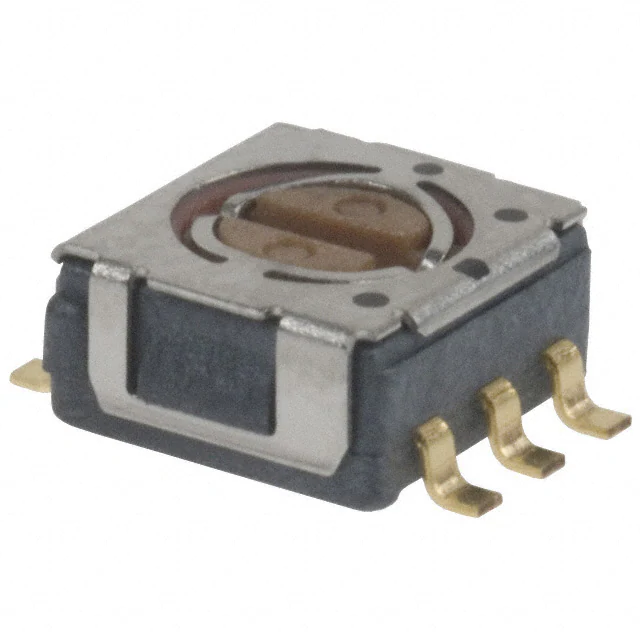

CS-4-14NTBSWITCH ROTARY DIP SP4T 0.1A 16V |
3,405 | - |
|
Datasheet | CS-4 | Tape & Reel (TR) | Active | SP4T | 4 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
DS01C-254-L-03BESWITCH SLIDE DIP SPST 0.025A 24V |
468 | - |
|
Datasheet | DS01-254 | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
