DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFPF04RDDIP SWITCHES / SIP SWITCHES |
2,835 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QFPF01RDDIP SWITCHES / SIP SWITCHES |
2,260 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
210-2LPSSWITCH SLIDE DIP SPST 0.1A 20V |
1,795 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2ESSWITCH SLIDE DIP SPST 0.1A 20V |
1,195 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,591 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2MSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,369 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2ESFSWITCH SLIDE DIP SPST 0.1A 20V |
3,071 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,252 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2MSDSWITCH SLIDE DIP SPST 0.1A 20V |
1,045 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2ESDSWITCH SLIDE DIP SPST 0.1A 20V |
1,471 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,221 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,690 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,788 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
QFPF05RDDIP SWITCHES / SIP SWITCHES |
4,871 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QFPF06RDDIP SWITCHES / SIP SWITCHES |
2,993 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KAG01TGGTSWITCH SLIDE DIP SPDT 0.025A 24V |
3,353 | - |
|
Datasheet | KAG | Tube | Active | SPDT | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|

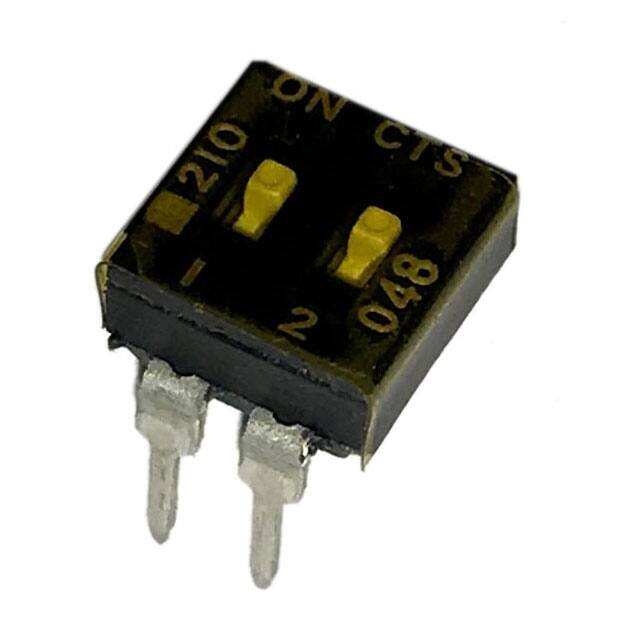

210-2LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,787 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
210-2MSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,877 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
210-2LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
1,024 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
210-2MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
3,488 | - |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
