DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS0308PP4-SSWITCH PIANO DIP SPST 0.025A 24V |
2,411 | - |
|
Datasheet | JS | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.362" (9.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|

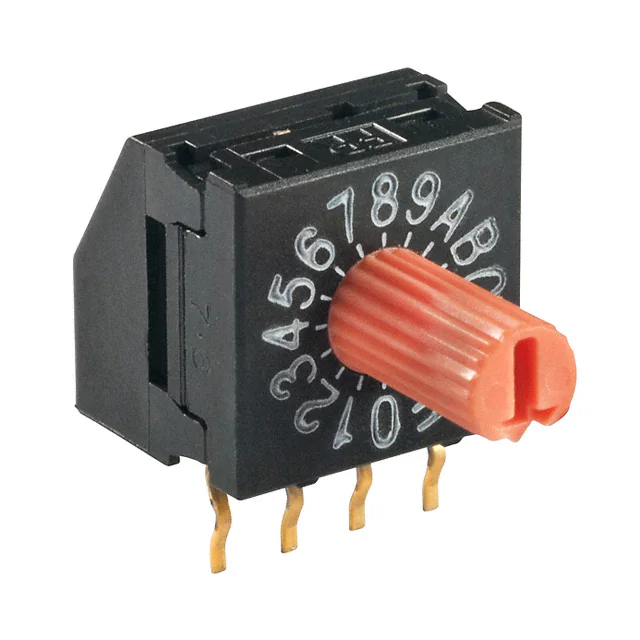

FR01KR16H-06XLSWITCH ROTARY DIP HEX 0.1A 5V |
4,994 | - |
|
Datasheet | FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FD01FR10PULTRA-THIN DIP ROTARY |
3,241 | - |
|
Datasheet | FD01 | Box | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FD01FC16PULTRA-THIN DIP ROTARY |
2,241 | - |
|
Datasheet | FD01 | Box | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FD01FC10PULTRA-THIN DIP ROTARY |
4,483 | - |
|
Datasheet | FD01 | Box | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FD01FR16PULTRA-THIN DIP ROTARY |
2,692 | - |
|
Datasheet | FD01 | Box | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FD01KR10PULTRA-THIN DIP ROTARY |
3,010 | - |
|
Datasheet | FD01 | Box | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.291" (7.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FD01KR16PULTRA-THIN DIP ROTARY |
1,974 | - |
|
Datasheet | FD01 | Box | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.291" (7.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FD02FR10PULTRA-THIN DIP ROTARY |
3,844 | - |
|
Datasheet | FD02 | Box | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FD02FR16PULTRA-THIN DIP ROTARY |
2,755 | - |
|
Datasheet | FD02 | Box | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
