DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS04SGRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
623 | - |
|
Datasheet | EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS02SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
3,539 | - |
|
Datasheet | EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS07SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,726 | - |
|
Datasheet | EDS | Tape & Reel (TR) | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS03SGRSTU04QSWITCH DIP SLIDE SPST 25MA 24V |
0 |
1+：$1.92000 10+：$1.61680 63+：$1.38819 126+：$1.31048 252+：$1.23857 504+：$1.17290 1008+：$1.11358 2520+：$1.04478 5040+：$0.99969 |
|
Datasheet | EDS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDS06SGRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,022 | - |
|
Datasheet | EDS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS04SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,793 | - |
|
Datasheet | EDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS08SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,333 | - |
|
Datasheet | EDS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

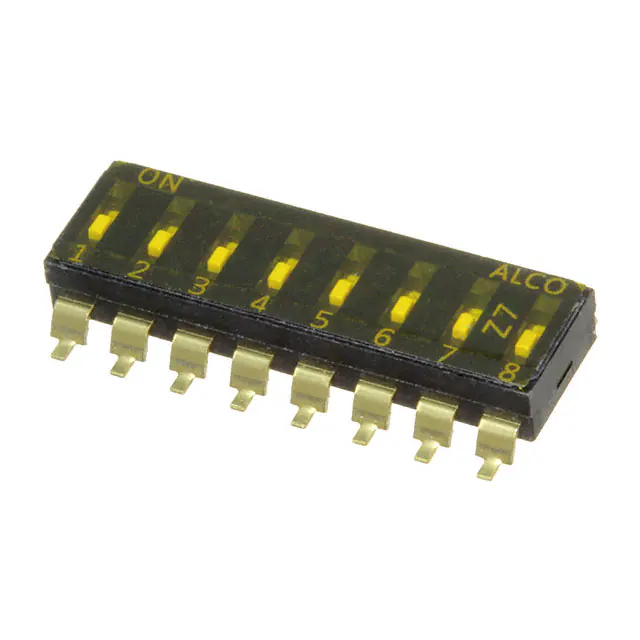

EDS08SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
177 |
1+：$2.92000 10+：$2.44640 25+：$2.26688 100+：$2.01984 250+：$1.87651 |
|
Datasheet | EDS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDS05SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,838 | - |
|
Datasheet | EDS | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS04SNRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
1034+：$1.20058 |
|
Datasheet | EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
