DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

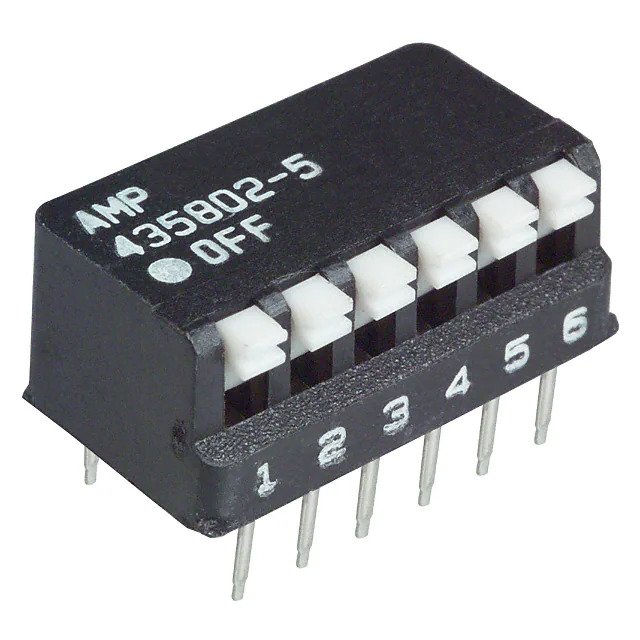

5435802-5SWITCH PIANO DIP SPST 0.025A 24V |
3,366 | - |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
TDS10SGRNTU04SWITCH SLIDE DIP SPST 0.025A 24V |
1,478 | - |
|
Datasheet | TDS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
9-435626-2SW ROCKER DIP SPST 0.025A 24V |
1,133 | - |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

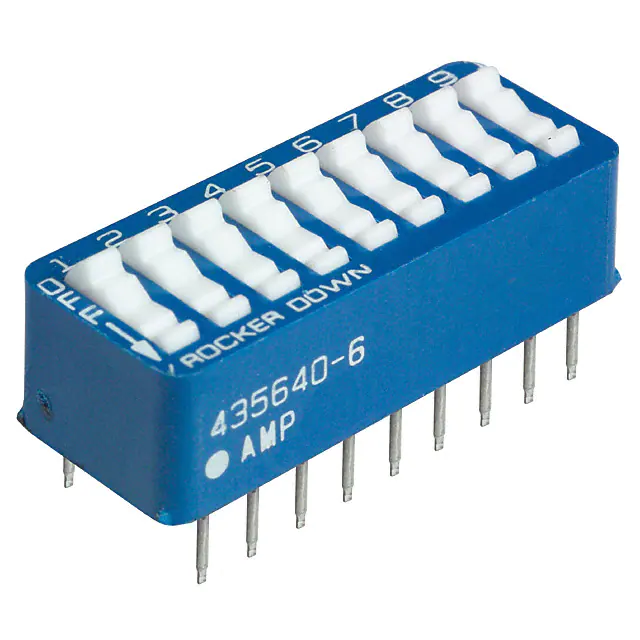

5435640-6SWITCH ROCKER DIP SPST 0.06A 5V |
2,068 | - |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 9 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
1-5435802-7SWITCH PIANO DIP SPST 0.025A 24V |
3,814 | - |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
1-1825057-0SWITCH STANDARD DIP SPST |
4,231 | - |
|
Datasheet | ADE | Tape & Reel (TR) | Active | SPST | 12 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

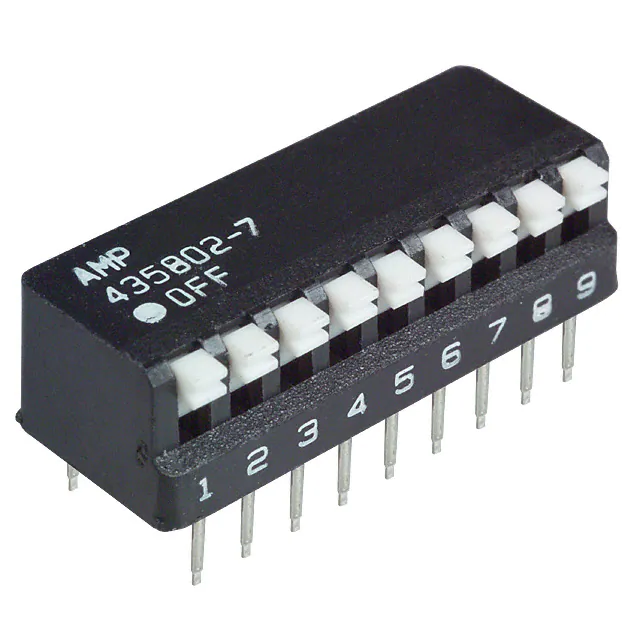

5435802-7SWITCH PIANO DIP SPST 0.025A 24V |
1,600 | - |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
2-5435668-8SWITCH ROCKER DIP SPST 0.06A 5V |
4,446 | - |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 8 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

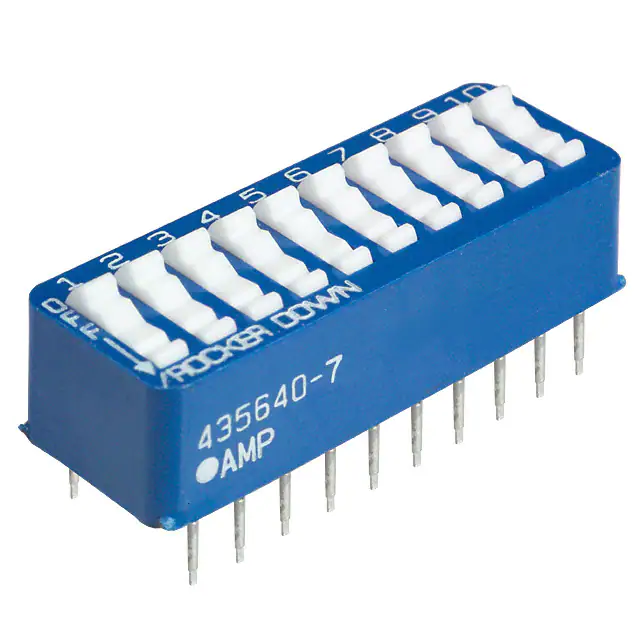

5435640-7SWITCH ROCKER DIP SPST 0.06A 5V |
943 | - |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 10 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
4-5435640-0SWITCH ROCKER DIP SPST 0.06A 5V |
3,266 | - |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 9 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
